4-Cylinder Engine Model

Connector Connecting to
No. Pole Color Area No. Name
B4 4 Gray B-2   AT dropping resistor
B6 2 Brown B-2   ABS front sensor RH (Outback model)
2 Gray B-2   ABS front sensor RH (Except model)
B7 6 Black B-2   Cruise control actuator
B8 5 Gray B-3   Front wiper motor
B10 2 Brown B-2   A/C pressure switch
B11 20 Black B-3 T4 Transmission (AT)
B12 12 Black B-3 T3
B14 1 Black B-3   Starter (Magnet)
B15 2 Brown B-3   ABS front sensor LH (Outback model)
2 Gray B-3   ABS front sensor LH (Except model)
B16 2 Gray B-3   Brake fluid level switch
B17 3 Black B-2   Vehicle speed sensor (MT)
B18 6 Black B-2   Front oxygen (A/F) sensor
B19 4 Gray B-3 T5 Rear oxygen sensor cord
B20 6 (1) B-2   Engine wiring harness
B21 20 Gray B-2 E2 Engine wiring harness
B22 16 Brown B-2 E3
B24 2 Gray B-3 T1 Back-up light switch (MT)
B25 2 Brown B-3 T2 Neutral position switch (MT)
B204 1 Black B-2   Security horn
(1) Non-colored

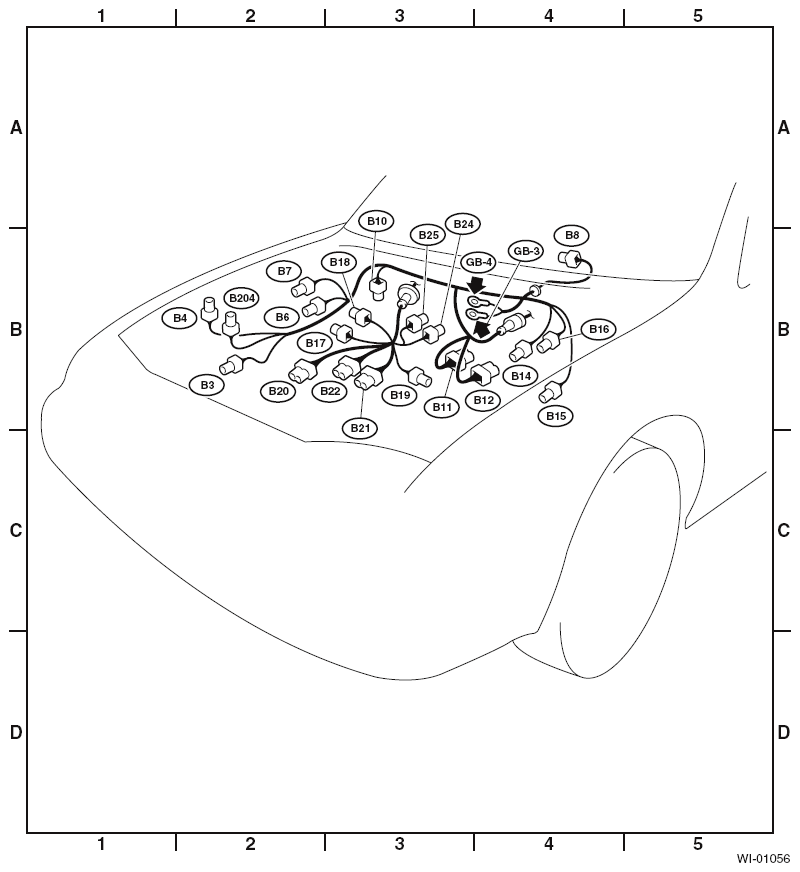

Fig 1: Bulkhead Wiring Harness (In Engine Room) Location - 4 Cylinder Engine Model
G11887854Courtesy of SUBARU OF AMERICA, INC.
