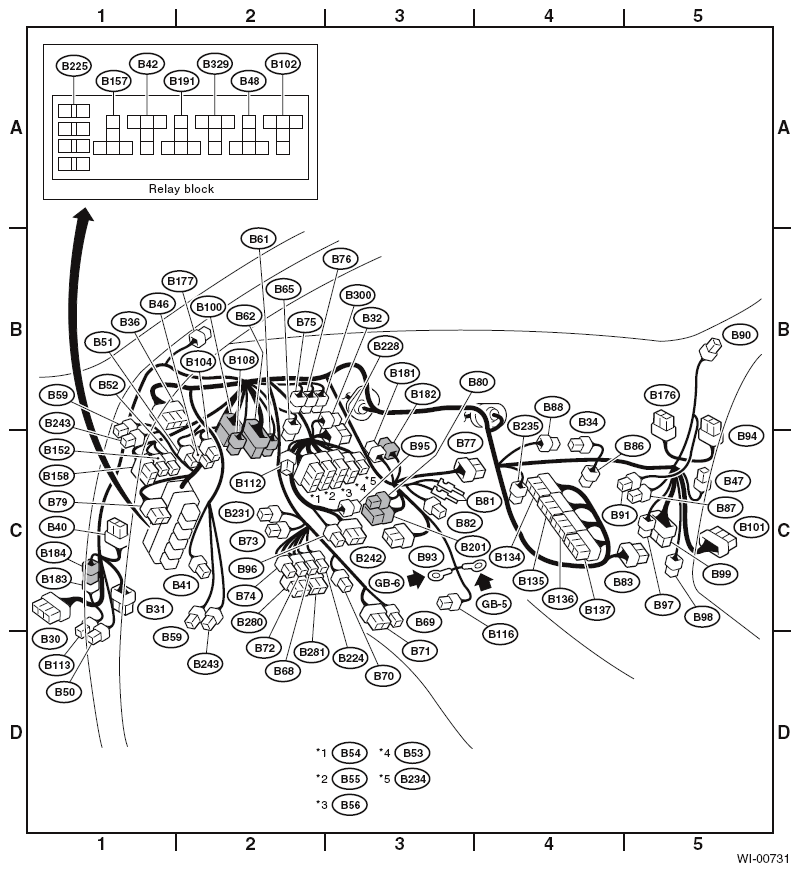

| B30 |
24 |
|
C-1 |
D1 |
Front door cord LH |
| B31 |
12 |
Yellow |
D-1 |
AB1 |
SRS (Airbag) harness |
| B32 |
3 |
Black |
B-2 |
|
Turn & hazard module |
| B34 |
2 |
Black |
B-4 |
|
Diode (Key wiring) |
| B36 |
66 |
|
B-1 |
M |
Instrument panel wiring harness (SMJ) |
| B40 |
16 |
|
C-1 |
|
Data link connector |
| B41 |
2 |
|
C-1 |
|
Power window circuit breaker |
| B42 |
5 |
Black |
A-1 |
|
Power window relay (Relay block) |
| B46 |
4 |
Green |
C-1 |
|
Fuel pump relay |
| B47 |
6 |
Brown |
C-4 |
|
Main relay |
| B48 |
5 |
Black |
A-2 |
|
Front fog light relay (Relay block) |
| B50 |
4 |
Black |
D-1 |
|
Blower relay |
| B51 |
8 |
|
C-1 |
|
F/B |
| B52 |
7 |
|
B-1 |
|
| B53 |
12 |
Blue |
B-2 |
|
Shield joint connector (AT) (ABS) |
| B53 |
12 |
Black |
B-2 |
|
Shield joint connector (AT) (VDC) |
| B54 |
24 |
|
C-2 |
|
Transmission control module |
| B55 |
24 |
Gray |
C-2 |
|
| B56 |
24 |
Green |
C-2 |
|
Transmission control module (VDC) |
| B59 |
5 |
|
C-2 |
|
Interrupt relay (Security) (With Onstar) |
| B59 |
6 |
|
B-1 |
|
Interrupt relay (Security) (Without Onstar) |
| B61 |
8 |
|
B-2 |
F44 |
Front wiring harness |
| B61 |
8 |
|
B-2 |
F44 |
Front wiring harness (VDC) |
| B62 |
20 |
|
B-2 |
F45 |
Front wiring harness (ABS) |
| B62 |
32 |
Blue |
B-2 |
F45 |
Front wiring harness (VDC) |
| B65 |
4 |
Black |
B-2 |
|
Stop & brake switch (With cruise control) |
| B68 |
5 |
Black |
C-2 |
|
Cruise control sub switch |
| B69 |
4 |
|
D-2 |
|
Combination switch |
| B70 |
18 |
|
C-2 |
|
| B71 |
17 |
|
C-2 |
|
| B72 |
4 |
Blue |
C-2 |
|
Ignition switch |
| B73 |
2 |
|
C-2 |
|
Key lock solenoid |
| B74 |
2 |
Black |
C-2 |
|
Key warning switch |
| B75 |
2 |
Green |
B-3 |
B76 |
Test mode connector |
| B76 |
2 |
Green |
B-3 |
B75 |
| B77 |
10 |
Brown |
B-3 |
|
Mode actuator |
| B79 |
14 |
Gray |
C-1 |
|
Check connector |
| B80 |
8 |
|
C-2 |
i20 |
Instrument panel wiring harness |
| B81 |
1 X 2 |
|
C-3 |
|
Diagnosis terminal (Ground) |
| B82 |
8 |
|
C-3 |
|
Diagnosis connector |
| B83 |
20 |
|
C-4 |
|
Shield & sensor ground joint connector (E/G) |
| B86 |
4 |
|
B-4 |
|
Blower motor resistor |
| B87 |
2 |
|
C-4 |
|
Blower motor |
| B88 |
3 |
|
B-3 |
|
Evaporator thermoswitch |
| B90 |
6 |
|
B-5 |
R50 |
Roof cord (Without Onstar) |
| B90 |
8 |
|
B-5 |
R50 |
Roof cord (With Onstar) |
| B91 |
6 |
Black |
C-4 |
|
FRESH/RECIRC actuator |
| B93 |
18 |
|
C-2 |
|
Security control module |
| B94 |
20 |
Black |
B-4 |
|
Cruise control module |
| B95 |
4 |
|
C-2 |
|
Diode (DRL & Onstar) |
| B96 |
8 |
Black |
C-2 |
|
Daytime running light control module |
| B97 |
8 |
|
C-4 |
R1 |
Rear wiring harness |
| B98 |
4 |
|
C-4 |
R2 |
| B99 |
32 |
|
C-4 |
R3 |
| B100 |
16 |
|
B-2 |
F2 |
Front wiring harness |
| B101 |
24 |
|
C-4 |
D11 |
Front door cord RH |
| B102 |
5 |
Black |
A-2 |
|
Daytime running light relay (Relay block) |
| B104 |
4 |
|
B-1 |
|
Seat heater/rear accessory power supply relay |
| B108 |
8 |
|
B-2 |
F46 |
Front wiring harness (ABS) |
| B108 |
6 |
|
B-2 |
F46 |
Front wiring harness (VDC) |
| B112 |
2 |
Black |
C-2 |
|
Diode (DRL) |
| B113 |
2 |
|
C-1 |
D50 |
Front door cord LH |
| B116 |
6 |
|
C-3 |
|
Select lever illumination light (AT) |
| B123 |
2 |
Black |
C-4 |
R48 |
Rear wiring harness (Mcintosh audio) |
| B134 |
22 |
|
C-3 |
|
Engine control module |
| B135 |
28 |
|
C-3 |
|
| B136 |
24 |
|
C-3 |
|
| B137 |
31 |
|
C-4 |
|
| B152 |
12 |
|
B-1 |
|
F/B |
| B157 |
5 |
Black |
A-1 |
|
Ignition relay (Relay block) |
| B158 |
10 |
Gray |
C-1 |
|
F/B |
| B176 |
18 |
|
B-4 |
|
Keyless entry control module |
| B177 |
2 |
|
B-1 |
|
Wiper deicer |
| B181 |
1 |
|
C-2 |
B182 |
Fan ground joint connector |
| B182 |
1 |
|
C-2 |
B181 |
Fan ground joint connector |
| B183 |
1 |
|
C-1 |
B184 |
Joint connector (Keyless entry) |
| B184 |
1 |
|
C-1 |
B183 |
| B191 |
5 |
Black |
A-1 |
|
Wiper deicer relay (Relay block) |
| B192 |
4 |
|
C-2 |
|
Wiper deicer timer |
| B201 |
10 |
|
C-2 |
i40 |
Instrument panel wiring harness |
| B224 |
2 |
|
C-2 |
|
Key switch light |
| B225 |
8 |
Black |
A-1 |
|
Fuse (Relay block) |
| B228 |
15 |
|
B-2 |
|
OP connector |
| B231 |
4 |
|
C-2 |
|
Steering angle sensor (VDC) |
| B234 |
6 |
|
C-2 |
|
Joint connector (VDC) |
| B235 |
6 |
Black |
C-3 |
|
Air mix actuator |
| B242 |
10 |
|
C-2 |
|
Daytime running light control module |
| B243 |
5 |
Black |
B-1 |
|
Security relay (With Onstar) |
| |
6 |
Black |
B-1 |
|
Security relay (Without Onstar) |
| B280 |
20 |
Gray |
C-2 |
|
Integrated module |
| B281 |
16 |
Blue |
C-2 |
|
Integrated module |
| B300 |
6 |
|
C-2 |
|
Line end check connector |
| B329 |
5 |
|
A-1 |
|
Onstar relay (Relay block) |
