Diagnostic Charts

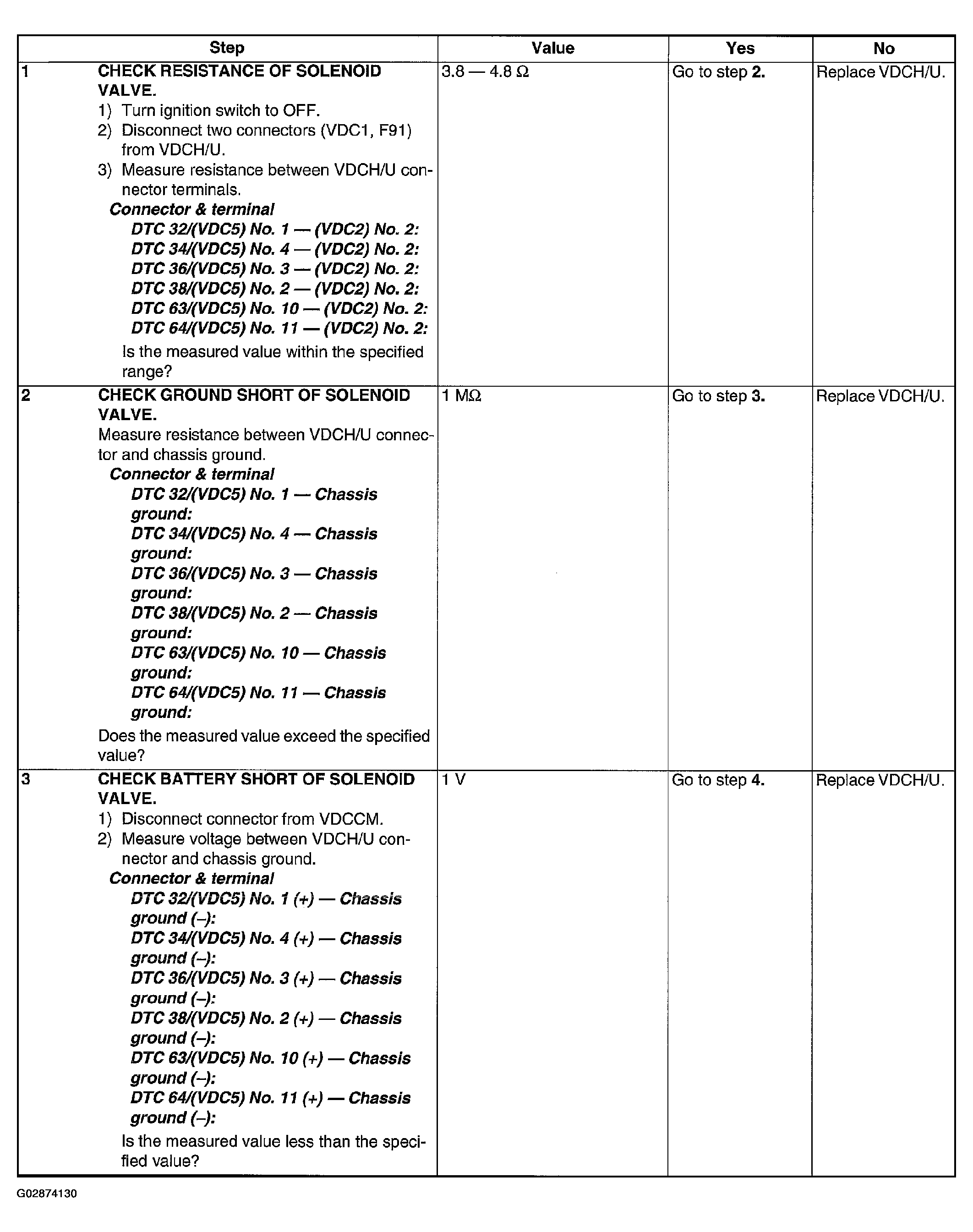

Fig 1: Diagnostics Chart - (Steps 1 To 3)
G02874130Courtesy of SUBARU OF AMERICA, INC.

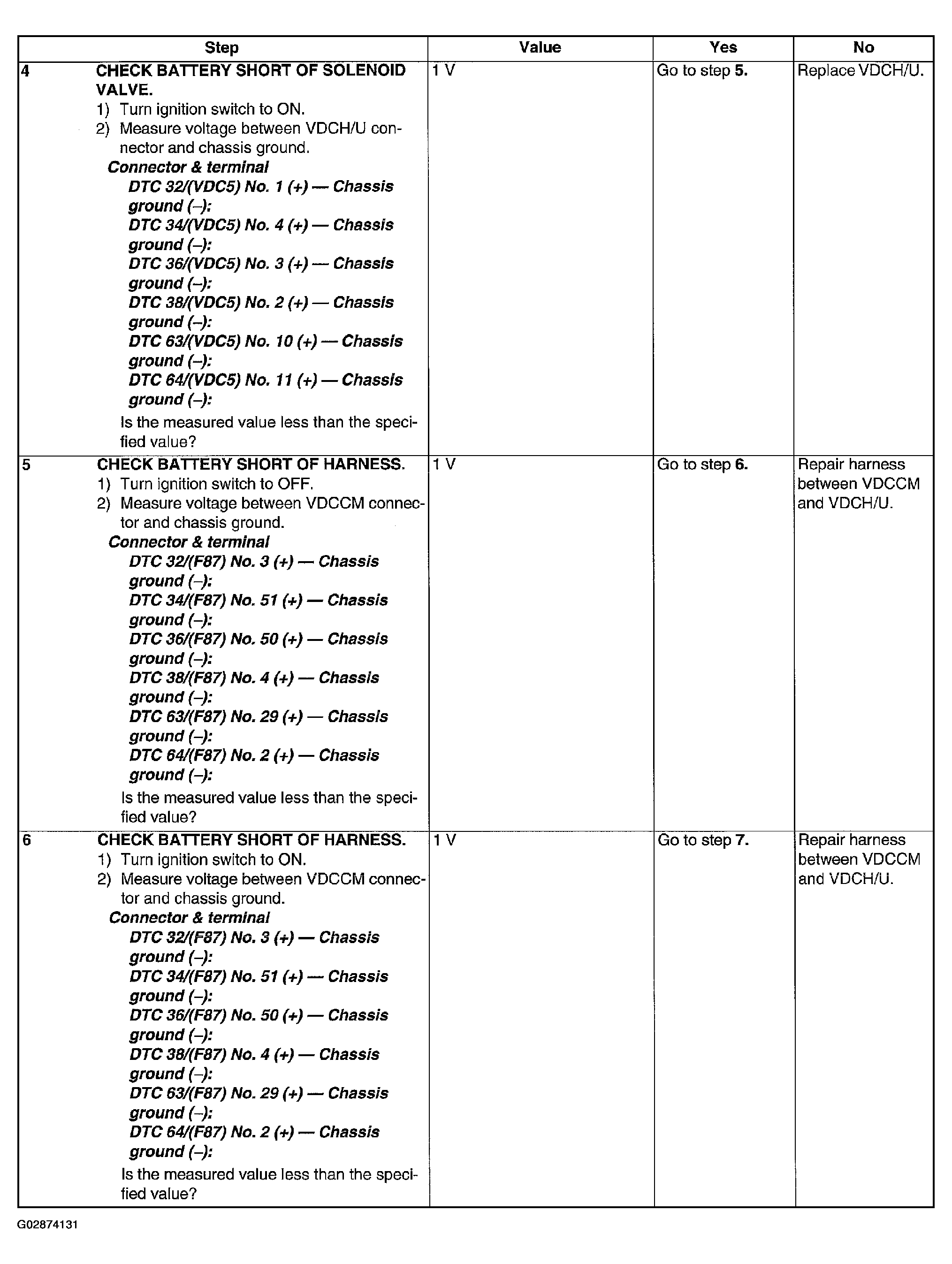

Fig 2: Diagnostics Chart - (Steps 4 To 6)
G02874131Courtesy of SUBARU OF AMERICA, INC.

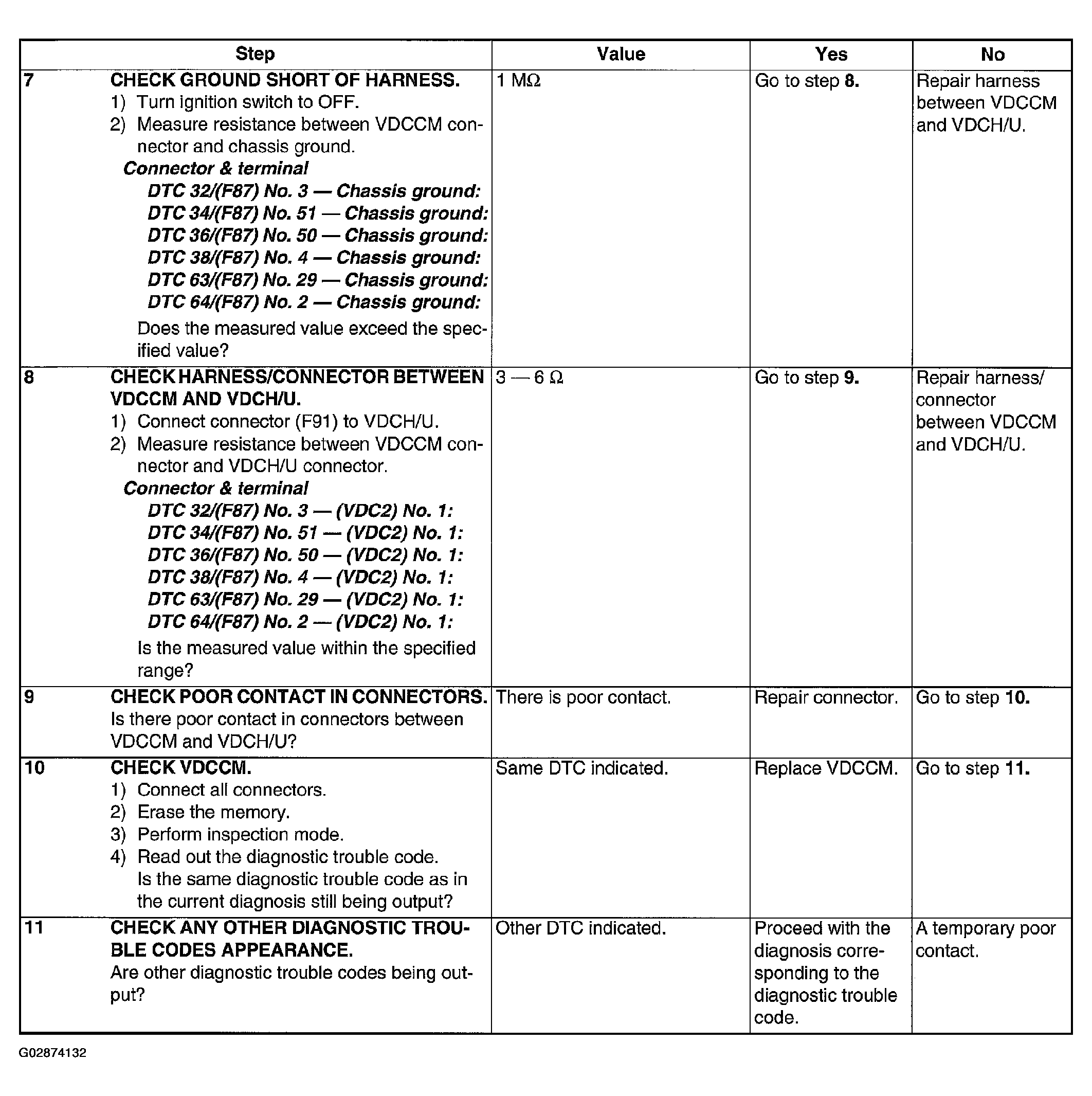

Fig 3: Diagnostics Chart - (Steps 7 To 11)
G02874132Courtesy of SUBARU OF AMERICA, INC.
