Diagnostic Procedures:

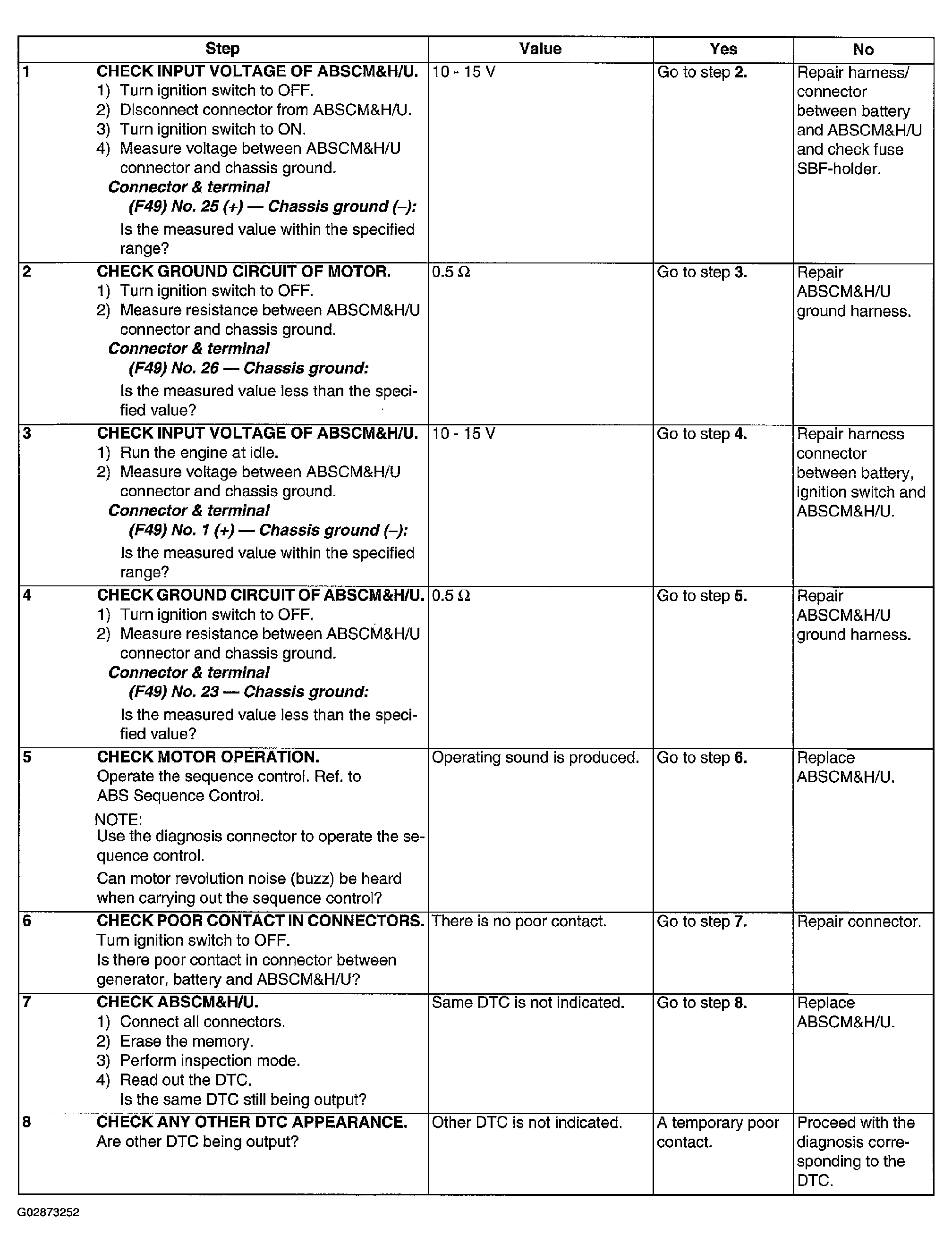

Fig 1: DTC 52: Abnormal Motor And/Or Motor Relay Diagnostic Chart (Steps 1 - 8)

G02873252

Courtesy of SUBARU OF AMERICA, INC.
