Sunroof Switch: Removal

  1. Disconnect ground cable from battery.
  2. Remove spot light lens (A) and sunroof switch mounting screw (B).

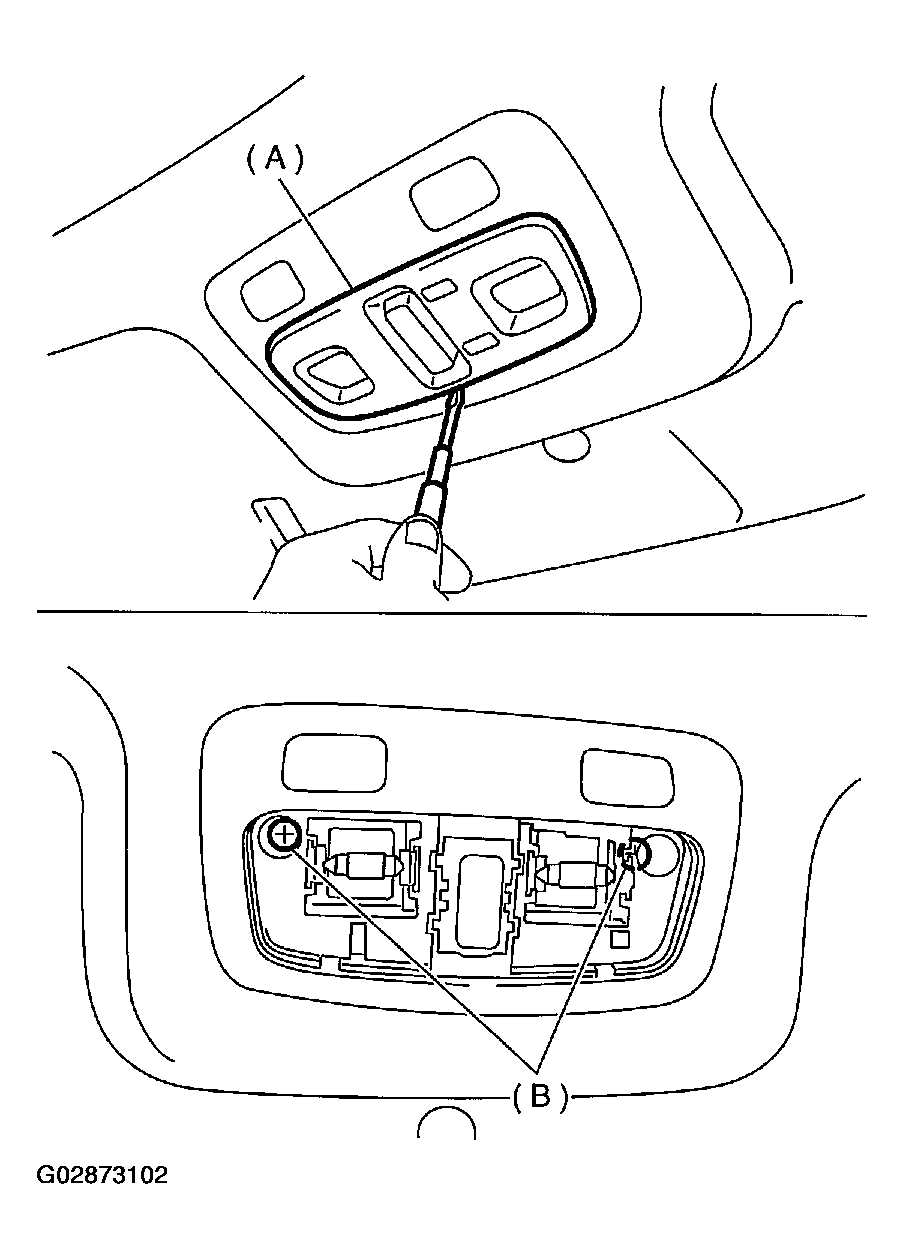

    Fig 1: Removing Spot Light Lens & Sunroof Switch Mounting Screw
    G02873102Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect harness connectors and remove sunroof switch.
