Alignment Of Height Between Sunroof Lid And Roof Panel

Loosen sunroof lid installation nuts and then adjust height by adding (max: two pieces) or extracting (max: one piece) shims (B) (standard: one piece) between sunroof lid (A) and body.

Difference in height between sunroof lid and roof panel: L

1. L:  2.0+/-0.5 mm (0.079+/-0.020 in)

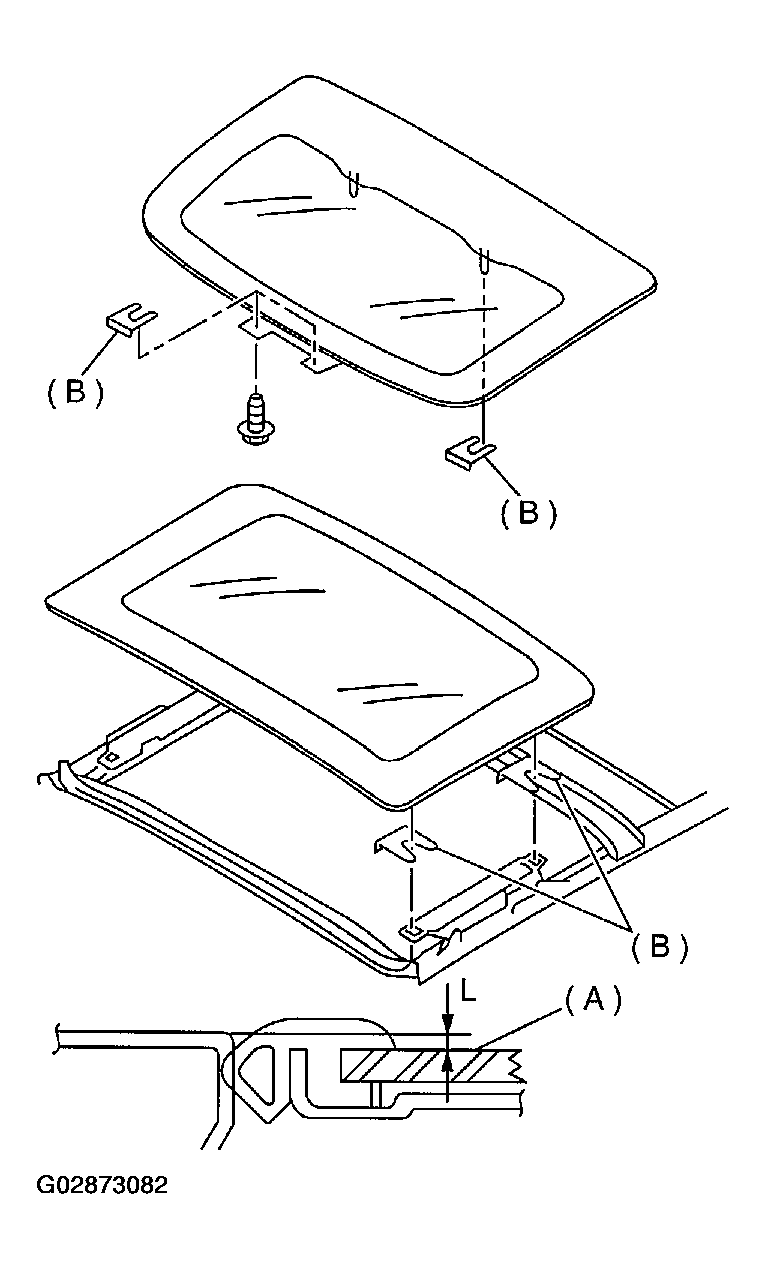

Fig 1: Adjusting Height Between Sunroof Lid & Roof Panel

Courtesy of SUBARU OF AMERICA, INC.
