Wagon (Rear)

  1. Remove rear sunroof frame.

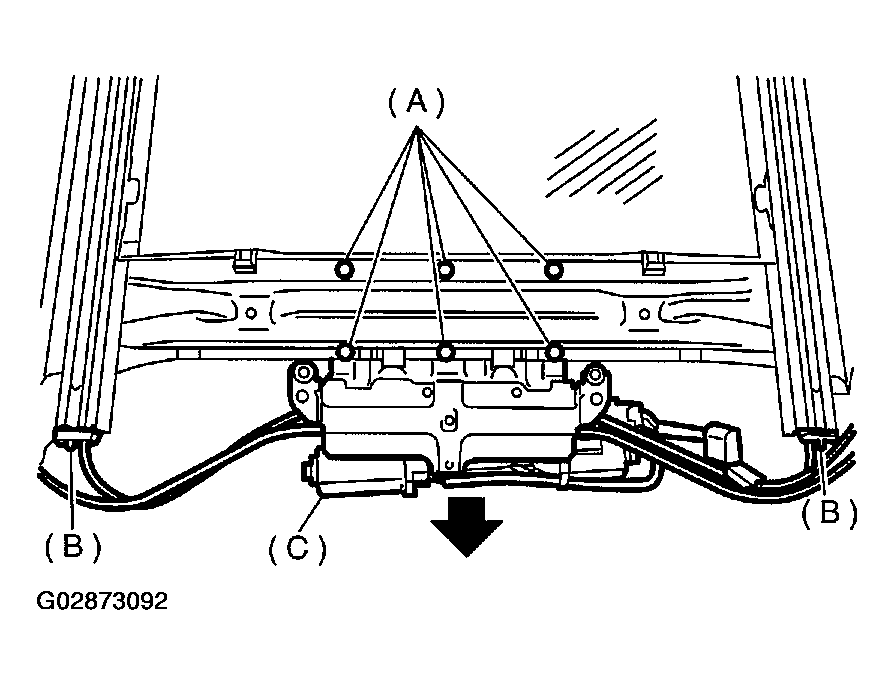

  2. Remove sunroof motor bracket mounting screws (A).
  3. Remove rail stoppers (B) then pull the motor assembly (C) in the direction shown in the figure.
    Fig 1: Removing Sunroof Motor Bracket Mounting Screws
    G02873092Courtesy of SUBARU OF AMERICA, INC.

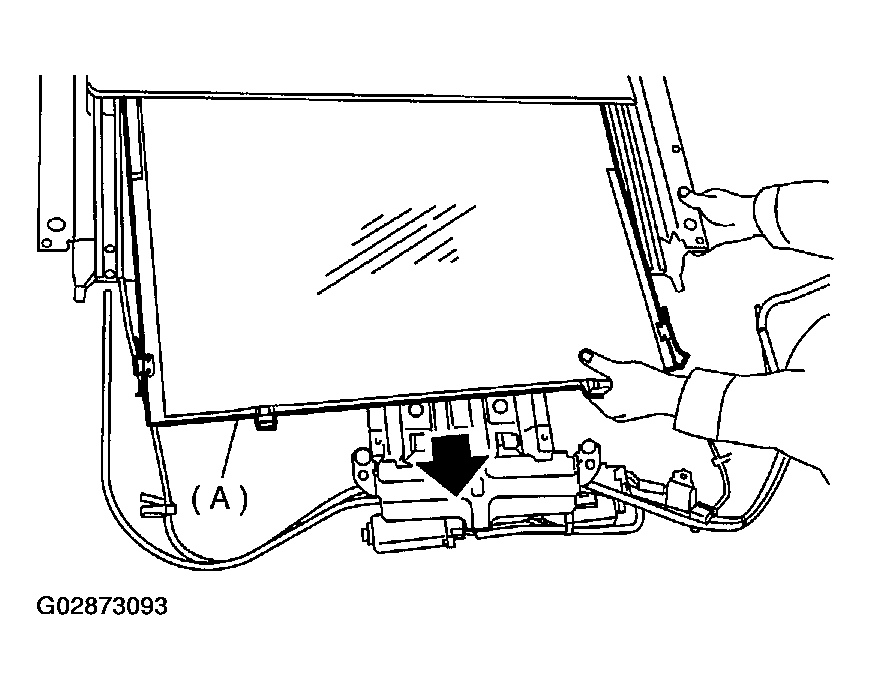

  4. Pull out the sunshade (A) from sunroof frame.
    Fig 2: Removing Sunshade From Sunroof Frame
    G02873093Courtesy of SUBARU OF AMERICA, INC.
