Torsion Bar

  1. Open trunk lid.
  2. Using special tool, remove torsion bar from hinge link.
    1. ST 927780000 REMOVER
    CAUTION: During removal and installation, carefully handle torsion bar. It will generate reactive force.

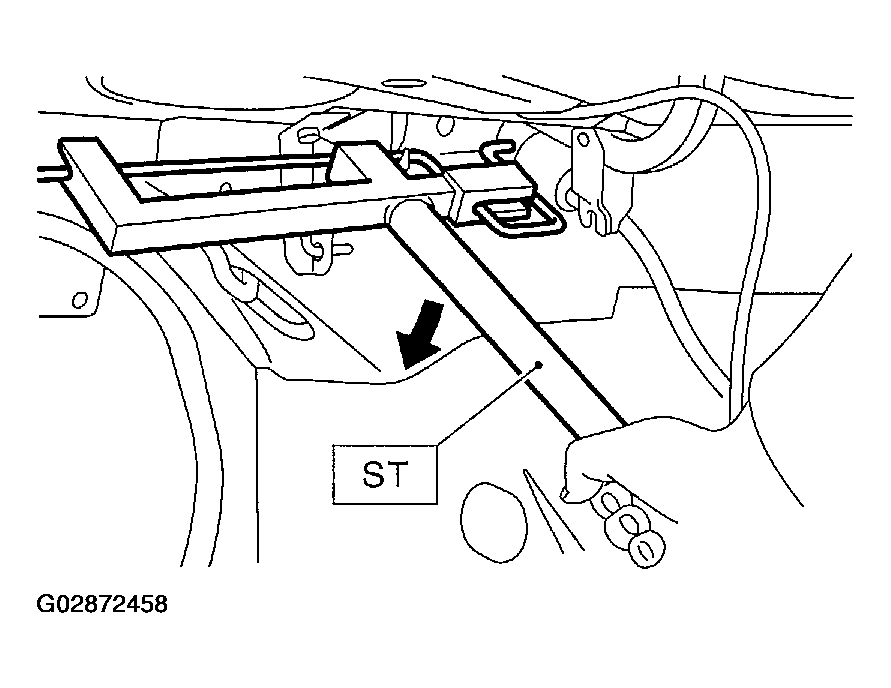

    Fig 1: Removing Torsion Bar From Hinge Link Using Special Tool
    G02872458Courtesy of SUBARU OF AMERICA, INC.
  3. Remove right/left torsion bars.
    CAUTION: After the torsion bar is removed, the trunk lid will slam shut. Be careful not to get hit by the trunk lid.
