ONSTAR(R) Led Does Not Operate: Diagnosis:

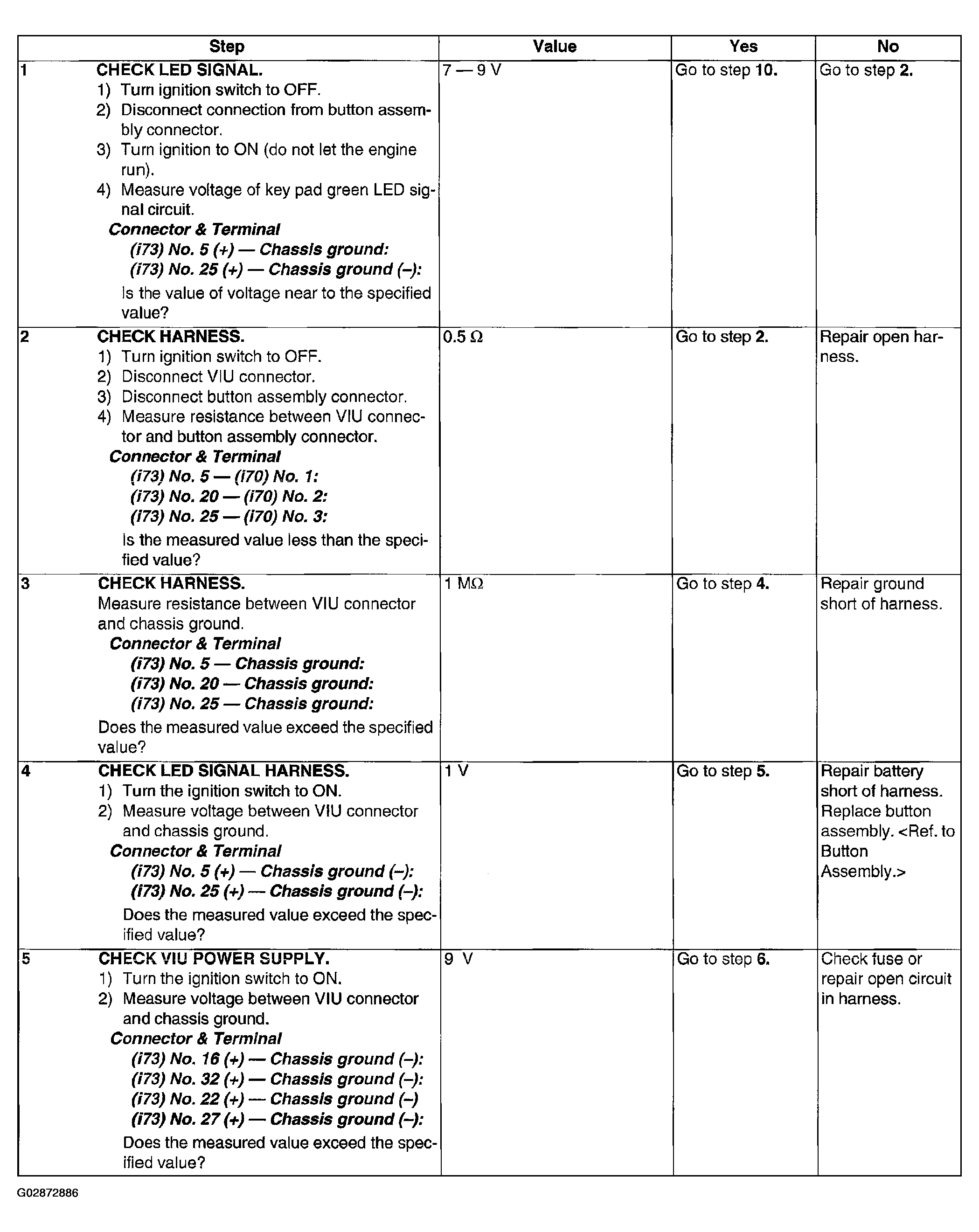

Fig 1: OnStar(R) Led Does Not Operate Diagnosis Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

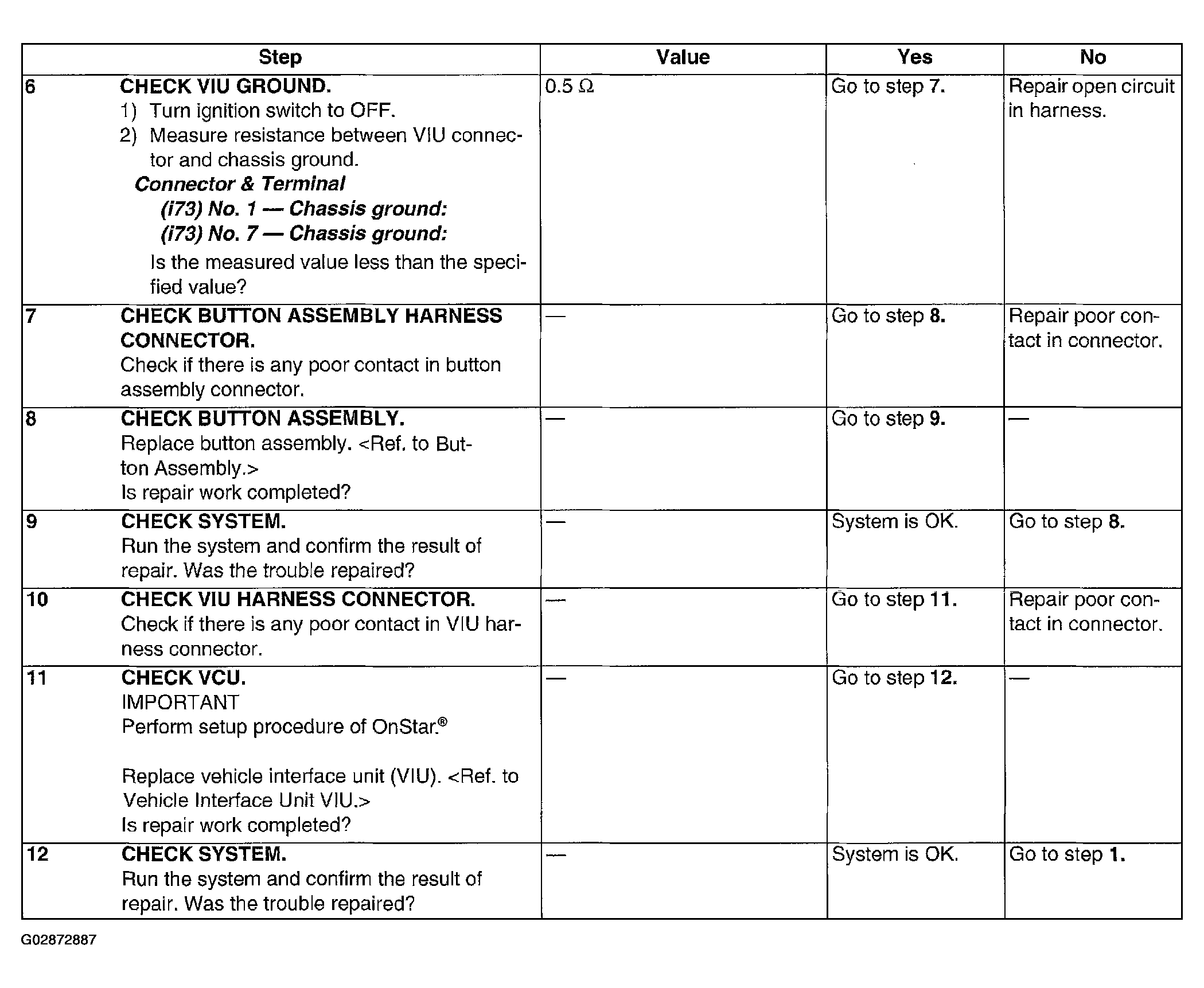

Fig 2: OnStar(R) Led Does Not Operate Diagnosis Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
