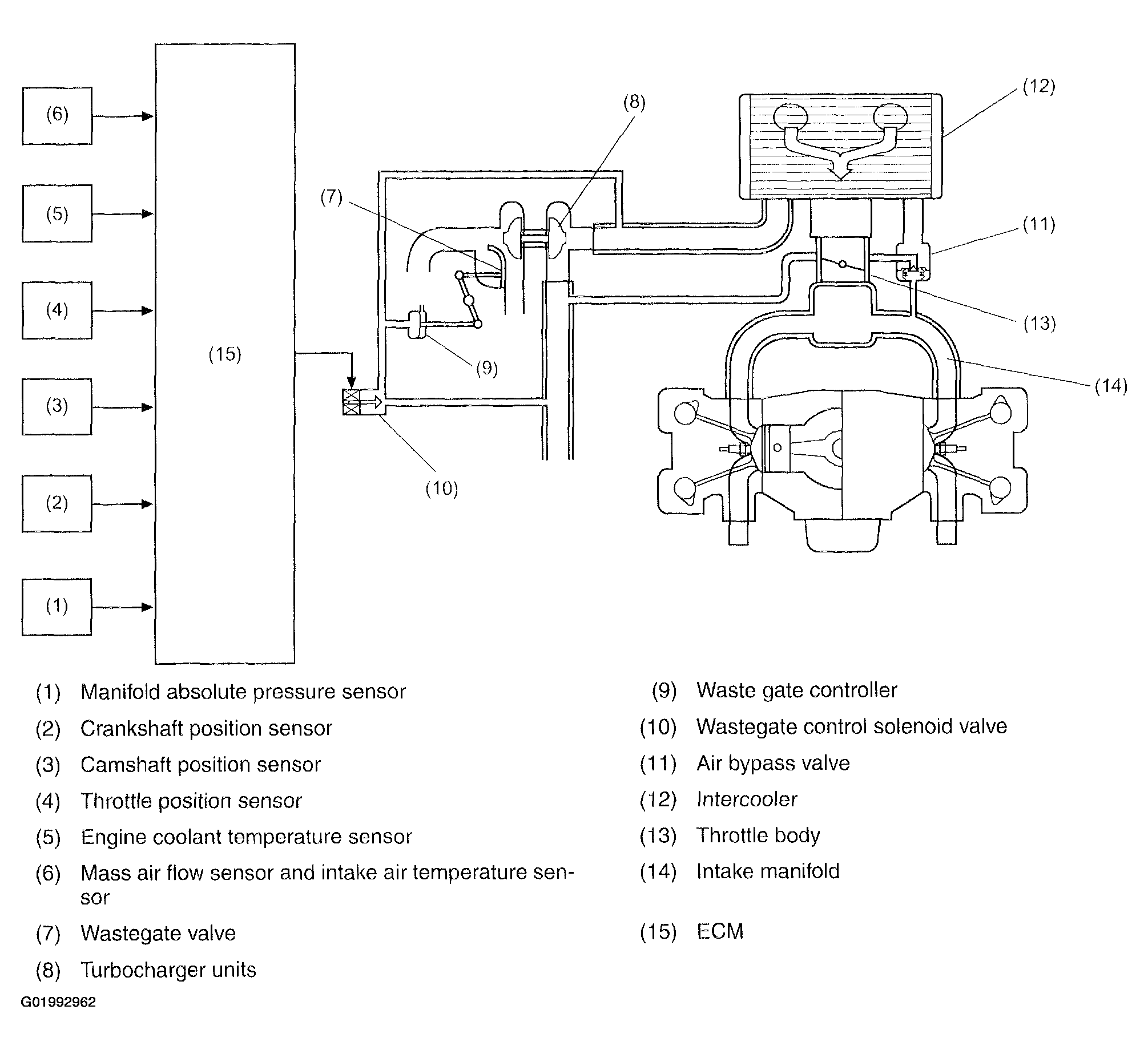

Turbocharger System: General
- The turbocharger system consists of a water-cooled turbocharger, air-cooled intercooler, wastegate control solenoid valve, etc.
- The outlet side turbine, rotated by exhaust gas pressure, rotates the inlet side turbine.
- As a result, the inlet side turbine compresses the intake air before it is delivered to the intake manifold.
- This turbocharger system controls the supercharging pressure according to changes in the atmospheric pressure. Even at a high altitude, therefore, the system offers stable performance without being affected by variations in atmospheric pressure.
Courtesy of SUBARU OF AMERICA, INC.
