Water Temperature Gauge: Inspection

Measure the water temperature gauge resistance.

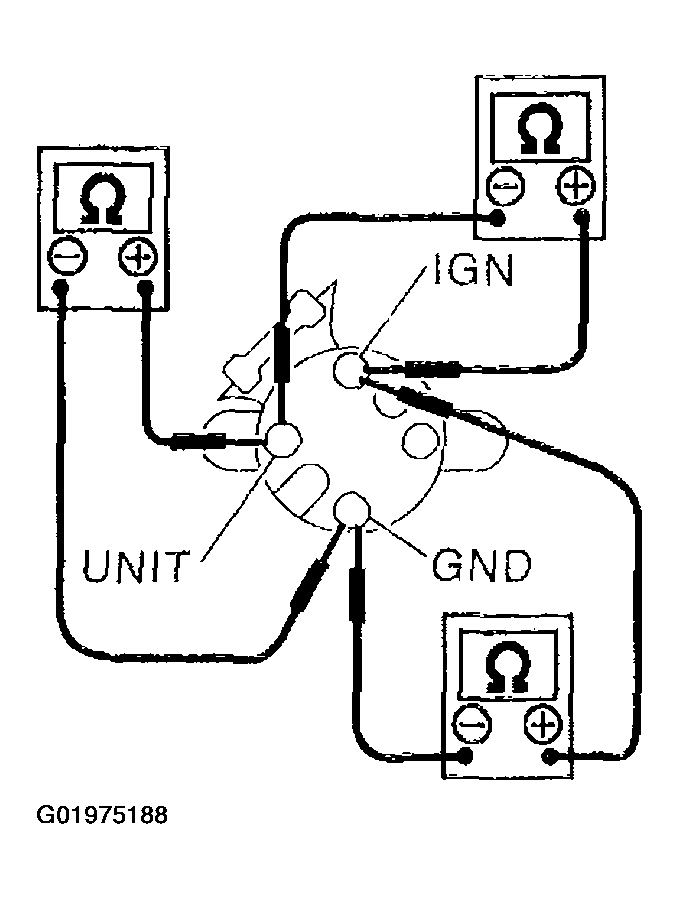

Fig 1: Measuring Water Temperature Gauge Resistance

Courtesy of SUBARU OF AMERICA, INC.

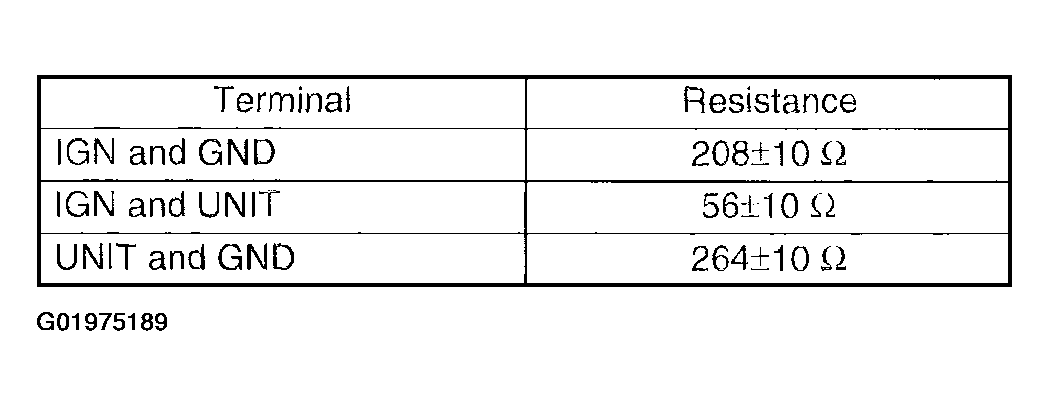

Fig 2: Water Temperature Gauge Resistance Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the water temperature gauge and fuel gauge assembly.

If OK, replace the combination meter printed circuit.
