Fuel Gauge: Inspection

Measure the fuel gauge resistance.

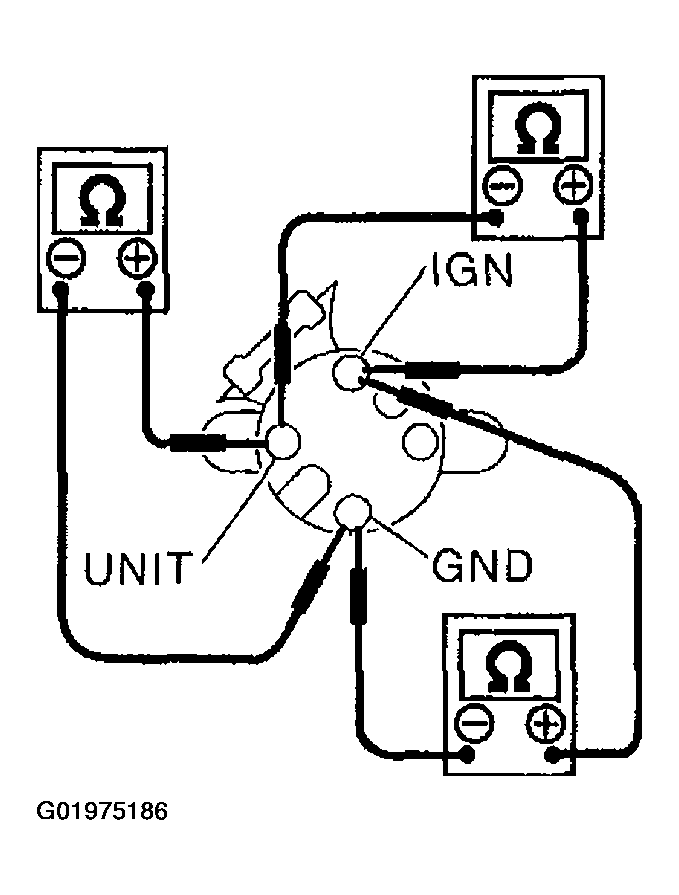

Fig 1: Measuring Fuel Gauge Resistance

Courtesy of SUBARU OF AMERICA, INC.

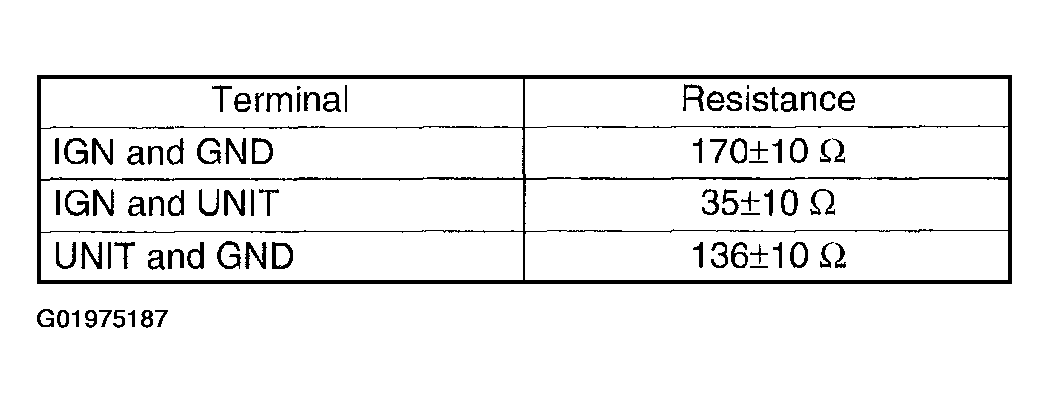

Fig 2: Fuel Gauge Resistance Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the water temperature gauge and fuel gauge assembly.

If OK, replace the combination meter printed circuit.
