Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Gauge & Instrument Panels >> Combination Meter System >> Inspection >> Symptom Chart

Symptom Chart

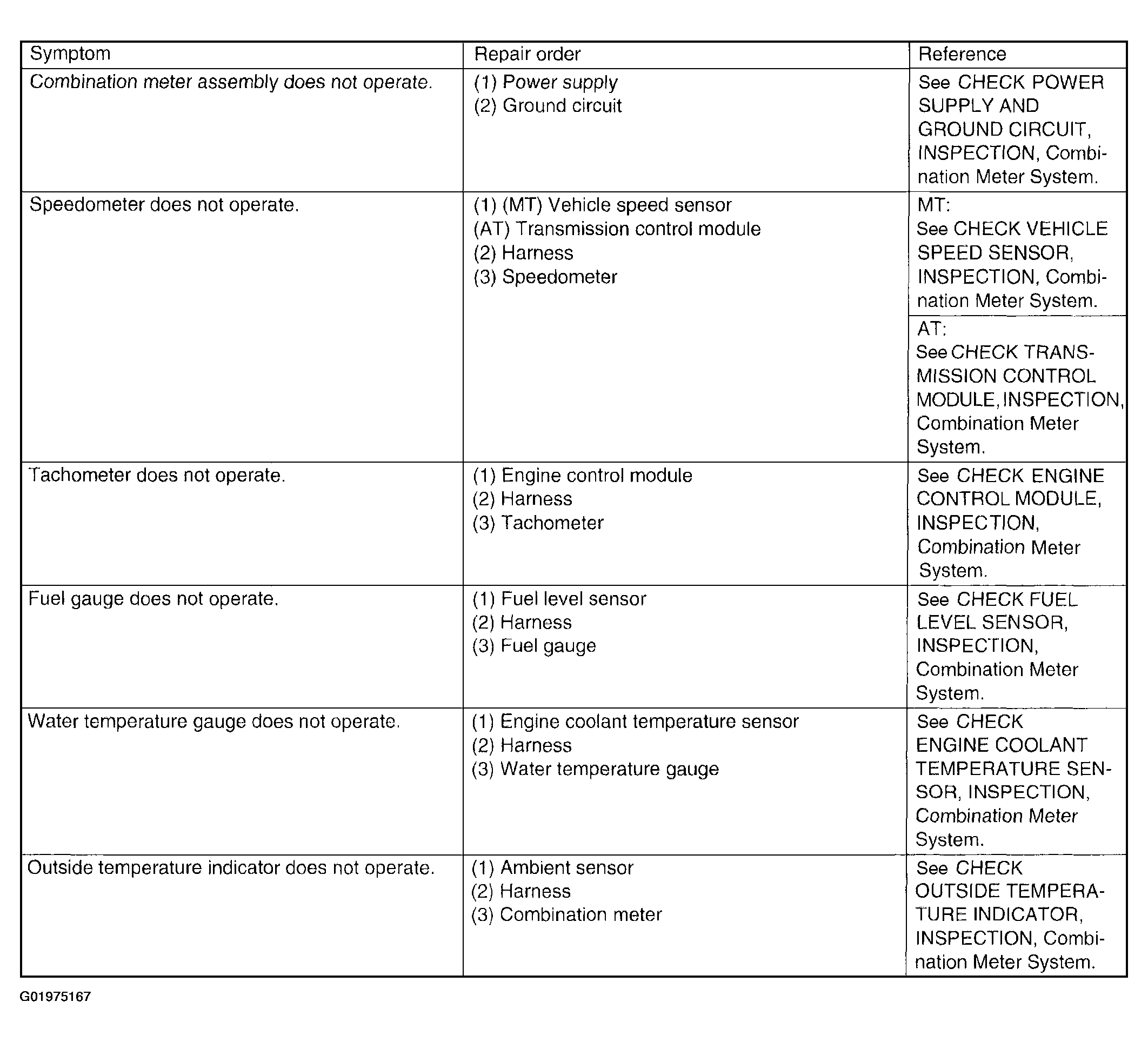

Fig 1: Symptom Chart

G01975167

Courtesy of SUBARU OF AMERICA, INC.
