Check Vehicle Speed Sensor

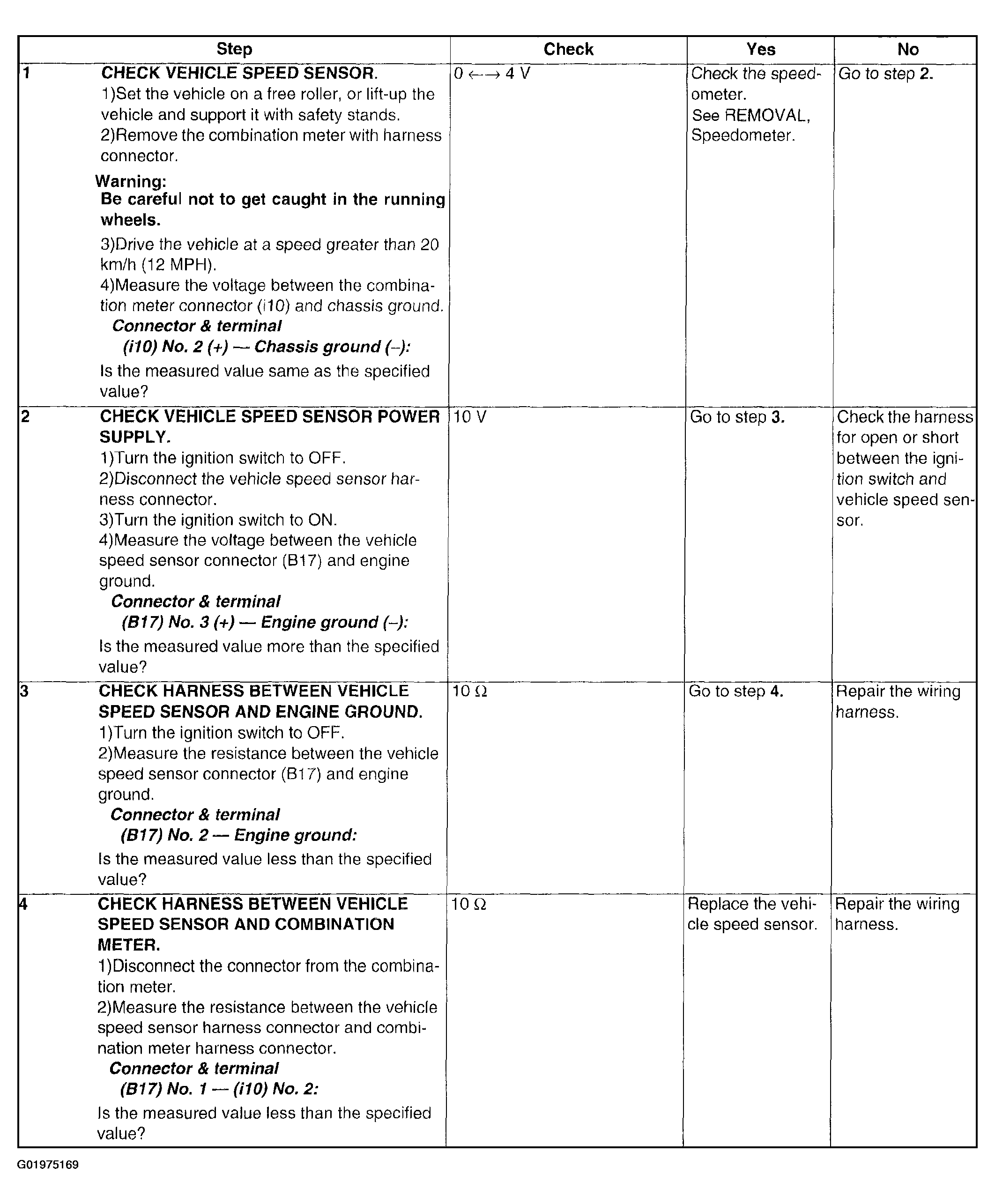

Fig 1: Vehicle Speed Sensor Inspection Chart

G01975169

Courtesy of SUBARU OF AMERICA, INC.
