Check Power Supply And Ground Circuit

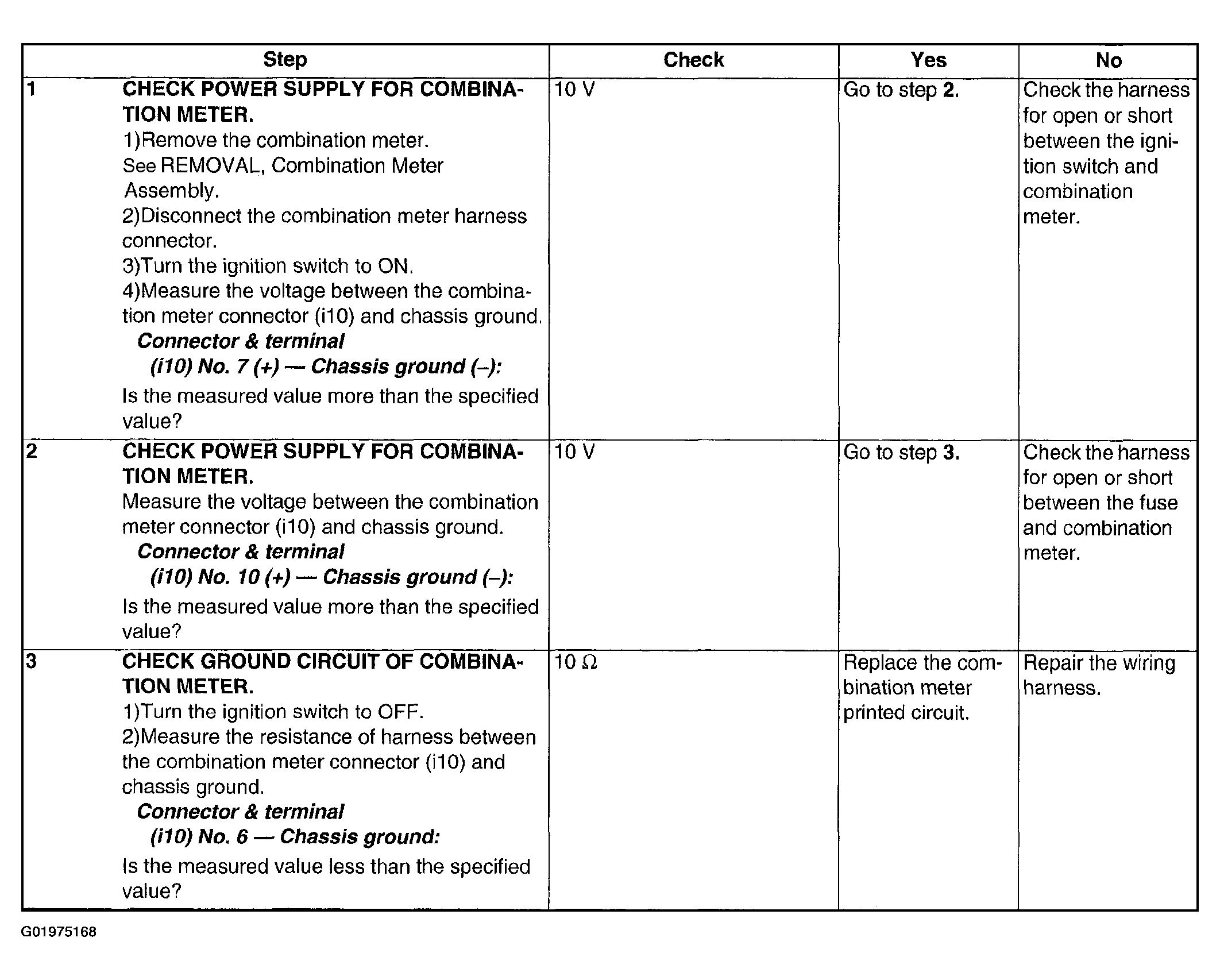

Fig 1: Power Supply And Ground Circuit Inspection Chart

G01975168

Courtesy of SUBARU OF AMERICA, INC.
