Check Fuel Level Sensor
Check Fuel Level Sensor

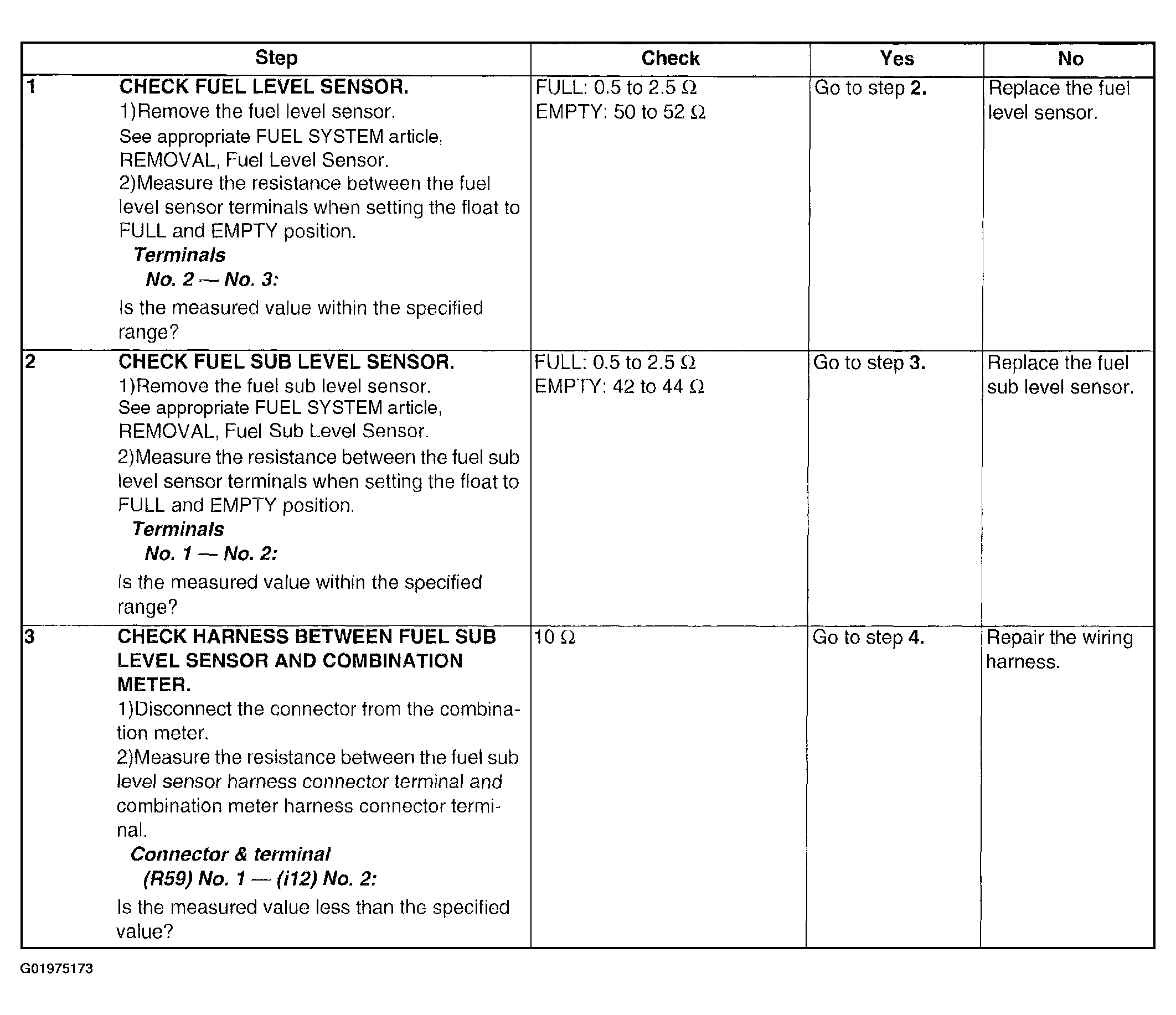

Fig 1: Fuel Level Sensor Inspection Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

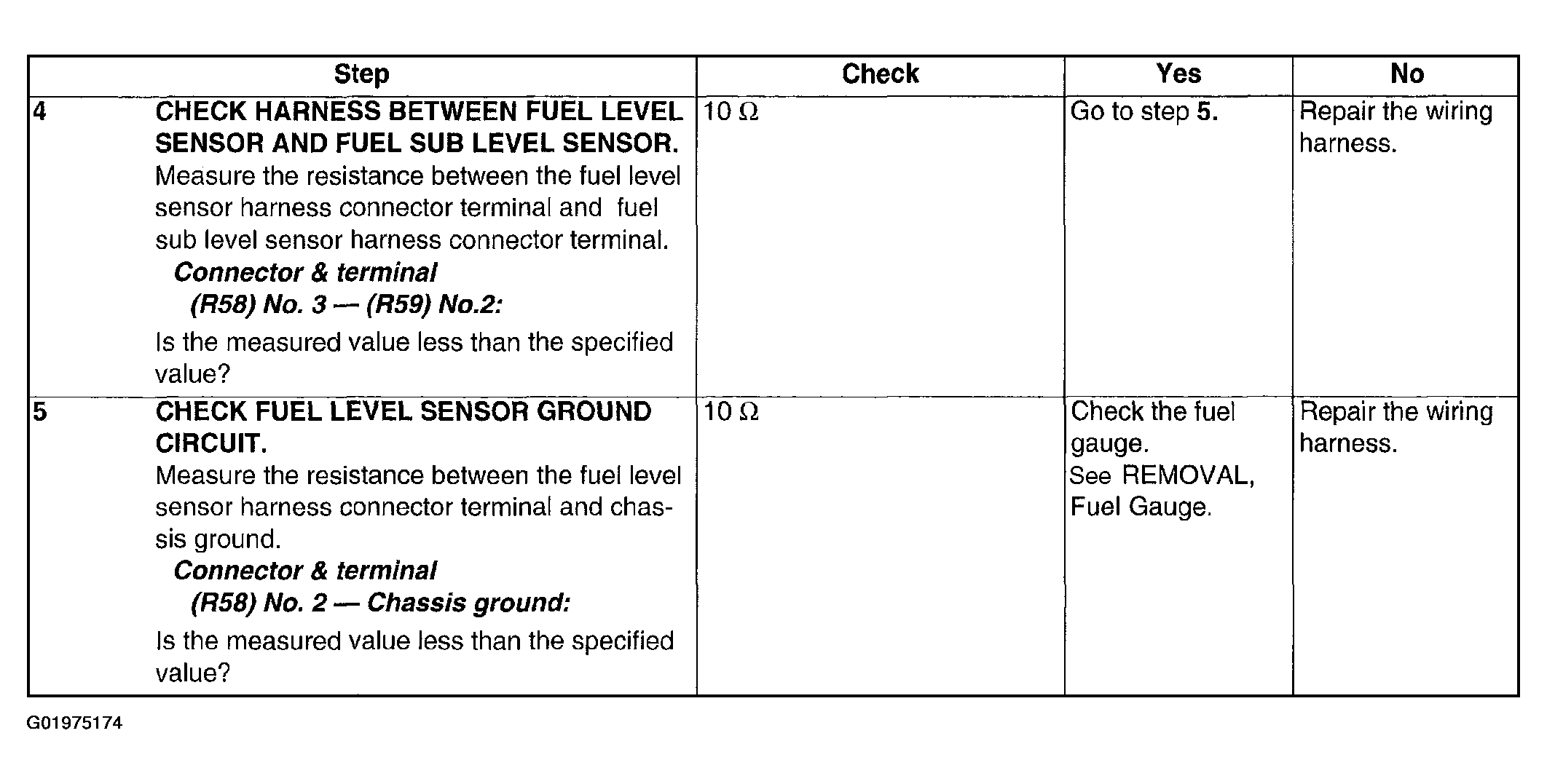

Fig 2: Fuel Level Sensor Inspection Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
