Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Gauge & Instrument Panels >> Combination Meter System >> Inspection >> Check Engine Coolant Temperature Sensor

Check Engine Coolant Temperature Sensor

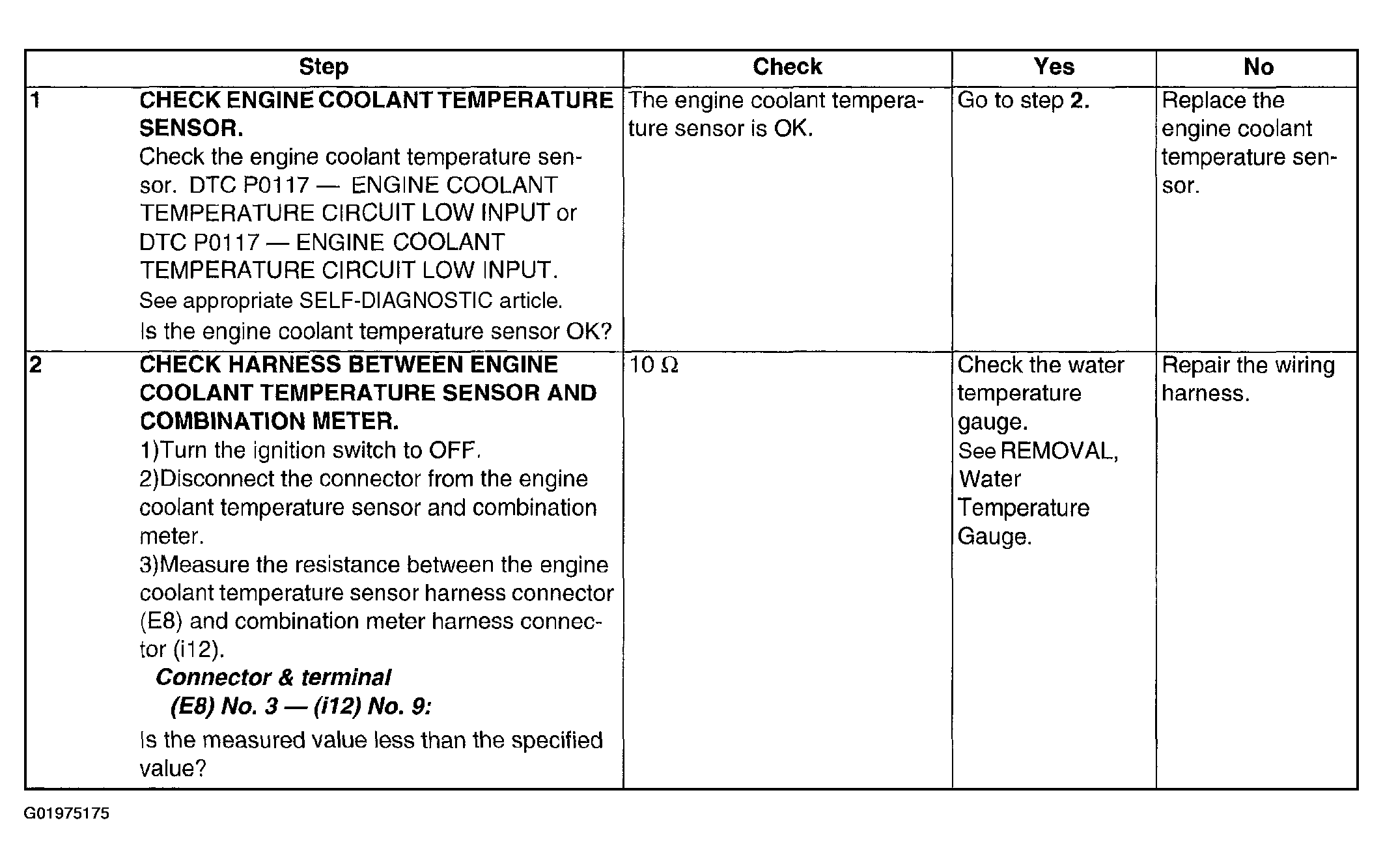

Fig 1: Engine Coolant Temperature Sensor Inspection Chart

G01975175

Courtesy of SUBARU OF AMERICA, INC.
