Check Engine Control Module
Check Engine Control Module

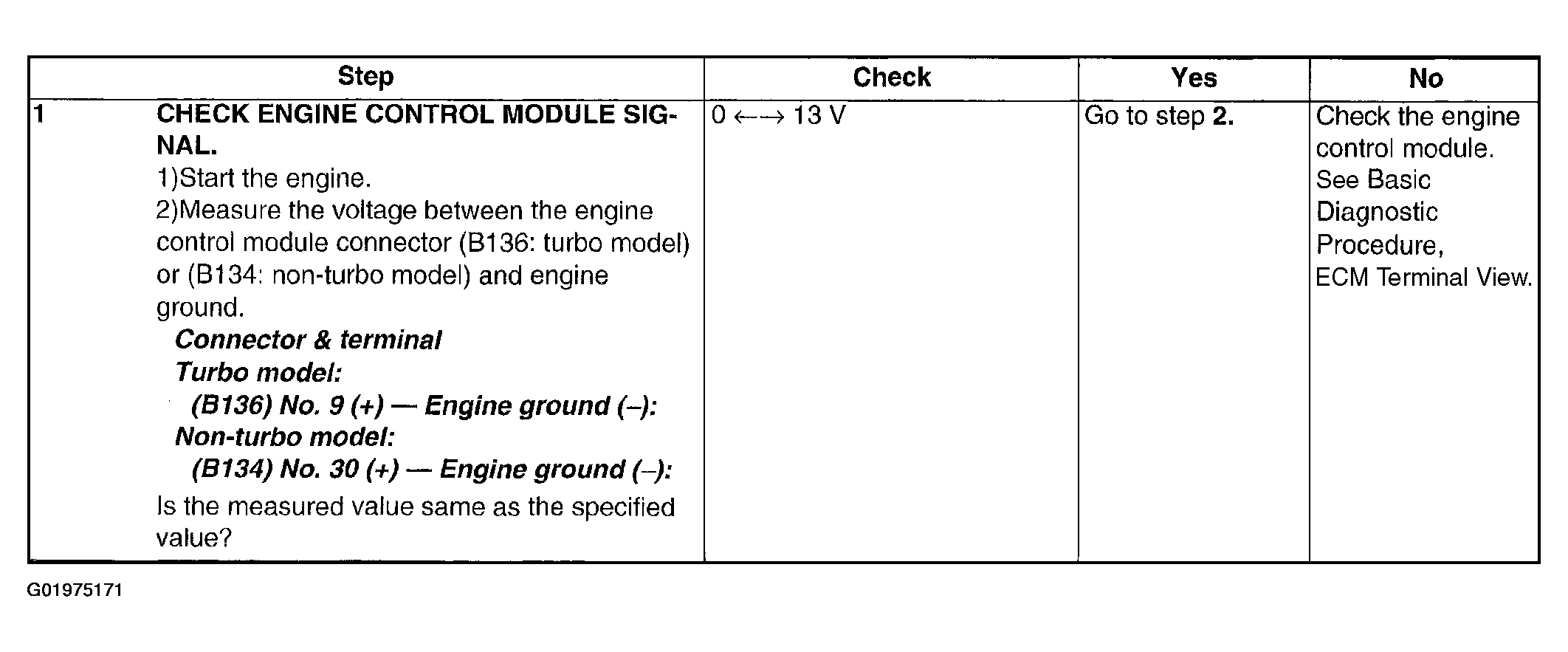

Fig 1: Engine Control Module Inspection Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

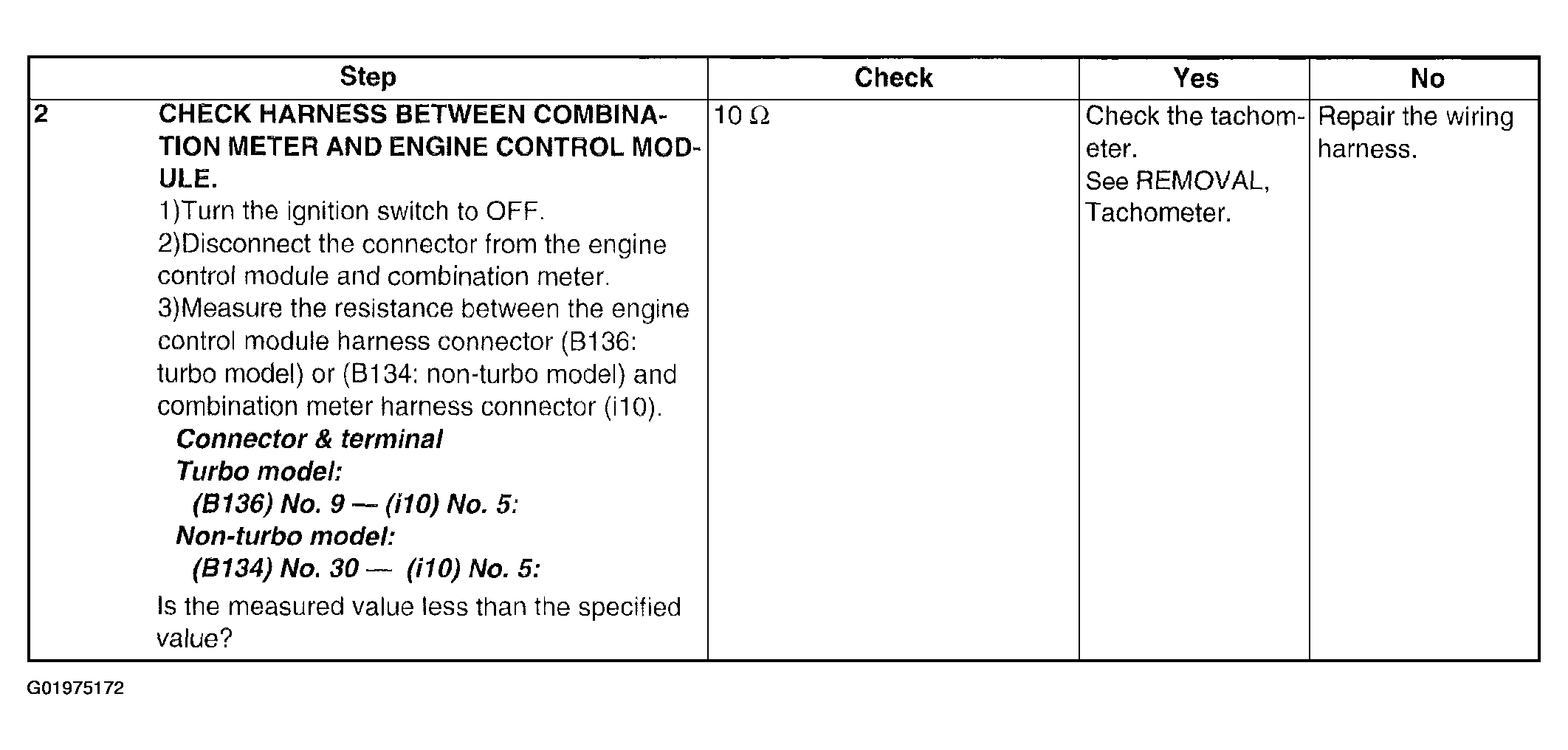

Fig 2: Engine Control Module Inspection Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
