Combination Meter Assembly: Removal

Disconnect the battery ground cable.
Set the tilt steering at the lowest position.
Remove the screws and detach the meter visor.

Fig 1: Detaching Meter Visor
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws of combination meter and pull out the meter toward you.

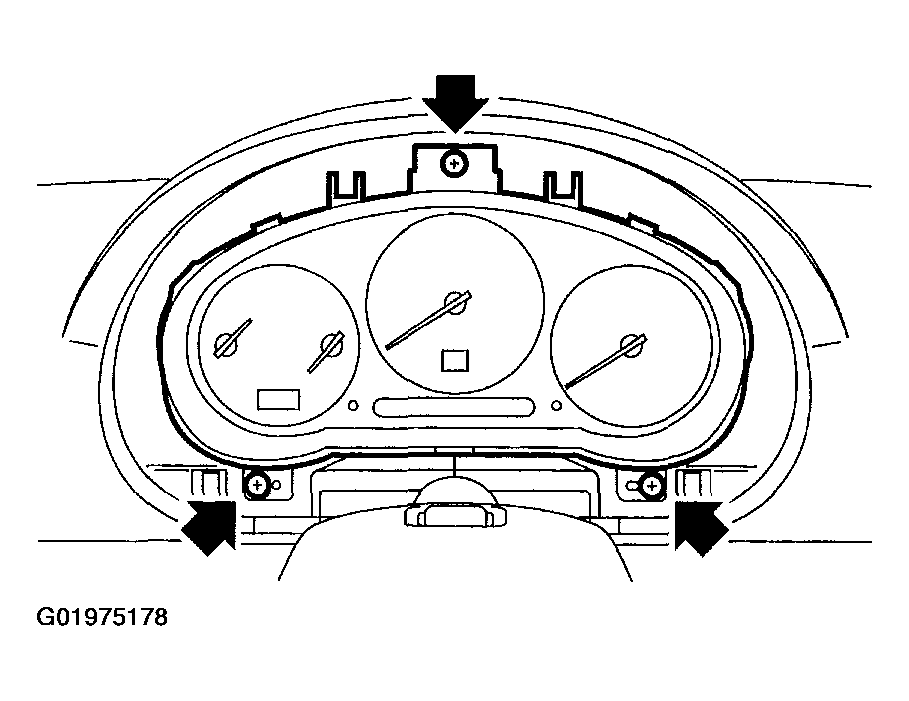

Fig 2: Removing Combination Meter From Dash
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector in the upper area of combination meter to remove the meter.
CAUTION:
- Be careful not to damage the meter or instrument panel.
- Pay particular attention to avoid damaging the meter glass.
