Combination Meter Assembly: Disassembly: Notes

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

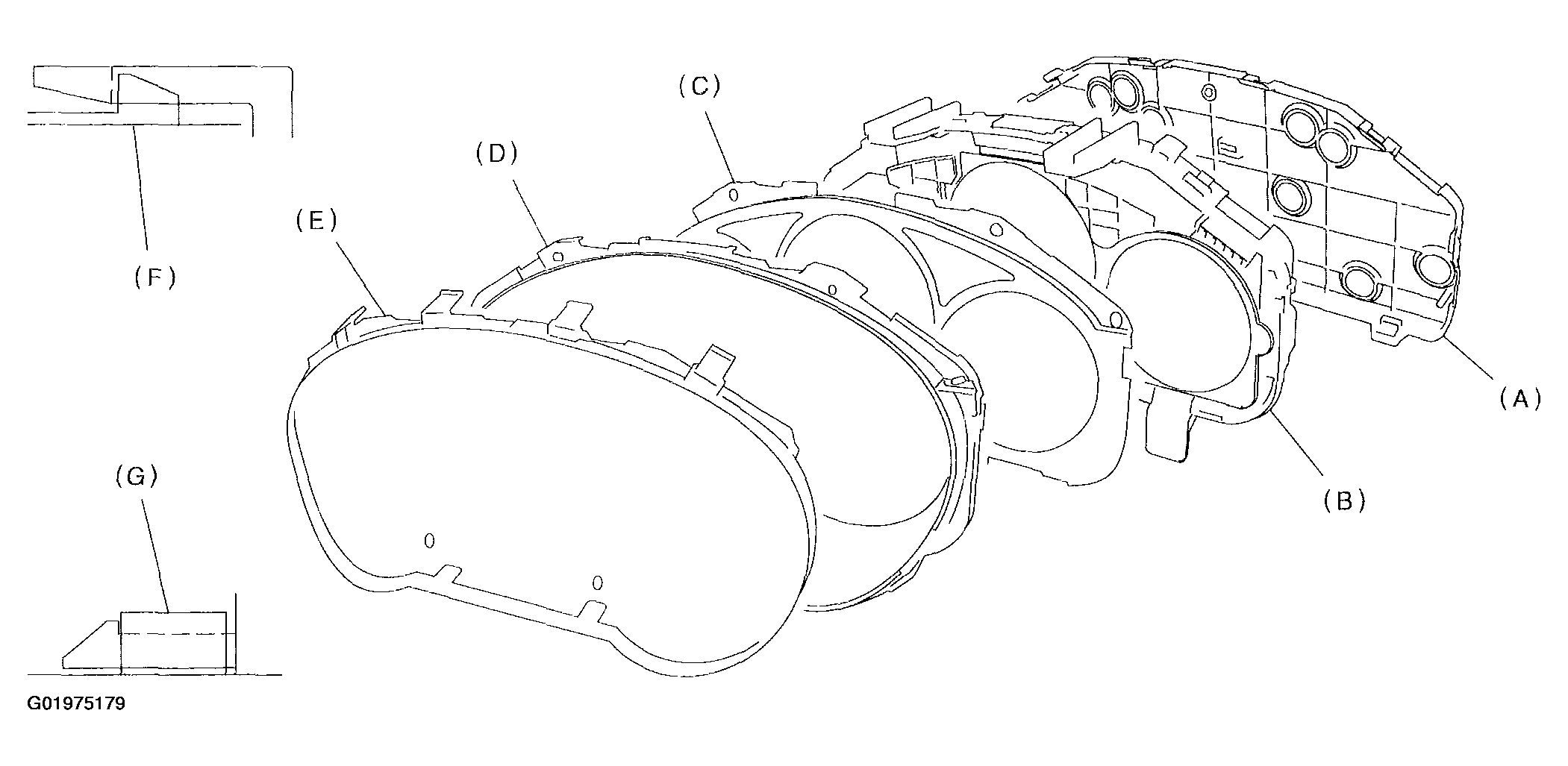

Disengage claw (F) to remove case (B) from back cover (A).
Disengage claw (G) to remove meter glass (E), reflector (D) and window plate (C) from inner case.

Fig 1: Disassembling Combination Meter (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

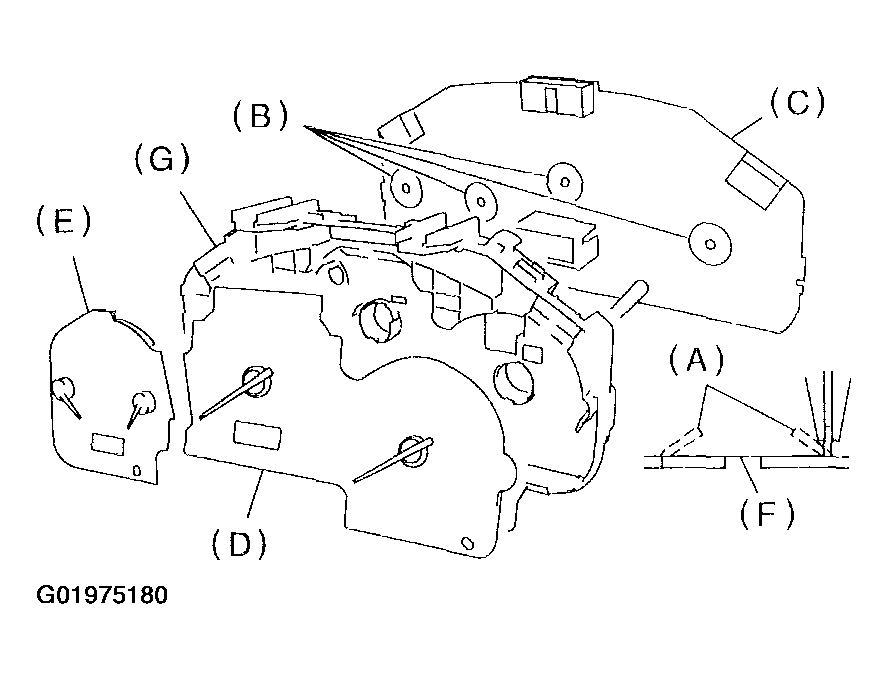

Pull up claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers. Push out speedometer and tachometer assembly (D) and fuel gauge and water temperature gauge assembly (E) using hole (F).
Pull up the claw in the center of combination meter printed circuit (C), and remove the combination meter printed circuit from case (G).

Fig 2: Disassembling Combination Meter (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
