Bulb Replacement

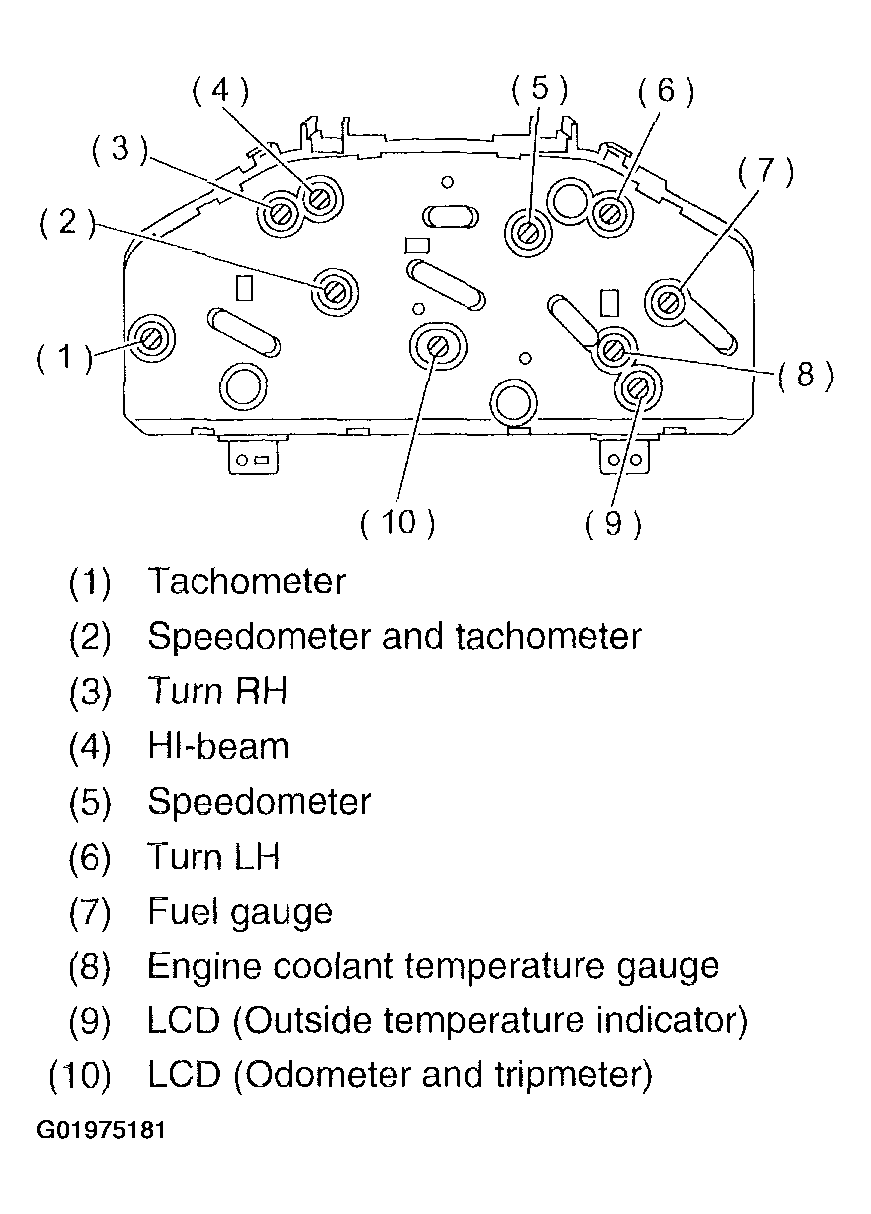

Fig 1: Identifying Bulbs In Combination Meter Assembly

G01975181

Courtesy of SUBARU OF AMERICA, INC.
