Rear Quarter Trim: Removal

  1. Remove the rear seat.
  2. Remove the side sill rear cover.
  3. Remove the rear rail trim (A).
  4. Remove the strut cap.
  5. Remove the shoulder anchor of rear seat belt.
  6. Loosen the screws and clips to remove rear quarter upper trim (B).
  7. Remove the rear skirt trim (C).
  8. Loosen the screws and clips to remove rear quarter lower trim (D).

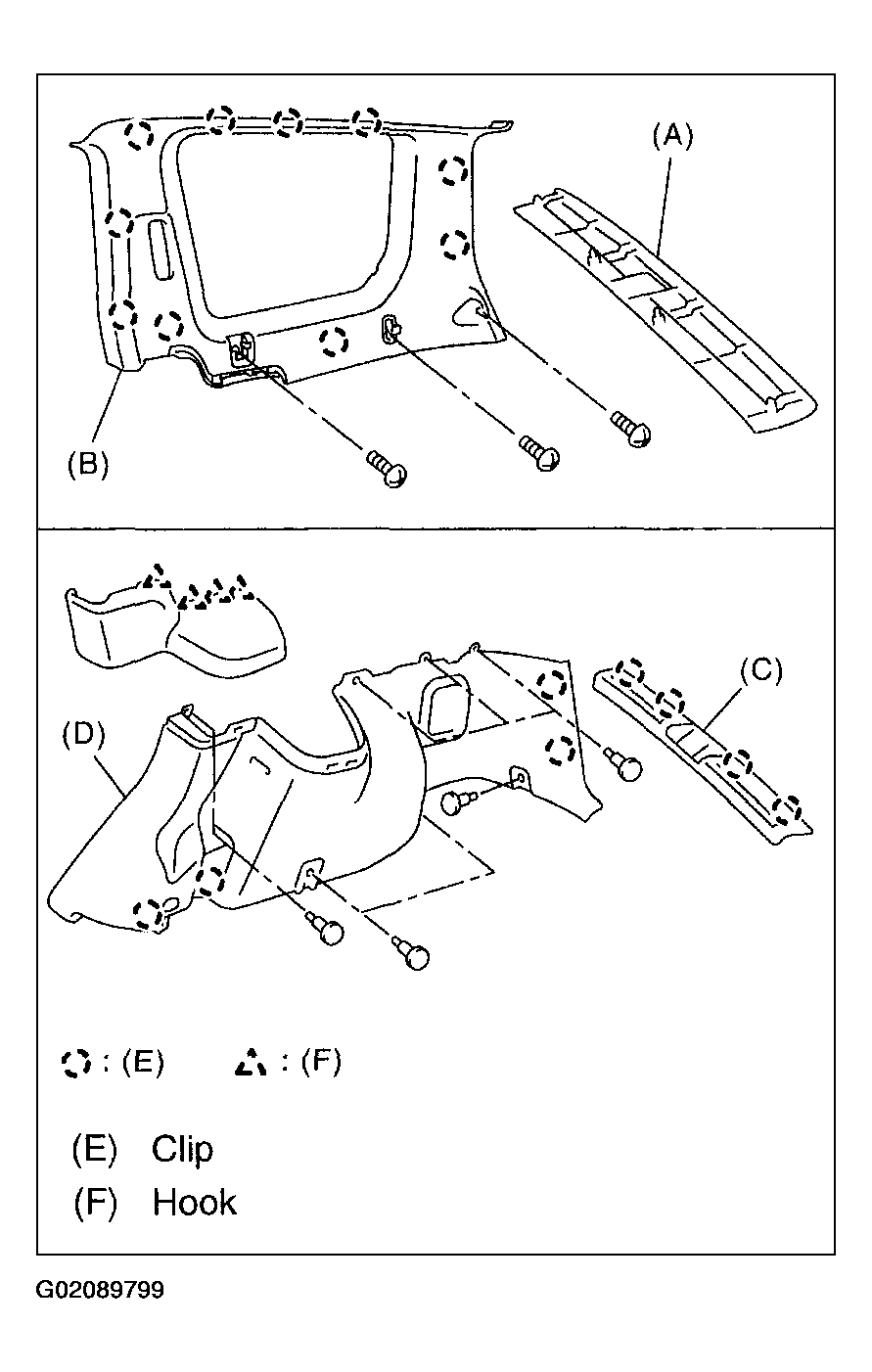

    Fig 1: Removing Rear Quarter Trim
    G02089799Courtesy of SUBARU OF AMERICA, INC.
