Radio Body: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the front cover. Refer to REMOVAL , Console Box.
  3. Loosen the screws and clips (A), and then remove the center panel.

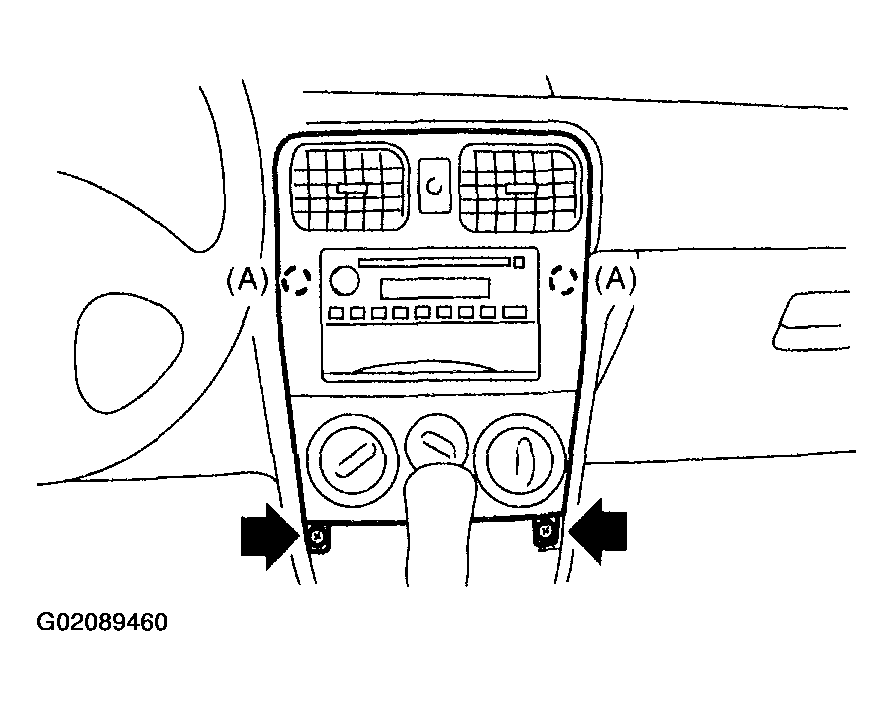

    Fig 1: Loosening Screws & Clips And Removing Center Panel
    G02089460Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector.
  5. Remove the fitting screws, and slightly pull out the radio from center console.
  6. Disconnect the harness connectors and antenna feeder cord.
