Rear Heat Shield Cover

  1. Remove the muffler. Refer to REMOVAL , Muffler.
  2. Loosen the four bolts to remove rear heat shield cover.

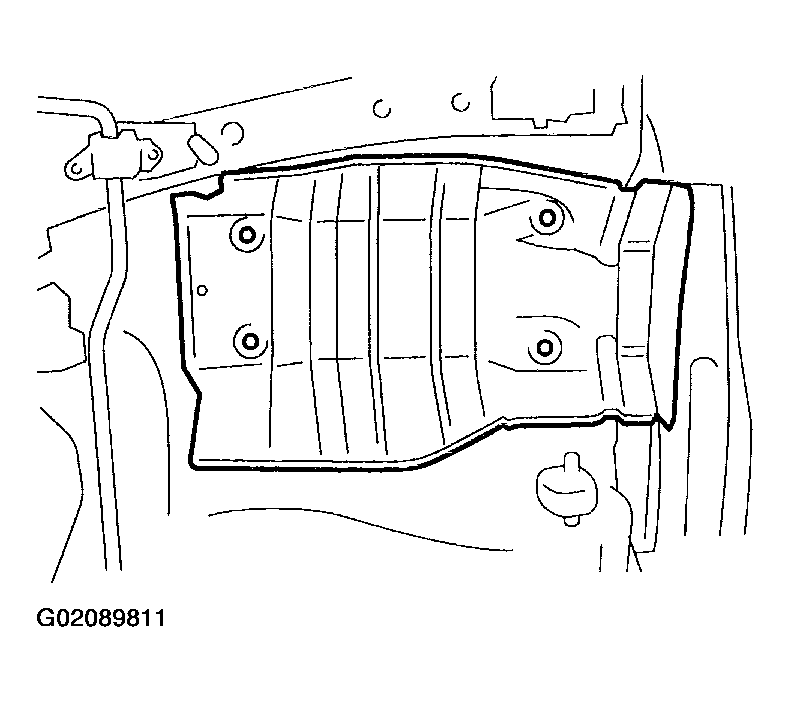

    Fig 1: Removing Rear Heat Shield Cover
    G02089811Courtesy of SUBARU OF AMERICA, INC.
