Cowl Panel: Removal

  1. Open the hood.
  2. Remove the wiper arm. Refer to REMOVAL , Front Wiper Arm.
  3. Remove the clips to remove cowl side panels.
    Fig 1: Removing Cowl Side Panels
    G02089771Courtesy of SUBARU OF AMERICA, INC.
  4. Loosen the clips to remove cowl panel.

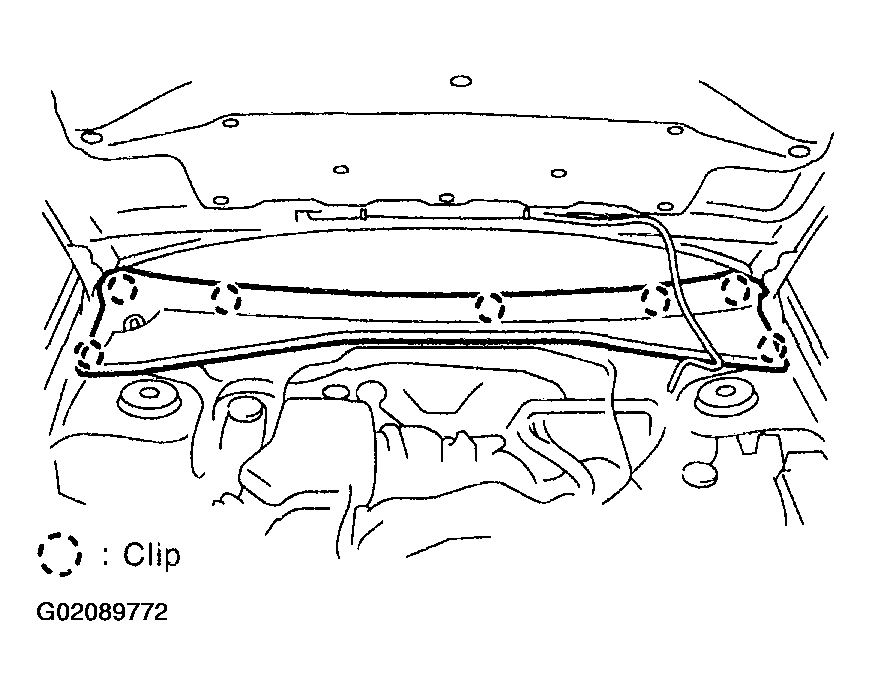

    Fig 2: Removing Cowl Panel
    G02089772Courtesy of SUBARU OF AMERICA, INC.
