Console Box: Removal

Disconnect the ground cable from battery.
Remove the console front cover.

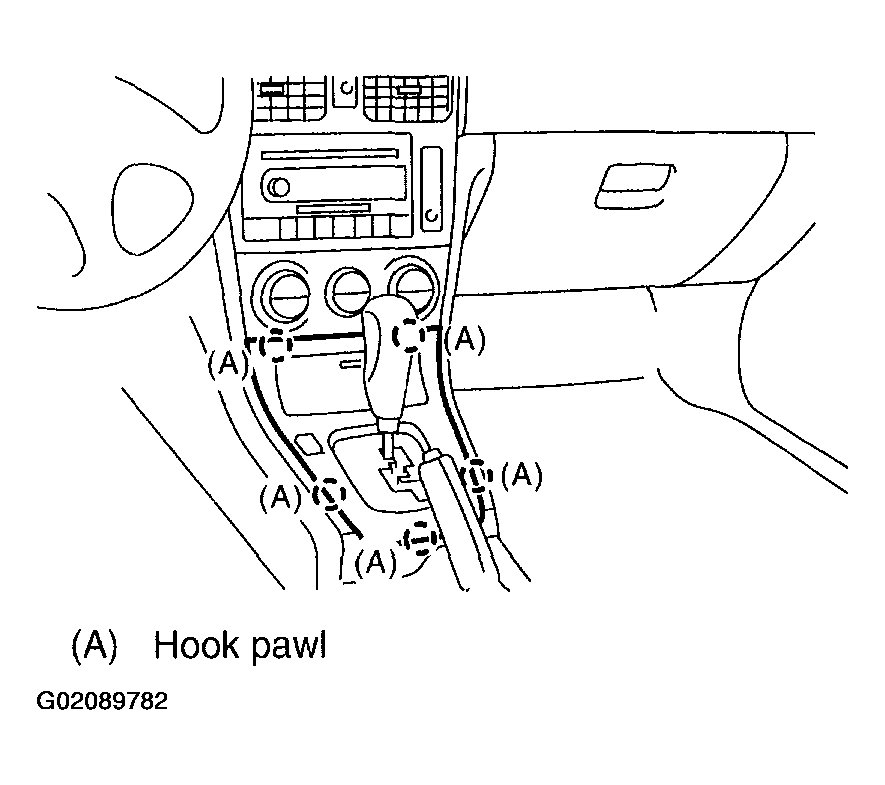

Fig 1: Identifying Console Front Cover Hook Pawl
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift knob (MT model).
Loosen the screws to remove console cover.

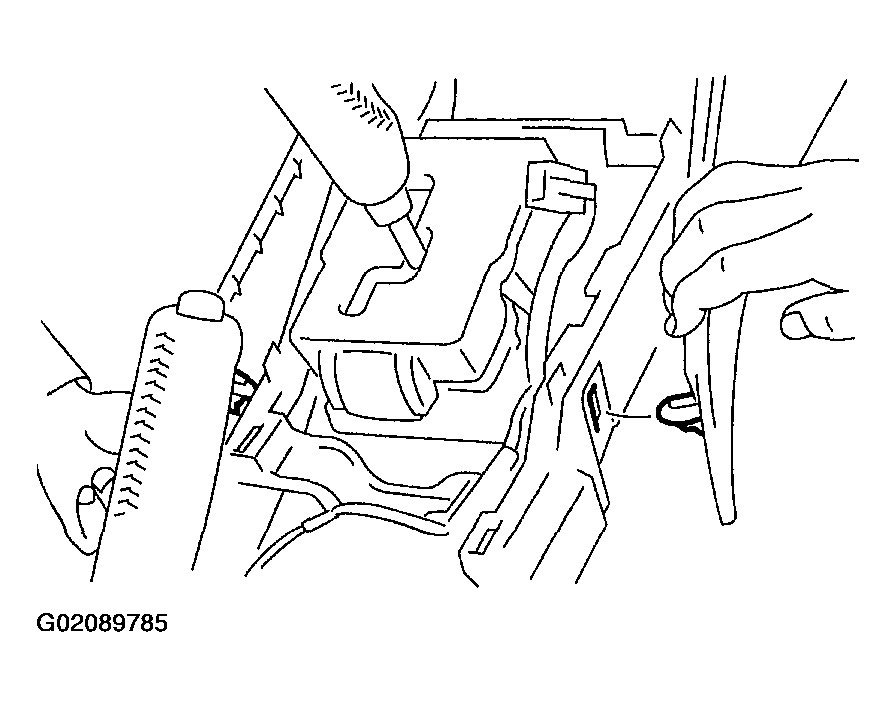

Fig 2: Removing Console Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws.

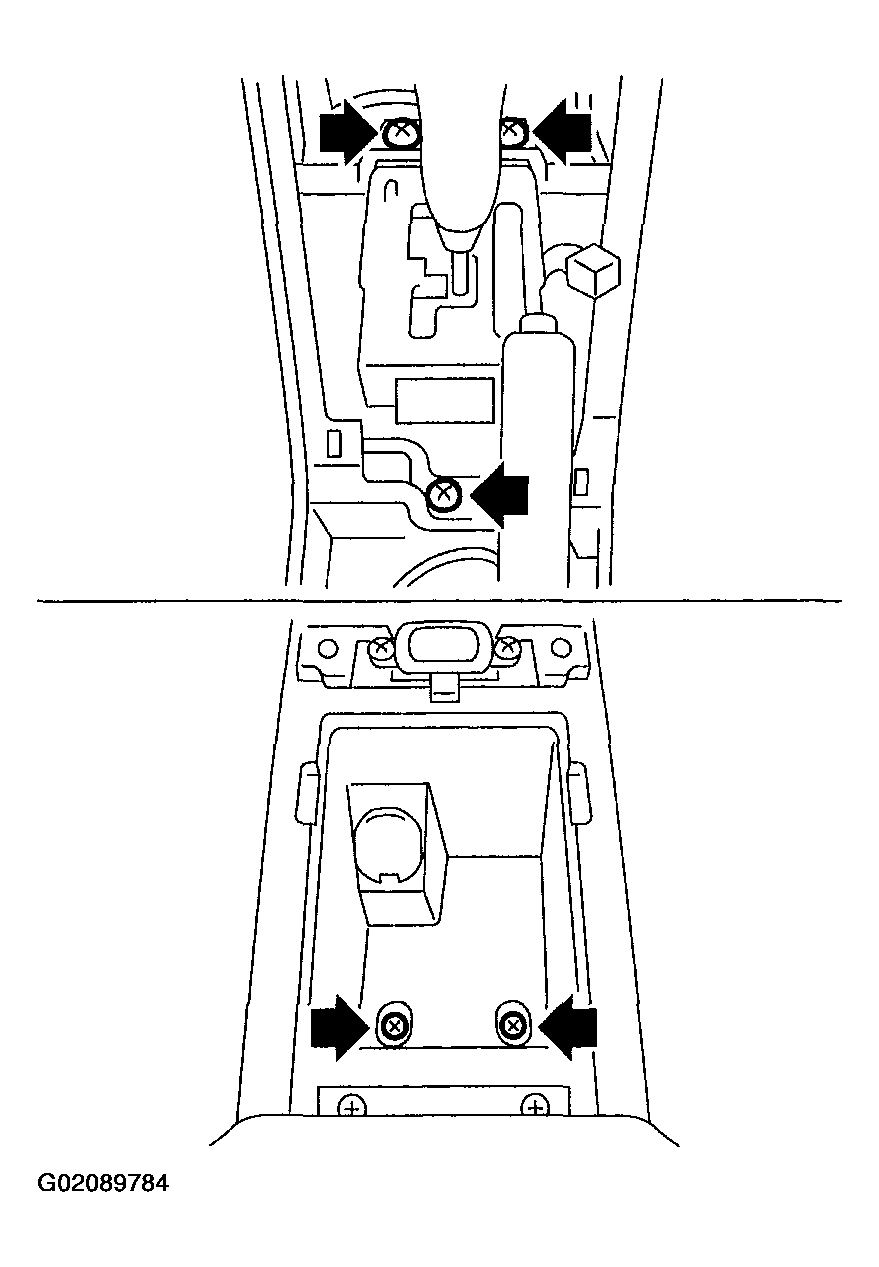

Fig 3: Loosening Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the hook pawl of console side panel to remove console box.

Fig 4: Removing Console Box
Courtesy of SUBARU OF AMERICA, INC.
