Universal Joint: Removal

  1. Remove the steering wheel. Refer to REMOVAL  , Steering Wheel.
  2. Make matching mark on the universal joint.
  3. Remove the universal joint bolts, and then remove the universal joint.

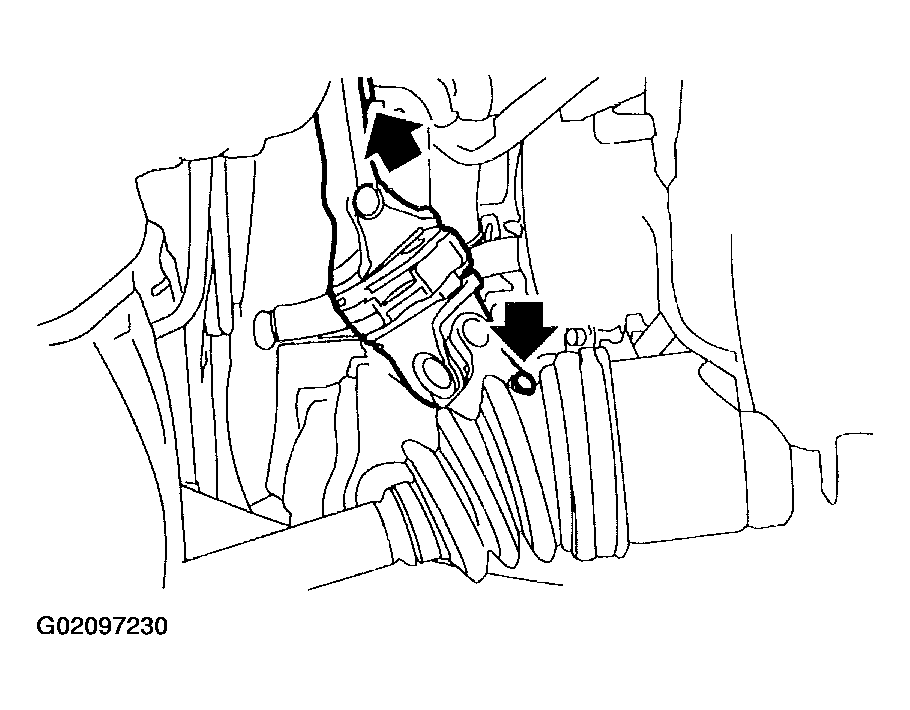

    Fig 1: Removing Universal Joint Bolts
    G02097230Courtesy of SUBARU OF AMERICA, INC.
