Roof Rail: Removal

  1. Remove the roof trim. Refer to REMOVAL  , Roof Trim.
  2. Remove the five mounting nuts.
  3. Detach the clip at front edge sideways carefully to remove the roof rail upwards.

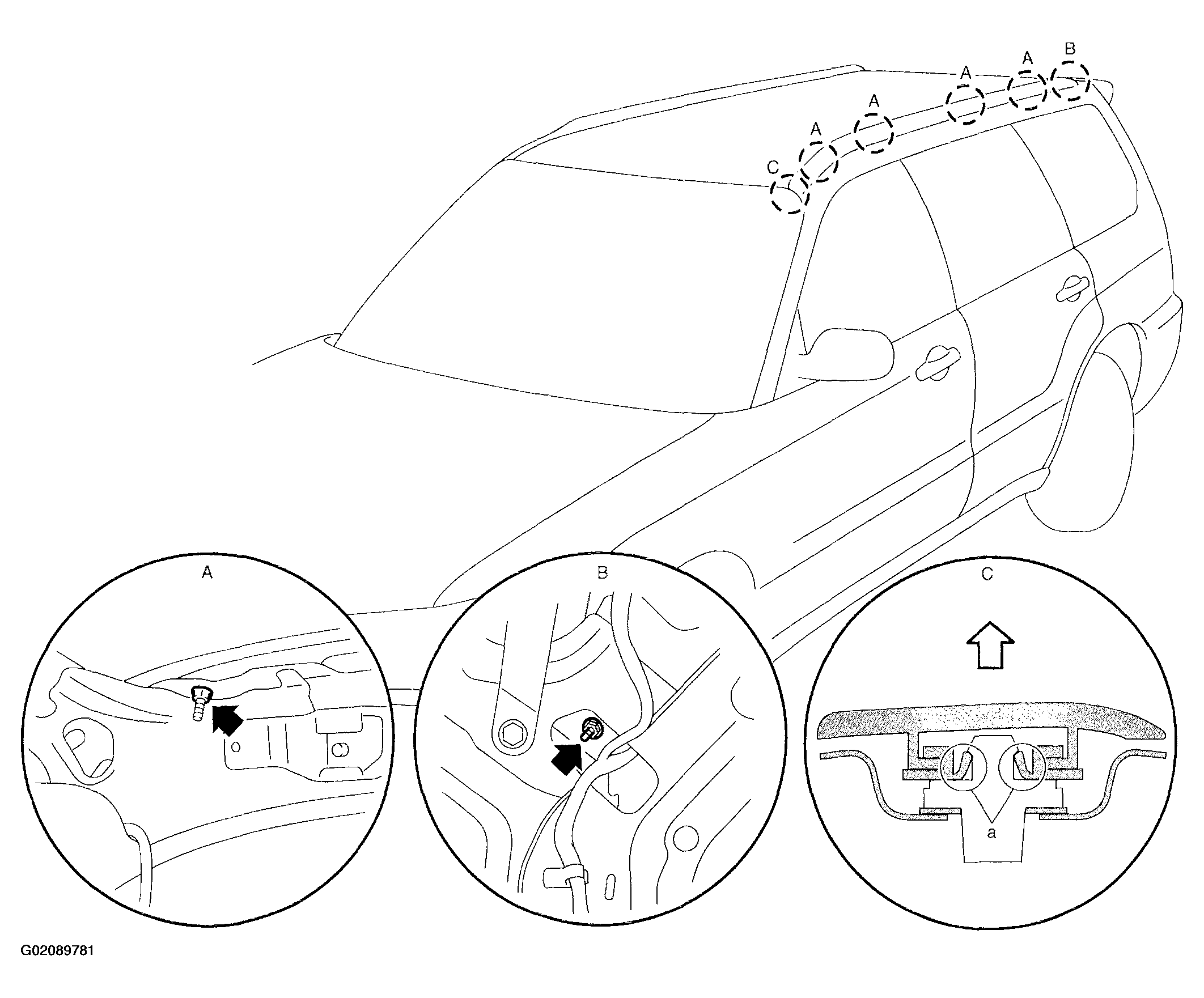

    Fig 1: Removing Roof Rail
    G02089781Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the clip at "C" area upwards while applying sideway force to deflect hook at "a" area.
