Sunroof Motor: Installation

CAUTION:
  • Never rotate the sunroof motor while removed.
  • Be careful not to move the sunroof cable when installing sunroof motor.
  1. Check the matching mark (A) of sunroof motor.
    Fig 1: Checking Matching Mark Of Sunroof Motor
    G02102046Courtesy of SUBARU OF AMERICA, INC.
  2. Confirm the matching mark (A) of sunroof bracket link.
    Fig 2: Identifying Matching Mark Of Sunroof Bracket Link
    G02102047Courtesy of SUBARU OF AMERICA, INC.
  3. Install sunroof motor.
  4. After installing the motor, reconfirm the matching marks of motor side and sunroof bracket link side.
  5. Connect sunroof motor harness connector and then connect battery ground cable.

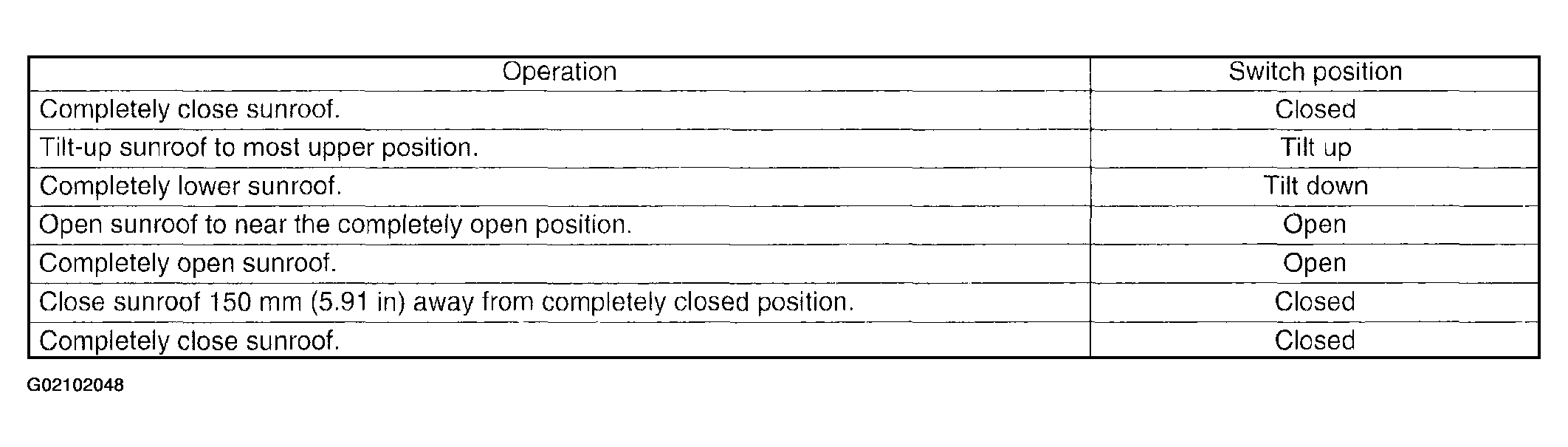

  6. Check the sunroof operation in order as shown in the table.
    Fig 3: Checking Sunroof Operation
    G02102048Courtesy of SUBARU OF AMERICA, INC.
  7. Install sunroof lid and trim in the reverse order of removal.
