Sunroof Motor: Removal: Pickup

CAUTION: When removing clip, use great care not to damage the roof trim.
  1. Disconnect ground cable from battery.
  2. Completely close the sunroof.
  3. Remove sunroof lid. < Ref. to REMOVAL  , Sunroof Lid.>
  4. Confirm the matching mark (A) of rear sunroof bracket link and the guide from sunroof opening. (If the mark does not match, adjust to match the mark.)
    Fig 1: Identifying Matching Mark Of Rear Sunroof Bracket Link
    G02102044Courtesy of SUBARU OF AMERICA, INC.
  5. Remove roof trim. <Ref. to REMOVAL , Roof Trim.>
  6. Remove motor cover.

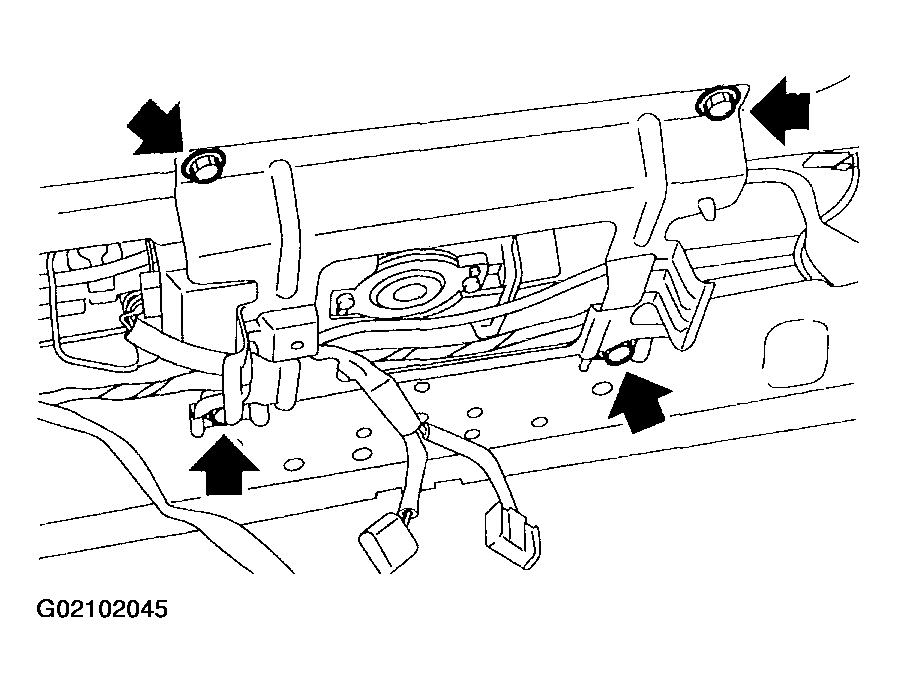

    Fig 2: Removing Motor Cover
    G02102045Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect harness connector and remove sunroof motor mounting screw.
