Sunroof Assembly: Removal: Pickup

Disconnect ground cable from battery.
Remove roof trim. <Ref. to REMOVAL , Roof Trim.>
Remove sunroof lid. < Ref. to REMOVAL , Sunroof Lid.>
Disconnect drain tube from sunroof frame.
Remove room lamp harness clip (A).

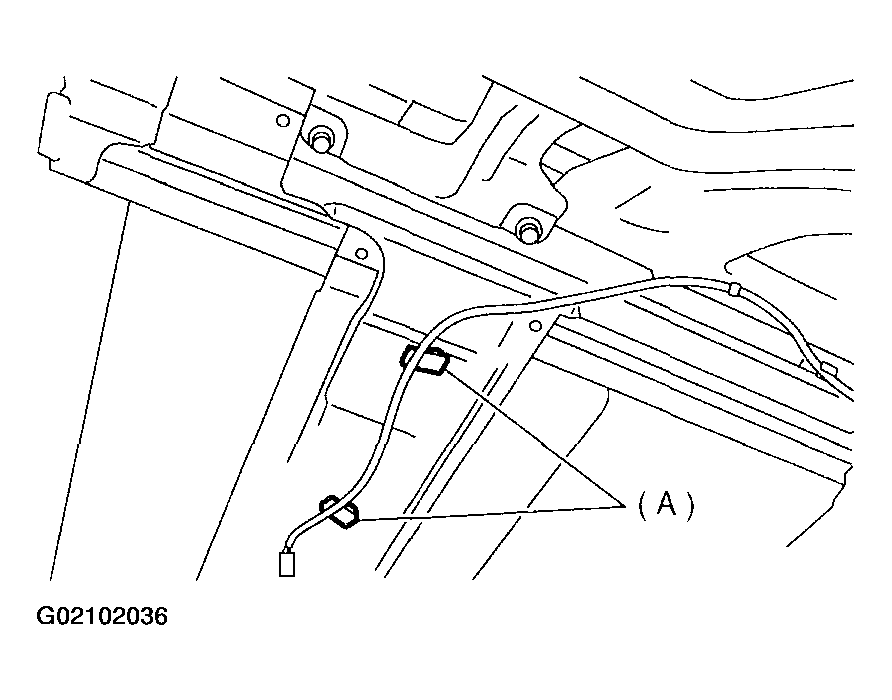

Fig 1: Removing Room Lamp Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect sunroof harness connector.
Remove motor cover.

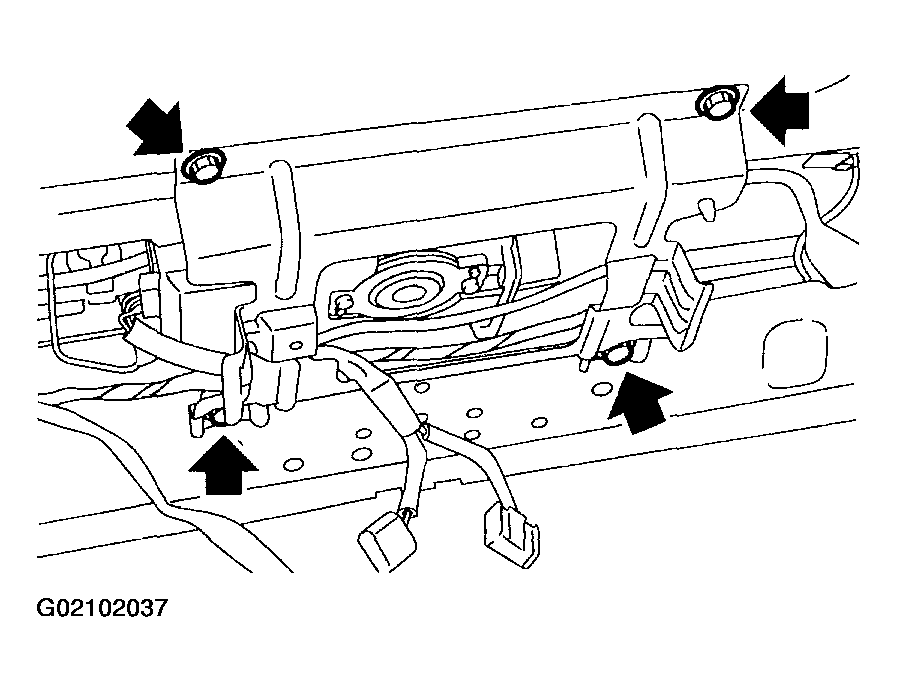

Fig 2: Removing Motor Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove sunroof brackets.

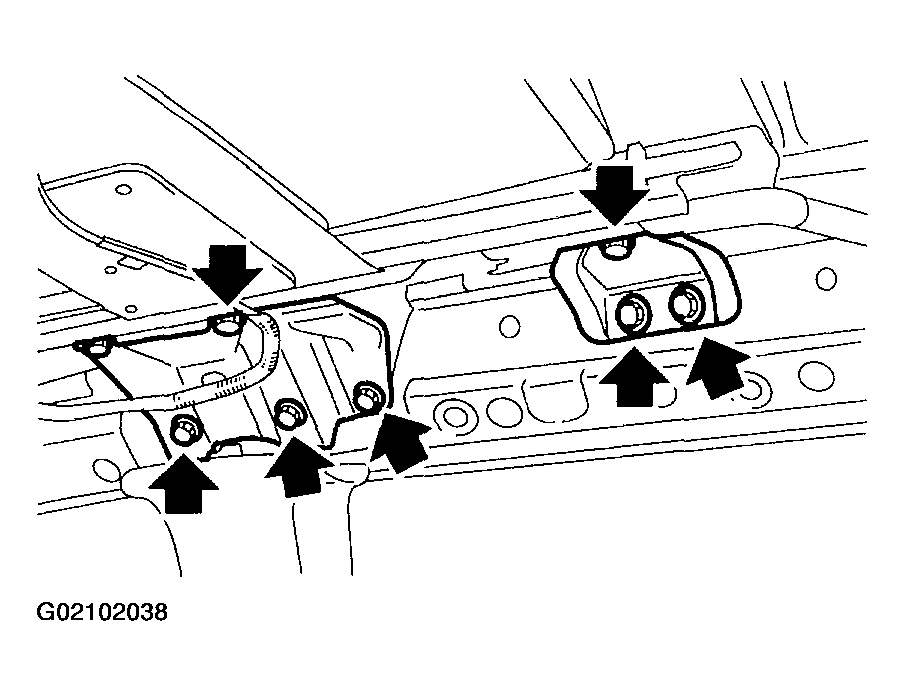

Fig 3: Removing Sunroof Brackets
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts then detach the sunroof frame.

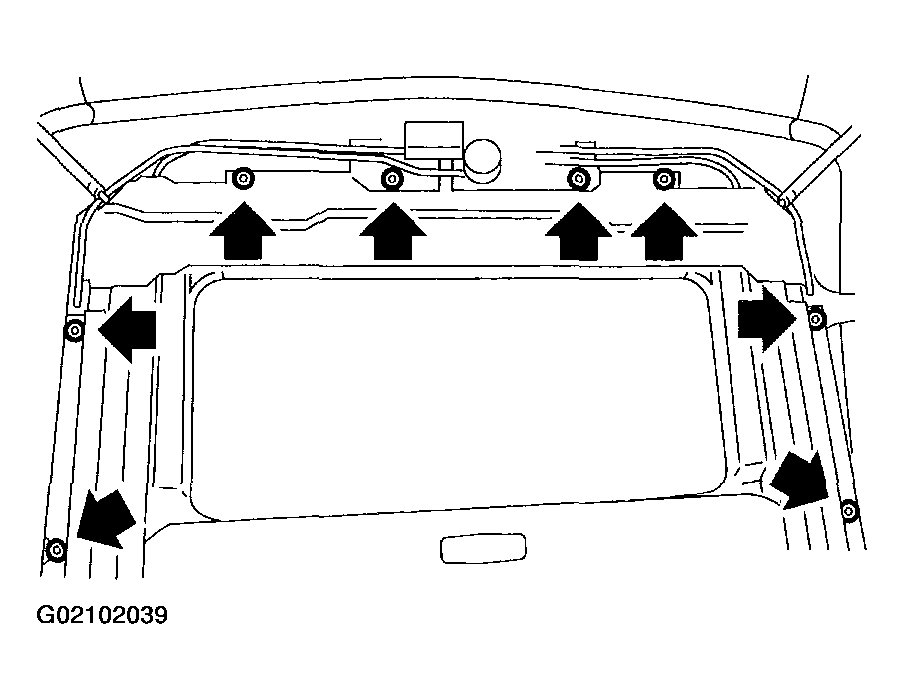

Fig 4: Removing Sunroof Frame
Courtesy of SUBARU OF AMERICA, INC.
