Wiring Diagrams

For Instrument Panel & Warning System Wiring Diagrams see SYSTEM WIRING DIAGRAMS (LEGACY) & SYSTEM WIRING DIAGRAMS (OUTBACK) article under ELECTRICAL section.

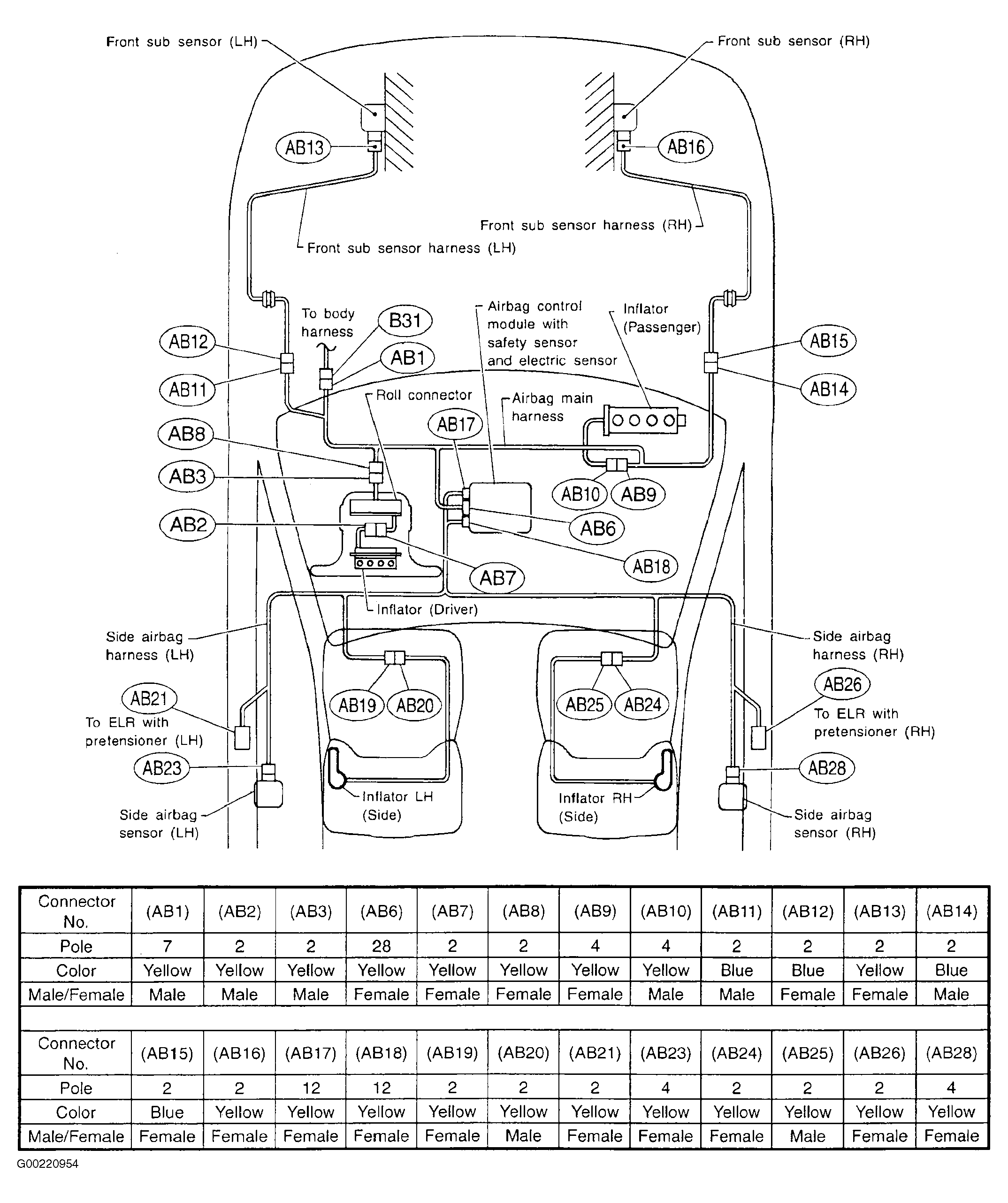

Fig 1: Locating Air Bag Main Harness Connectors

Courtesy of SUBARU OF AMERICA, INC.

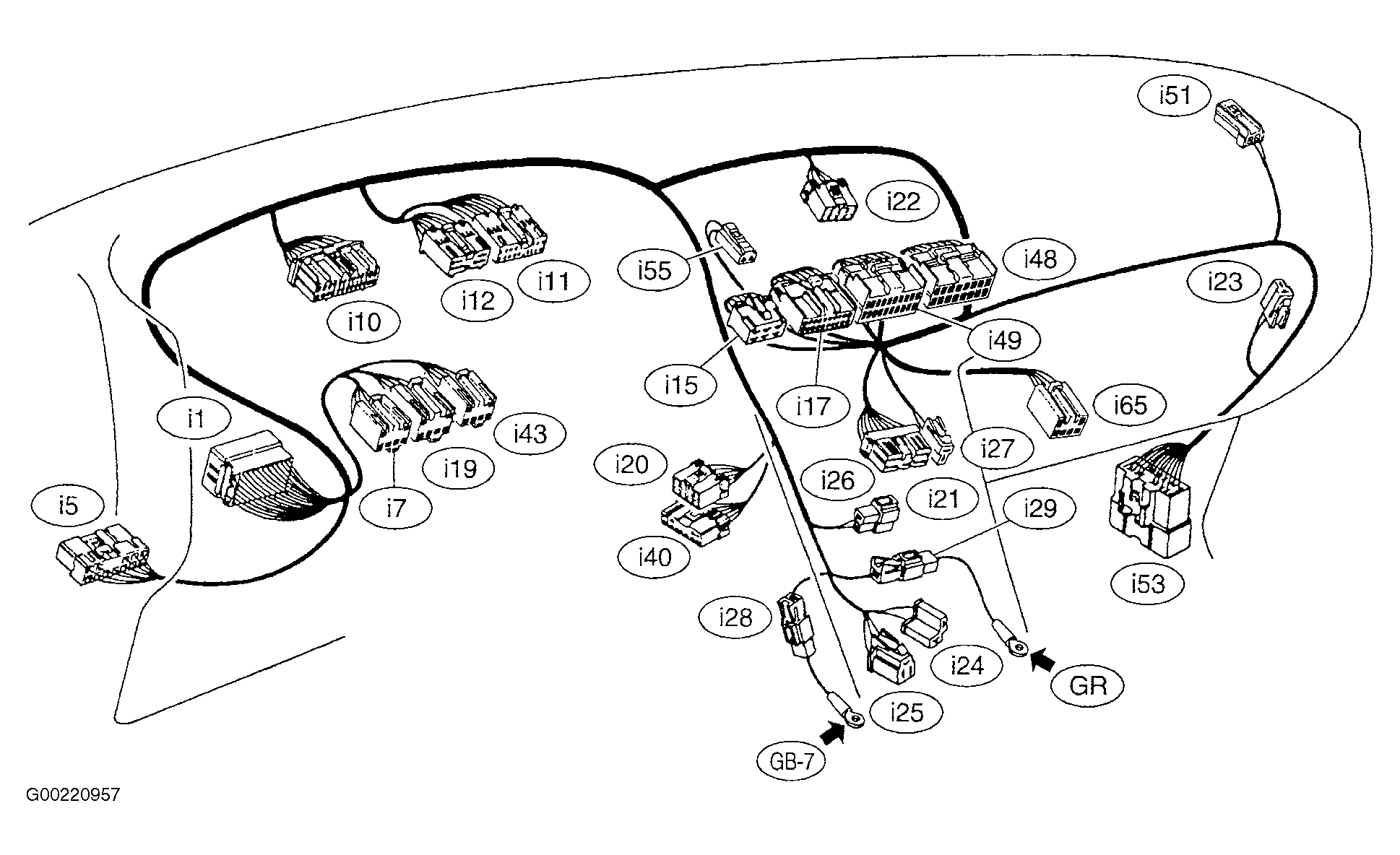

Fig 2: Locating Instrument Panel Wiring Harness

Courtesy of SUBARU OF AMERICA, INC.

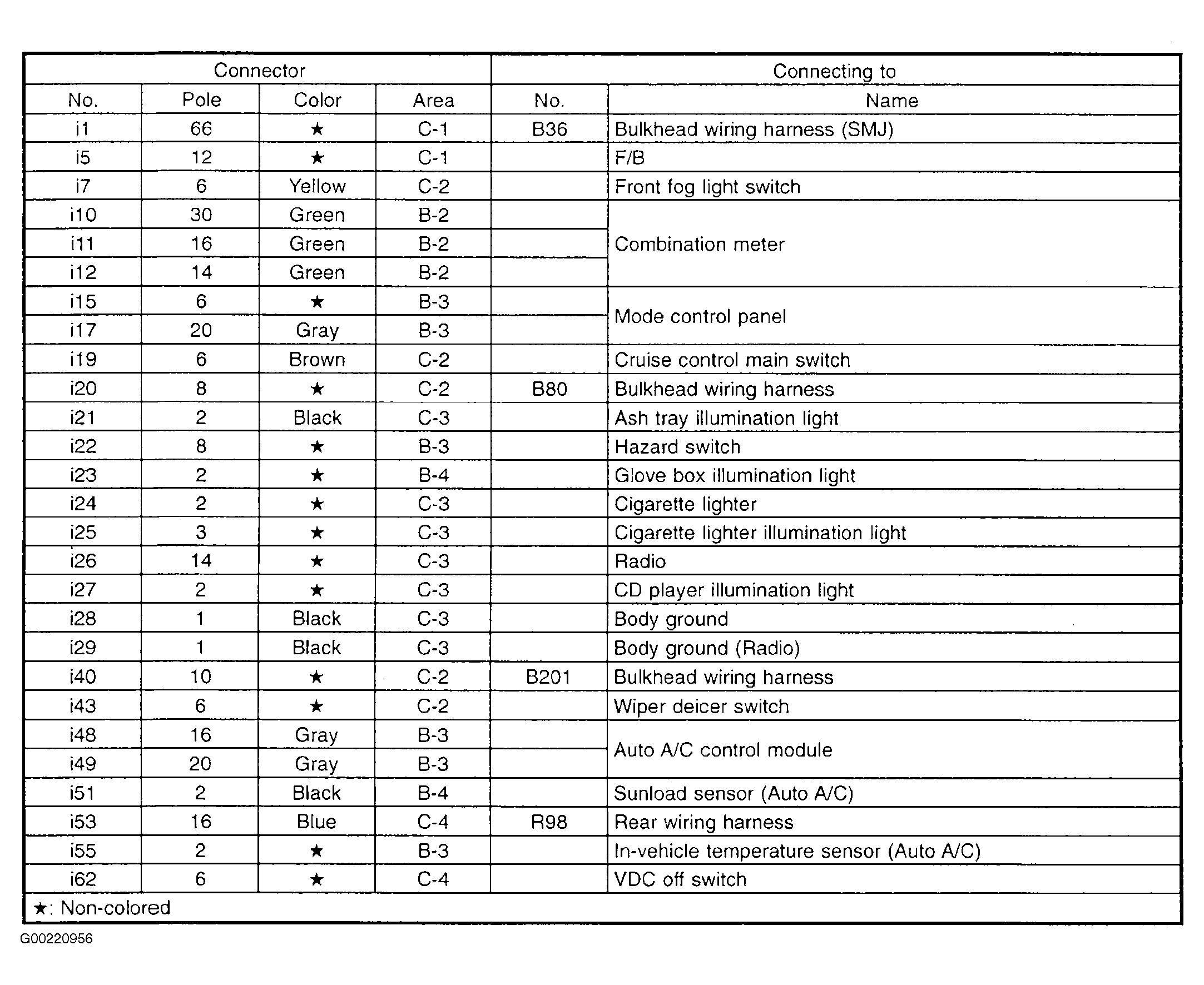

Fig 3: Locating Instrument Panel Wiring Harness - Legend

Courtesy of SUBARU OF AMERICA, INC.

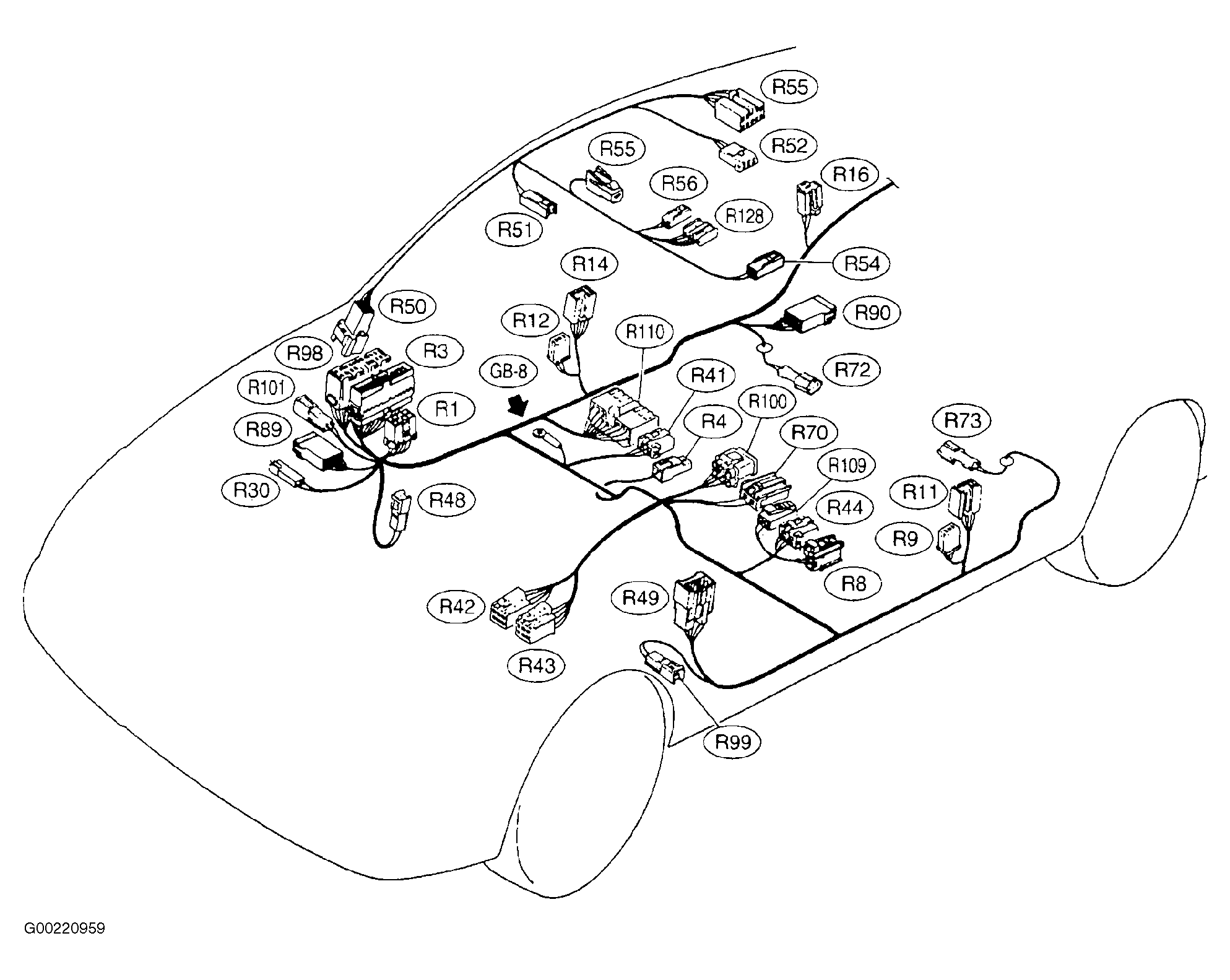

Fig 4: Locating Rear Wiring Harness

Courtesy of SUBARU OF AMERICA, INC.

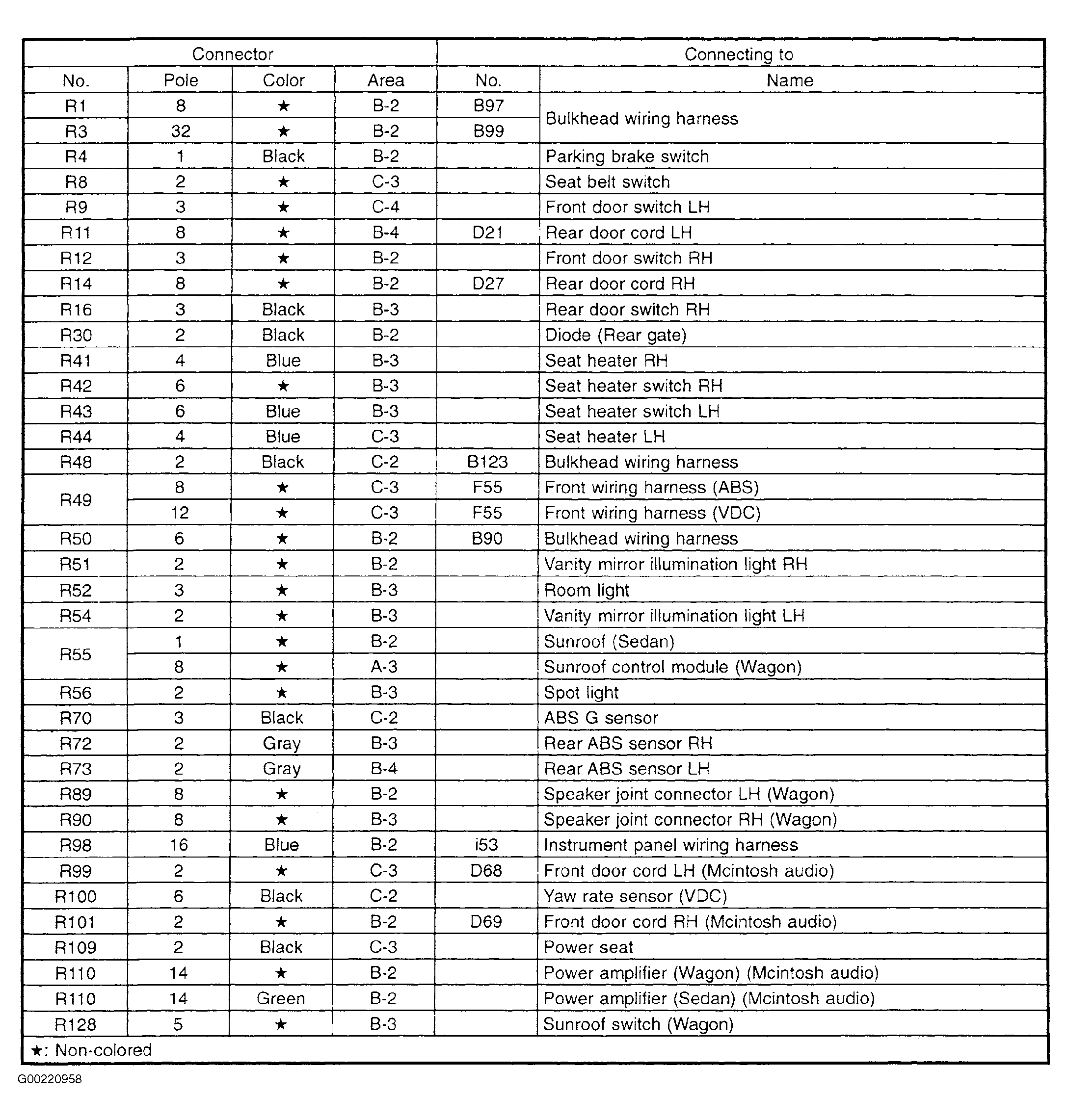

Fig 5: Locating Rear Wiring Harness - Legend

Courtesy of SUBARU OF AMERICA, INC.
