Assembly & Disassembly
CAUTION:
Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
- Disengage claw (F) to remove case (B) from back cover (A).

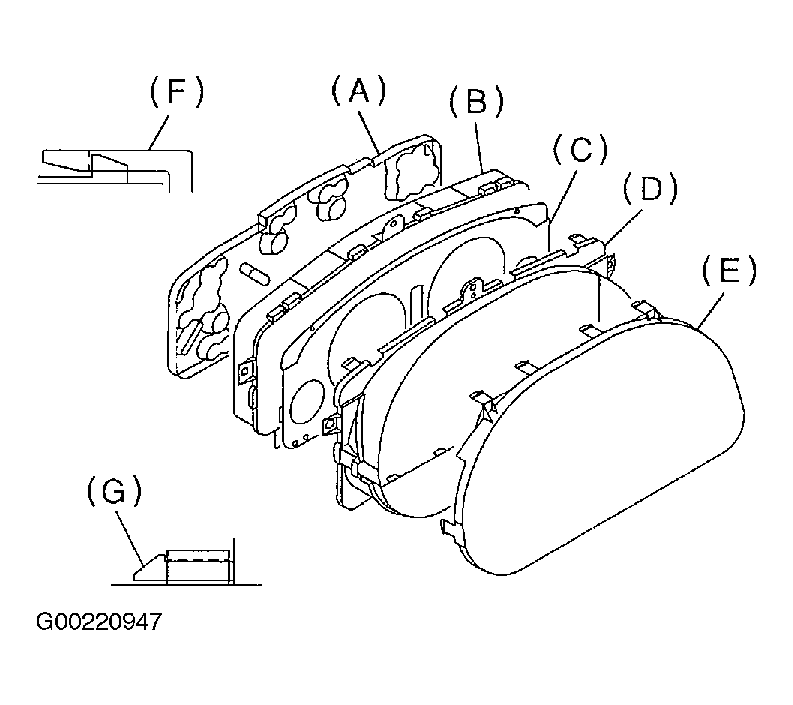

- Disengage claw (G) to remove meter glass (E), reflector (D), and window plate (C) from inner case. See Fig 1 .
- Pull up claw (A) in portion (B) of printed circuit (C) with combination pliers. Push out speedometer assembly (D) and tachometer assembly (E) using hole (F).

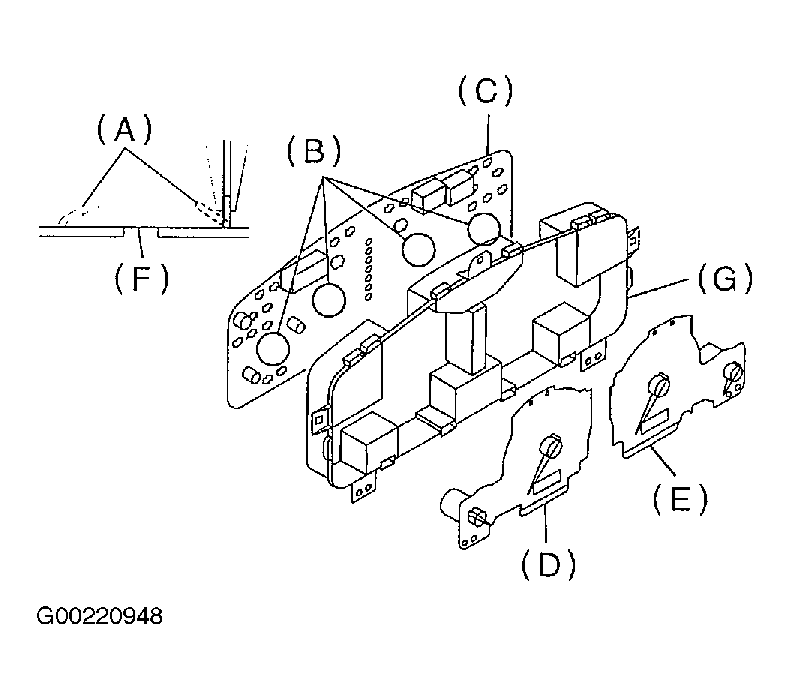

- Pull up claw in the center of printed circuit (C), and remove printed circuit from case (G). See Fig 2 .

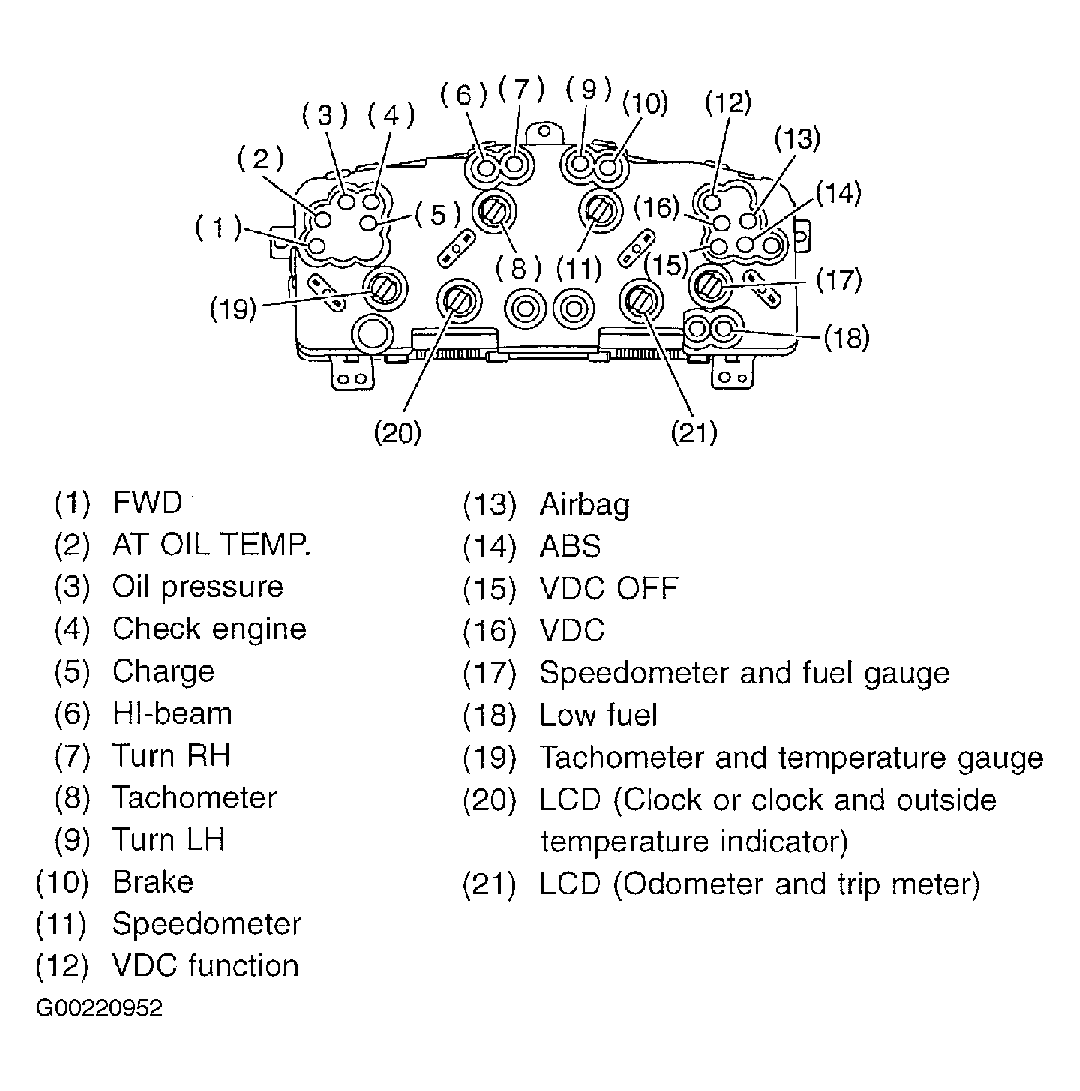

- Refer to Fig 3 to identify the replacement bulb.
- Assemble in reverse order of disassembly procedure.
