Removal (Volvo)

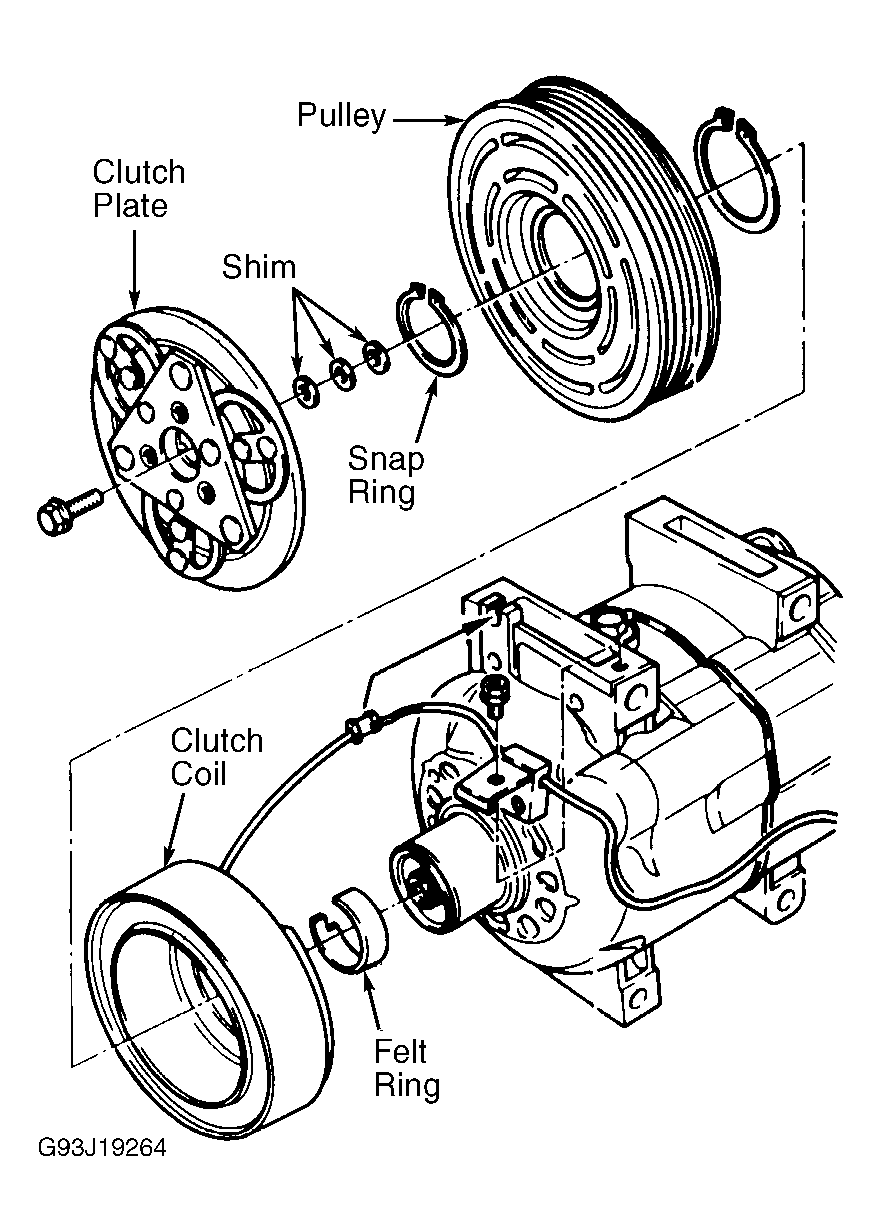

  1. Using Clutch Plate Holder (999-5596-5), hold clutch plate stationary and remove compressor shaft nut. Remove clutch plate and shim(s) using Puller (999-5597-3). Keep shims in the order in which they were removed. See Figure.
  2. Remove pulley snap ring. Using Puller (999-5598-1) and Adapter (999-5599-3 or 999-5618-7), remove pulley. Mark position of clutch coil for installation. Disconnect electrical lead. Remove clutch coil snap ring and clutch coil, as necessary.
