Activating Air Bag System (Civic, CR-V, Odyssey, Prelude & S2000)

1. Ensure ignition is OFF and both battery cables are disconnected. Connect 2-pin driver air bag connector.
2. Connect 2-pin passenger air bag connector. Install glove box. On CR-V and Odyssey, connect both front seat belt pretensioner 2-pin connector to SRS main harness. Install trim panels.
3. Reconnect battery cables. Check SRS indicator light to ensure system is functioning properly. See SYSTEM OPERATION CHECK . Reprogram radio frequencies.

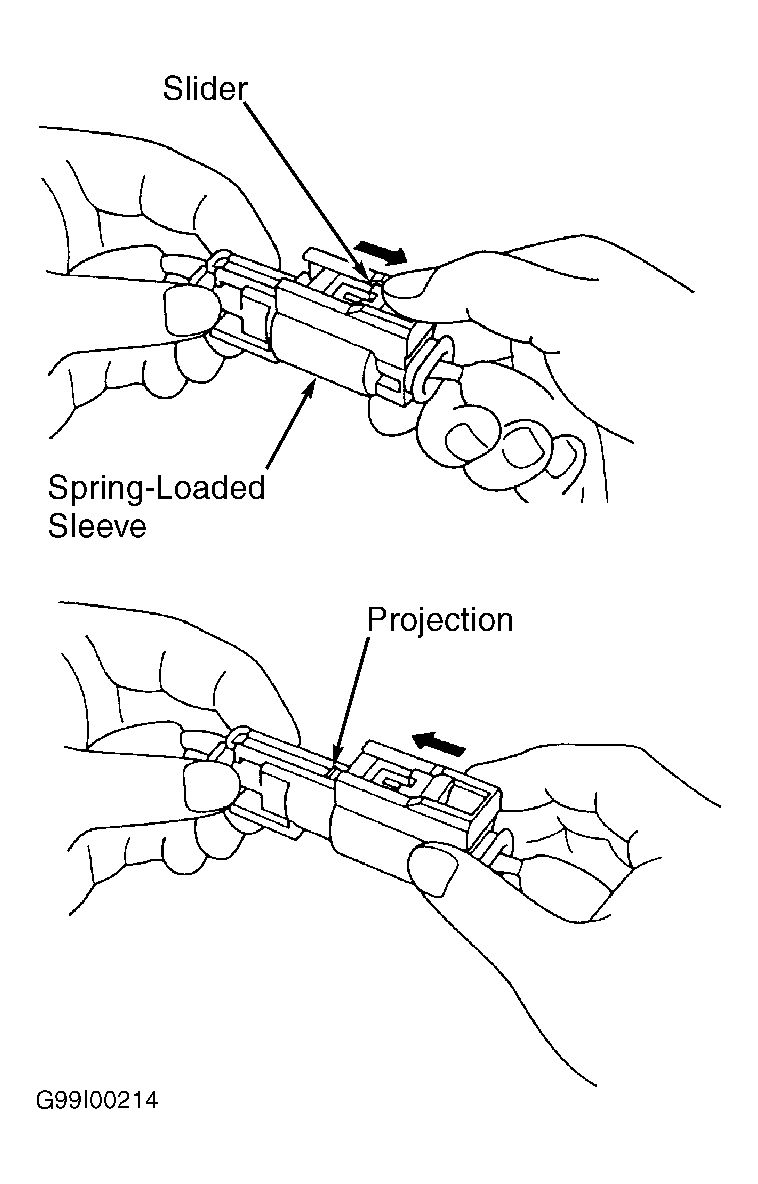

Fig 1: Disconnecting Front Air Bag Spring-Loaded Locking Connector (Honda)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

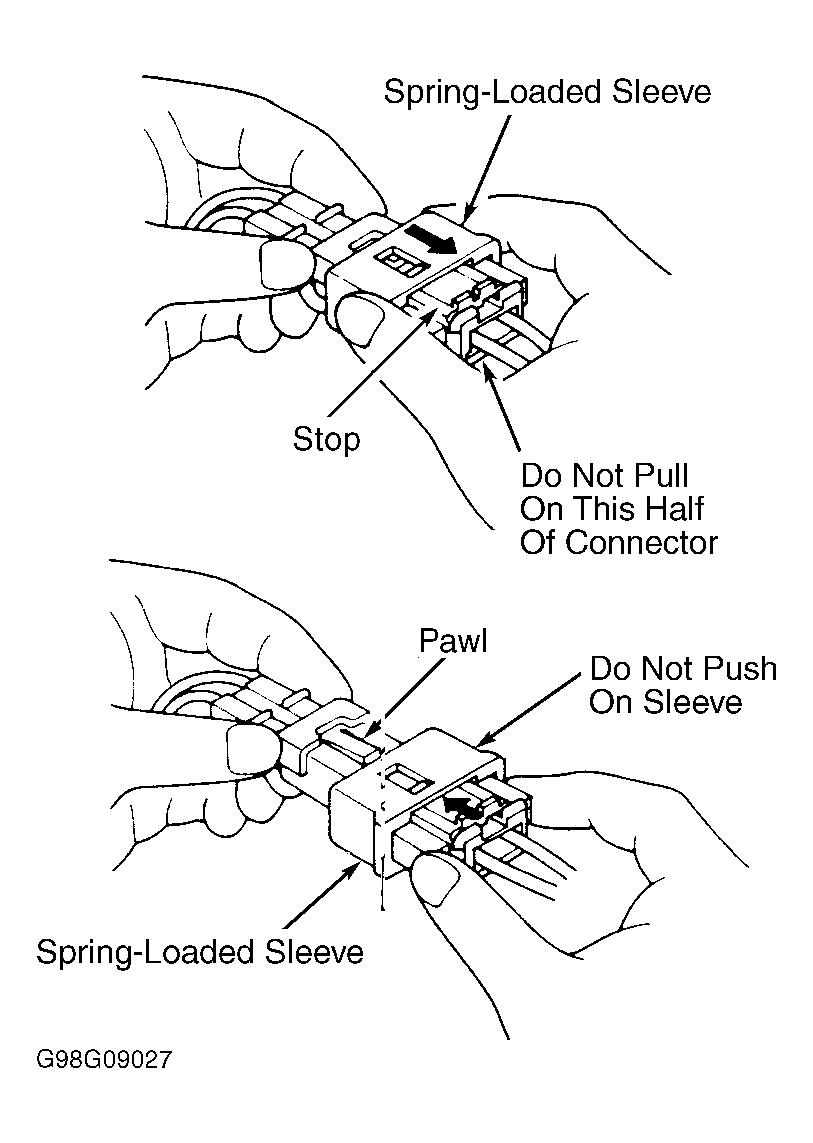

Fig 2: Disconnecting Side Air Bag Spring-Loaded Locking Connector (Honda)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Disabling Driver Air Bag (Honda)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

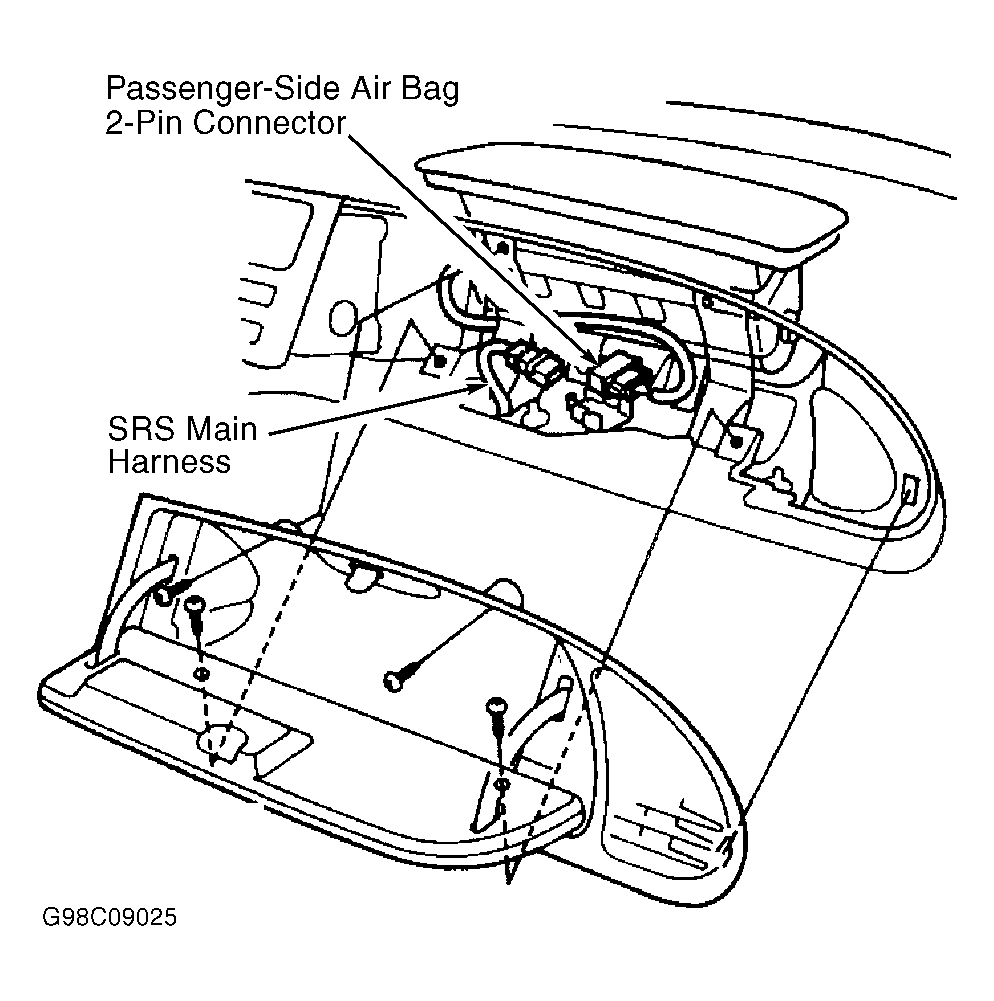

Fig 4: Disabling Passenger Air Bag (Accord)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

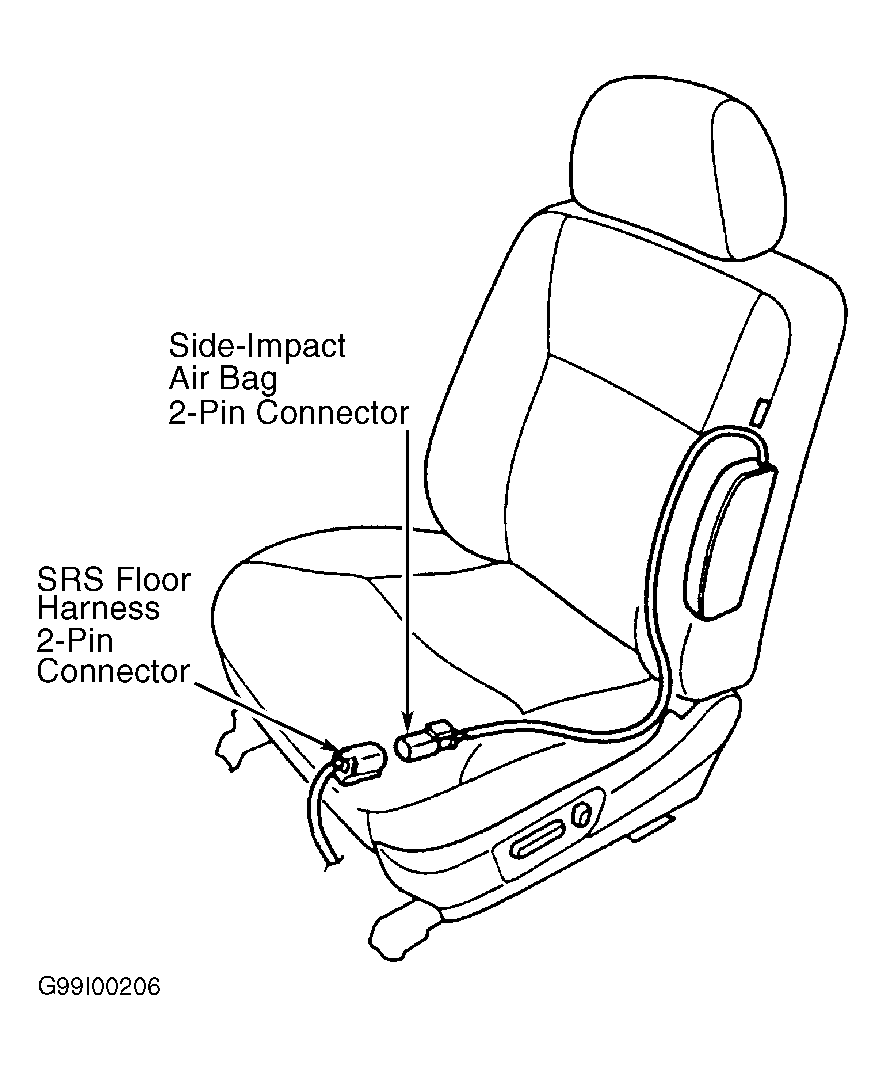

Fig 5: Disabling Side Air Bags (Accord)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

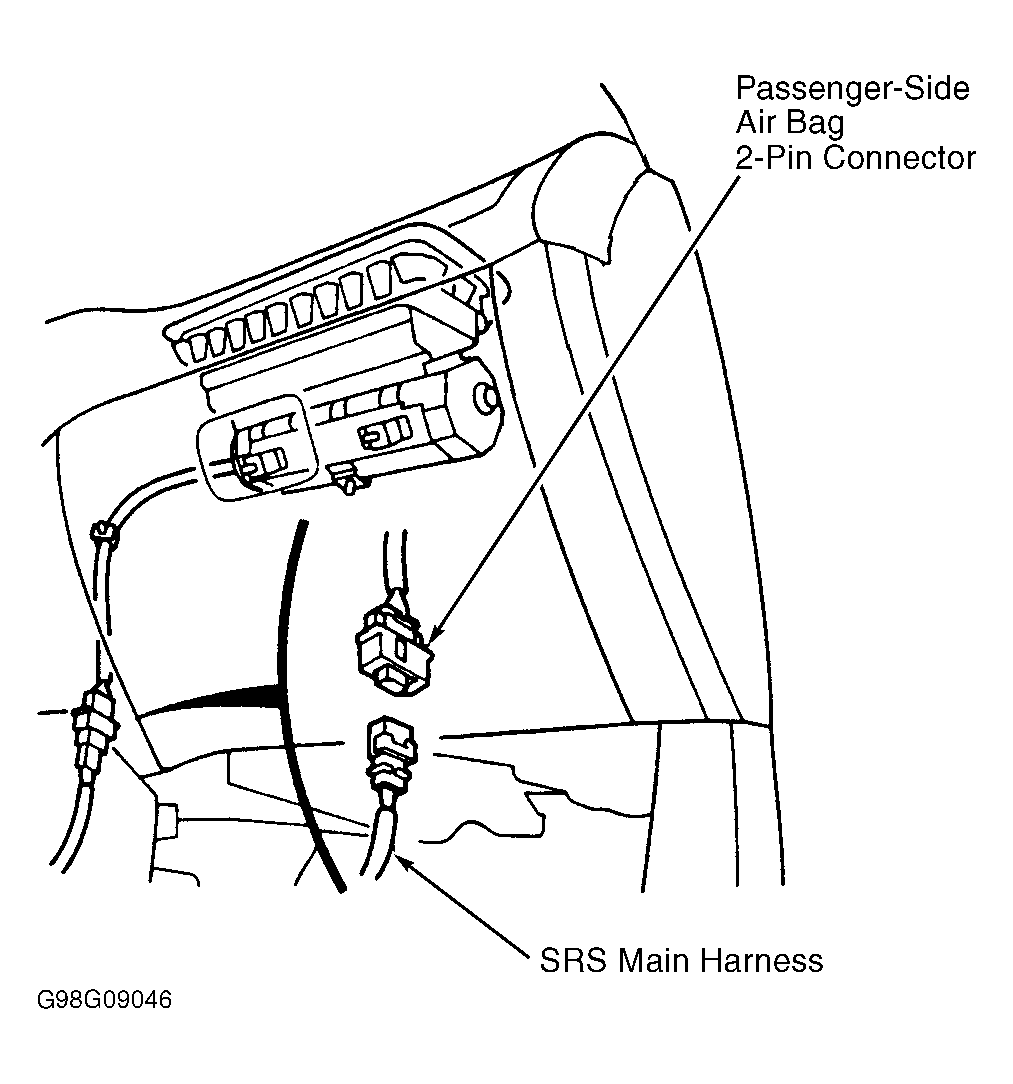

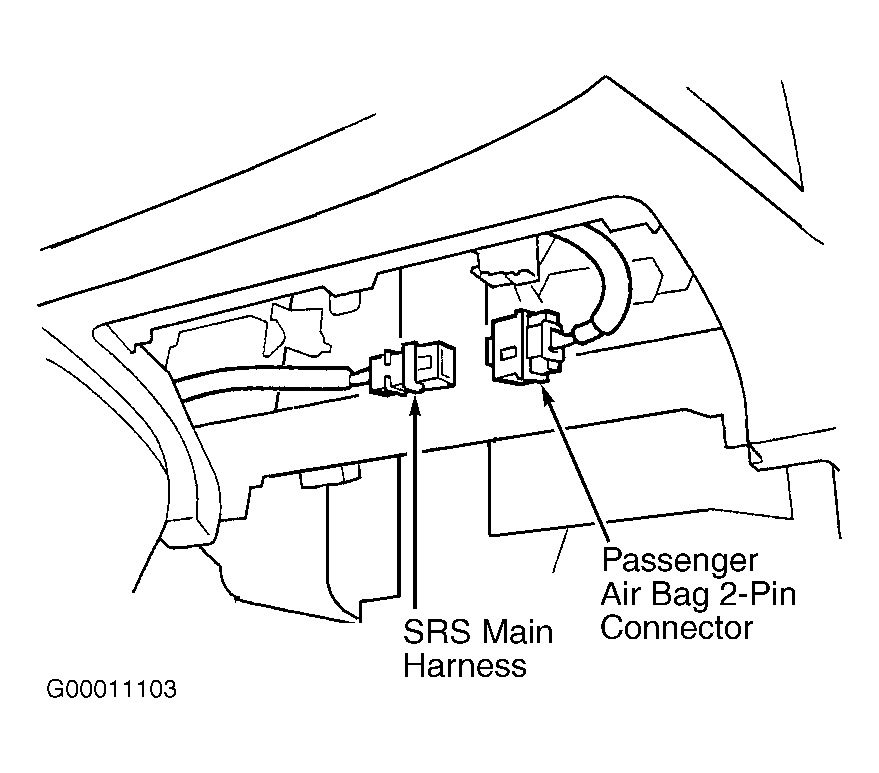

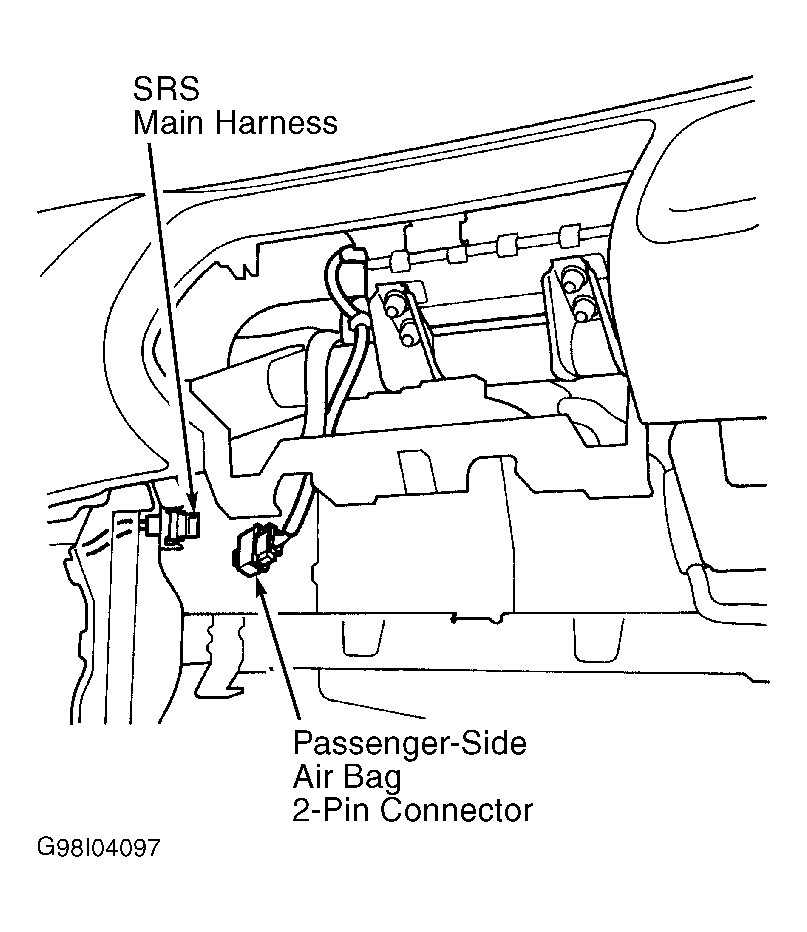

Fig 6: Disabling Passenger Air Bag (Civic & CR-V)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Disabling Passenger Air Bag (Prelude)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

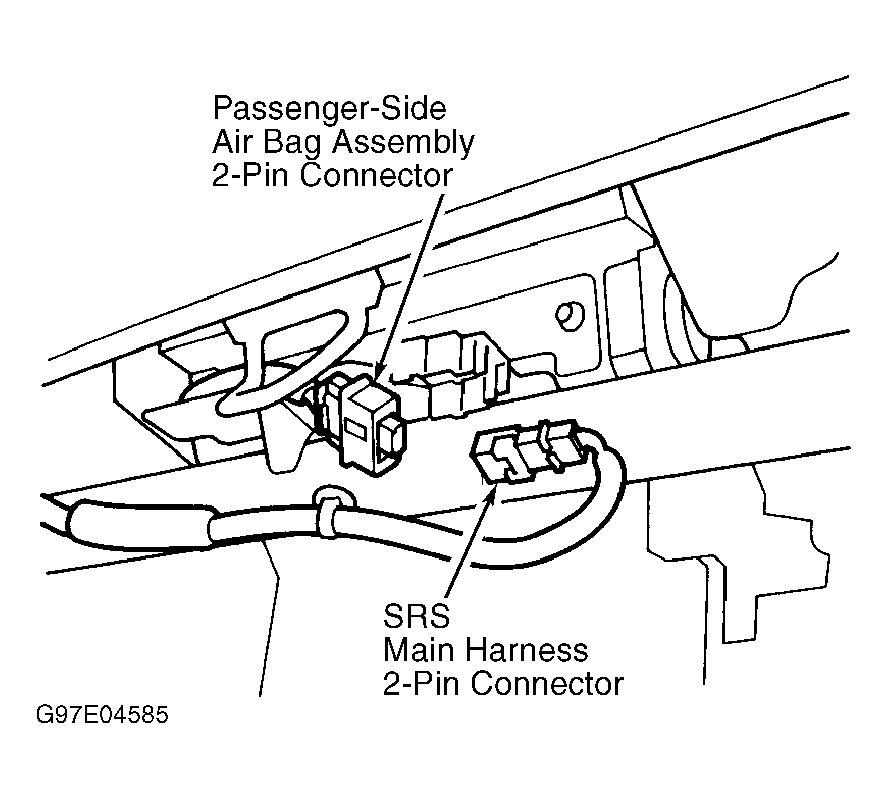

Fig 8: Disabling Passenger Air Bag (Odyssey)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Disabling Passenger Air Bag (S2000)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

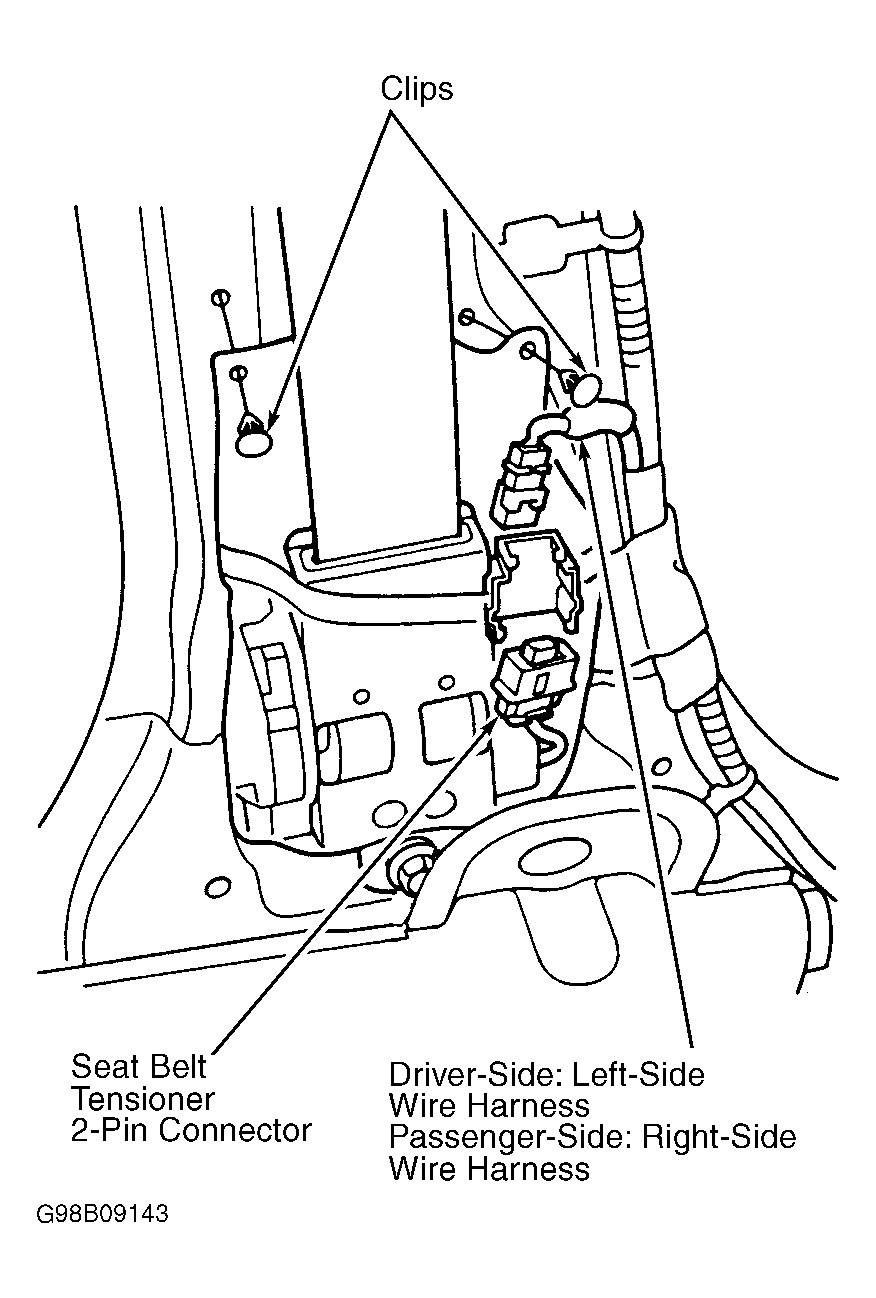

Fig 10: Disabling Seat Belt Pretensioner (CR-V Shown; Odyssey Is Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

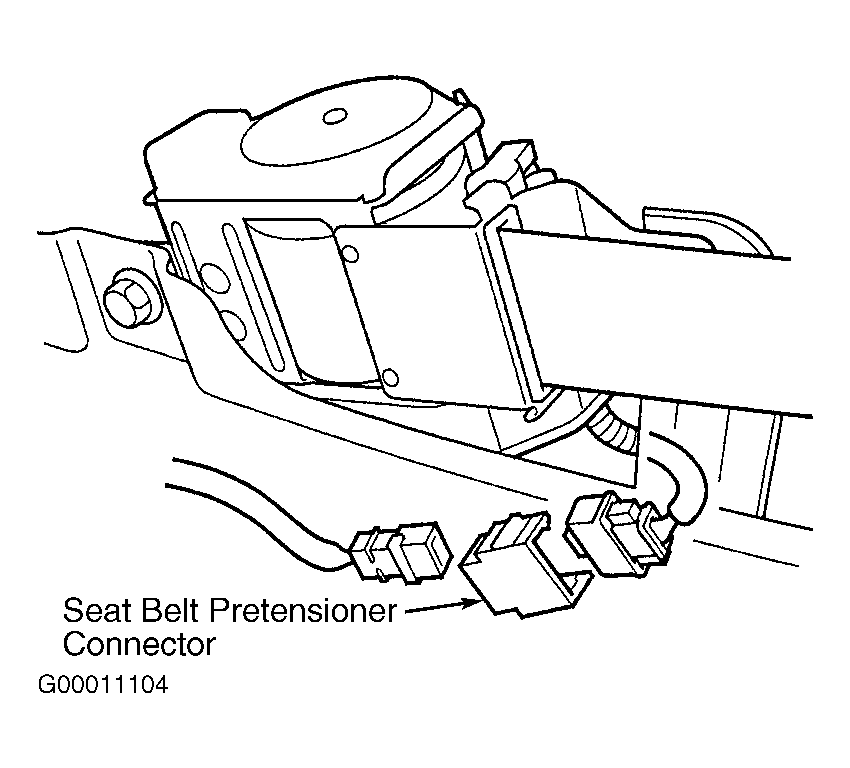

Fig 11: Disabling Seat Belt Pretensioner (S2000)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
