2A12: Checking Harness Between Main Fan Relay Terminal & Main Fan Motor Connector

To check harness between main fan relay terminal and main fan motor connector, see Fig 1 .

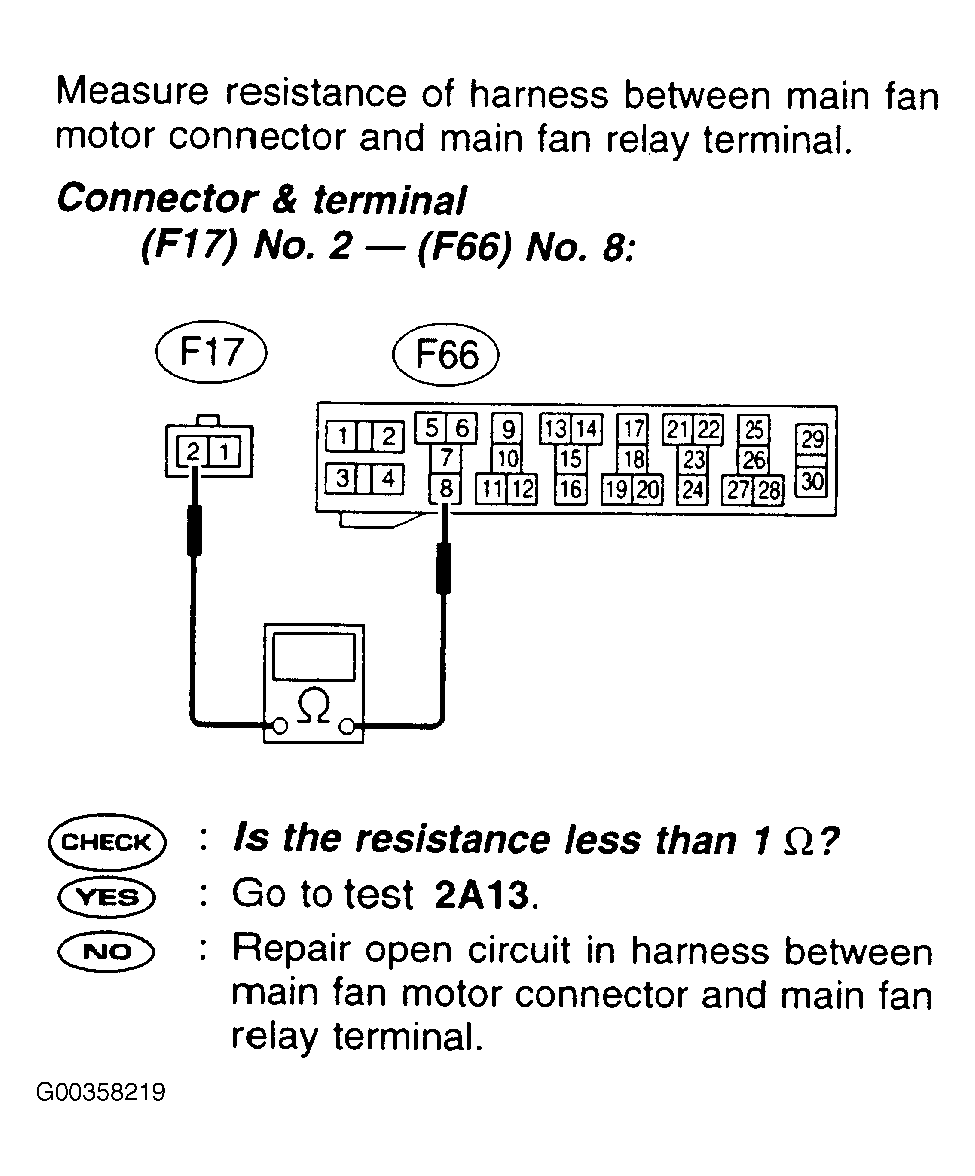

Fig 1: Checking Harness Between Main Fan Relay Terminal & Main Fan Motor Connector

Courtesy of SUBARU OF AMERICA, INC.
