3A5: Checking Power Supply To Sub Fan Relay
3A5: Checking Power Supply To Sub Fan Relay
To check power supply to sub fan relay test, see
Fig 1
.

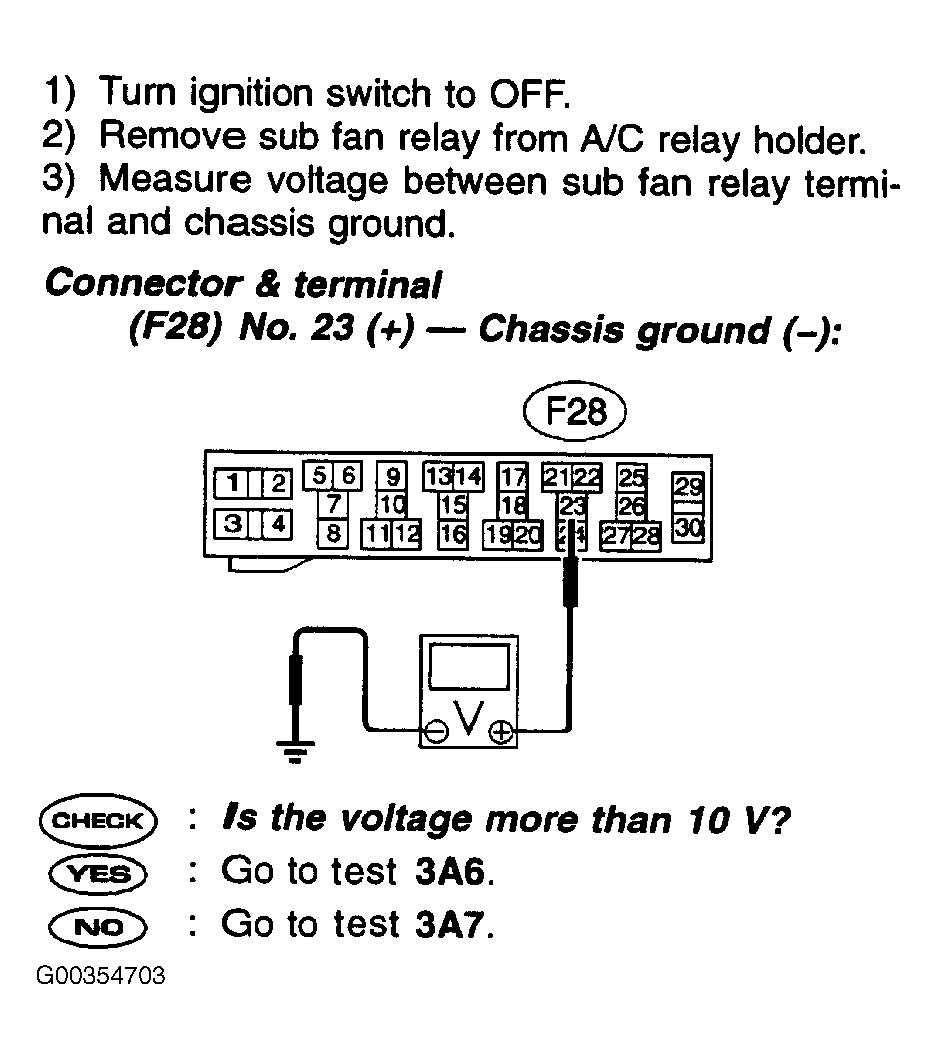

Fig 1: Checking Power Supply To Sub Fan Relay
Courtesy of SUBARU OF AMERICA, INC.
