Engine Mechanical
>>
Cooling Fan
>>
Electric Cooling Fan
>>
Diagnostic Tests (Sub Fan)
>>
3A4: Checking Sub Fan Motor
3A4: Checking Sub Fan Motor
To check sub fan motor test, see
Fig 1
.

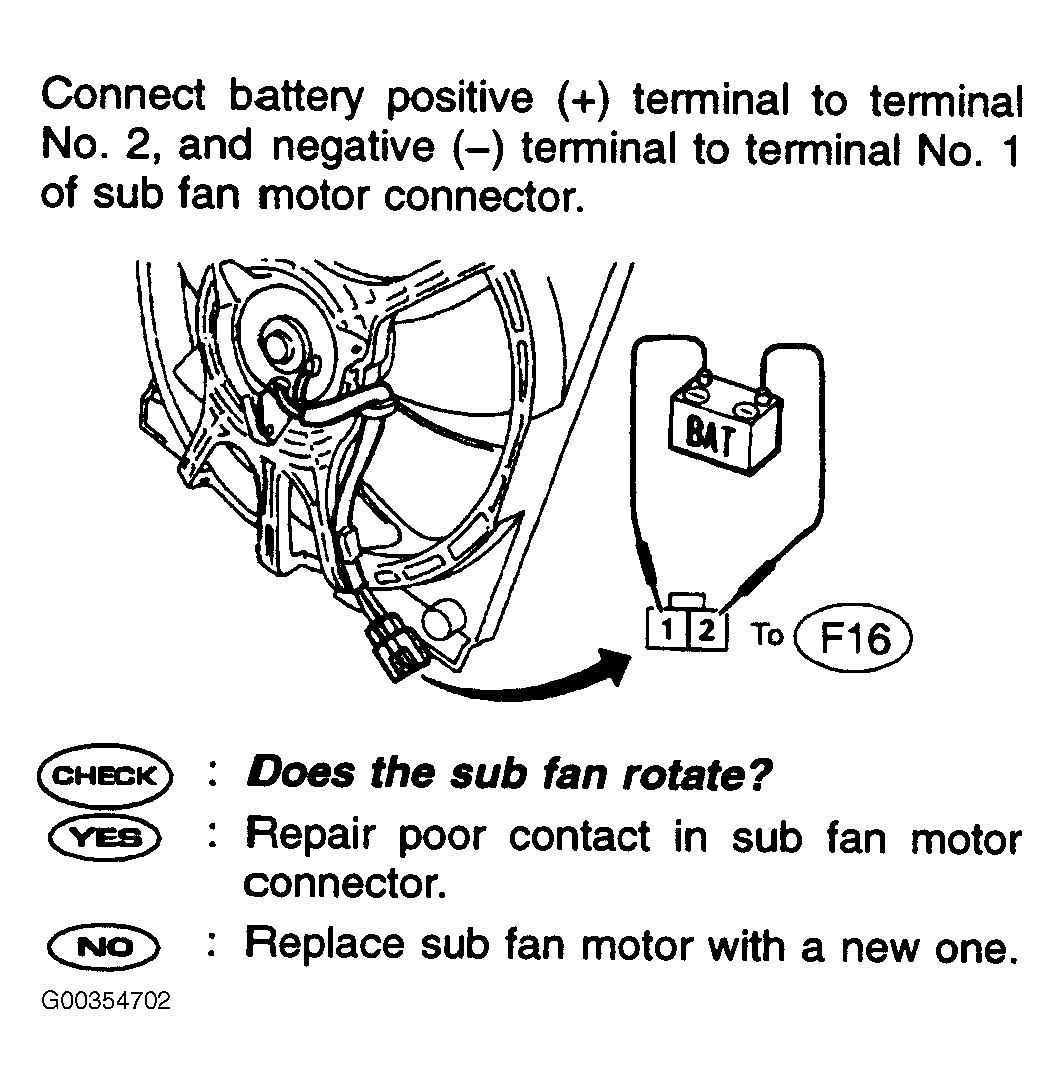

Fig 1: Checking Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
