3A2: Checking Ground Circuit Of Sub Fan Motor

To check ground circuit of sub fan motor test, see Fig 1 .

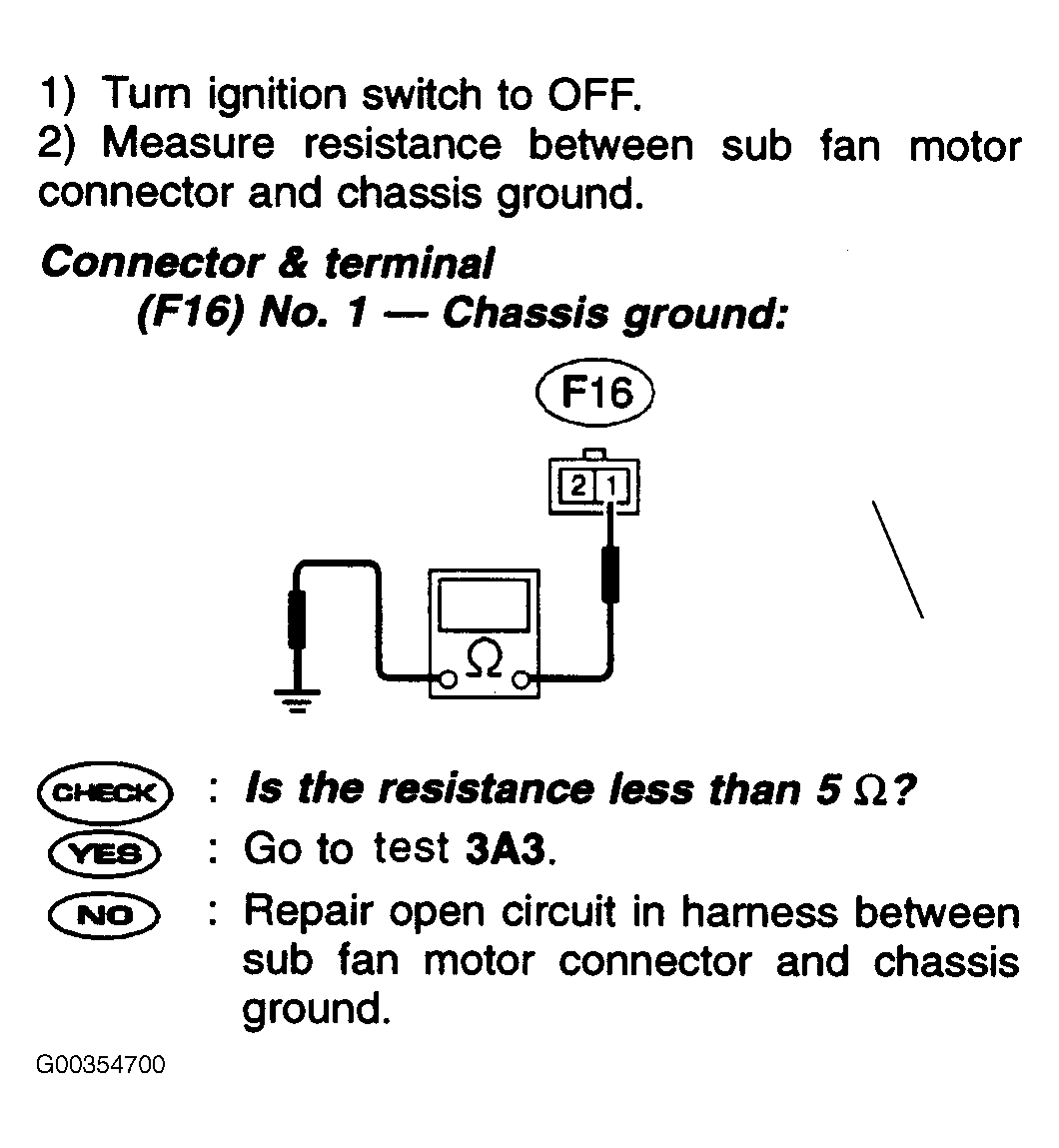

Fig 1: Checking Ground Circuit Of Sub Fan Motor
G00354700Courtesy of SUBARU OF AMERICA, INC.
