3A12: Checking Harness Between Sub Fan Relay Terminal And Sub Fan Motor Connector

To check harness between sub fan relay terminal and sub fan motor connector, see Fig 1 .

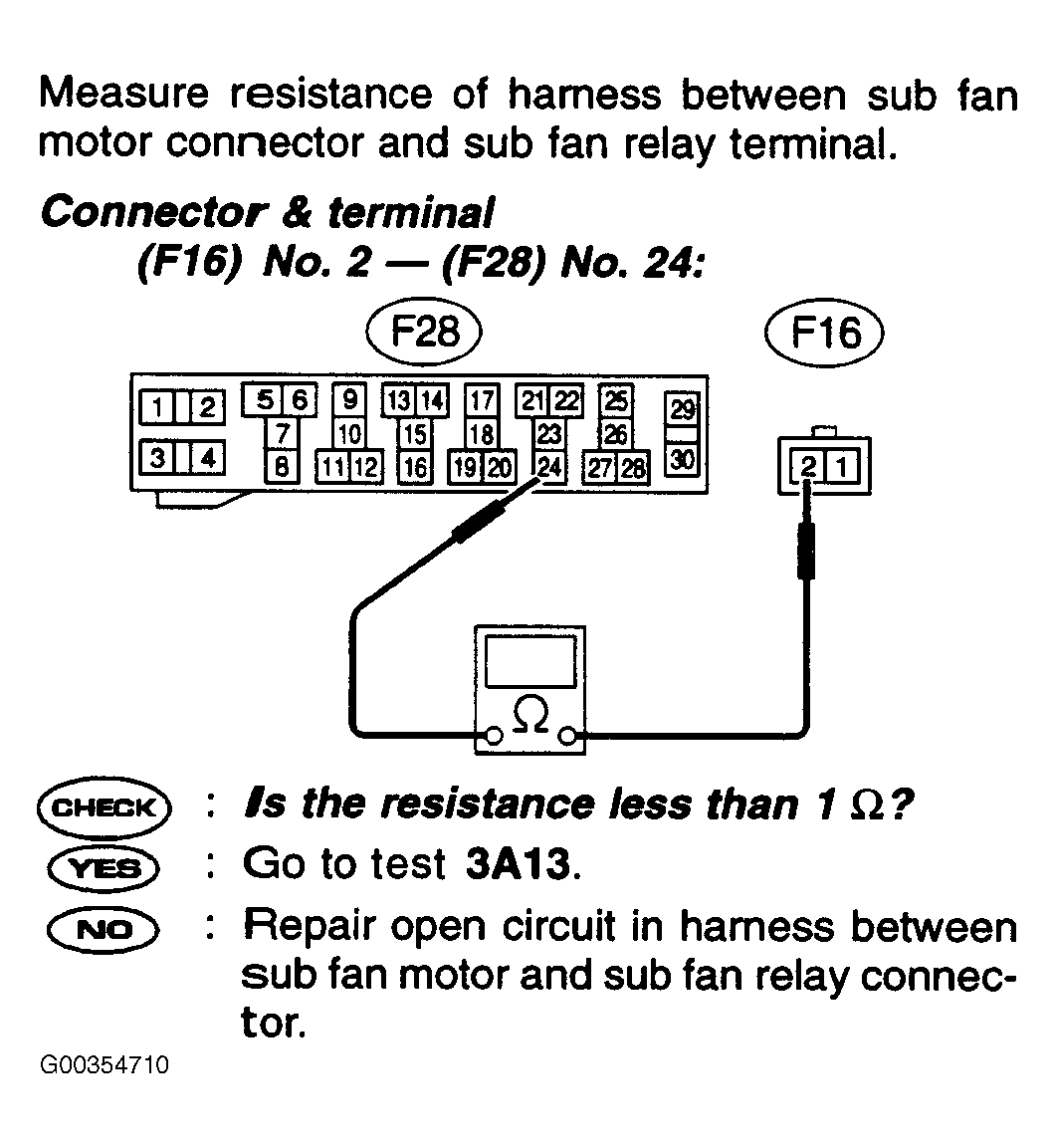

Fig 1: Checking Harness Between Sub Fan Relay Terminal & Motor Connector
G00354710Courtesy of SUBARU OF AMERICA, INC.
