2A6: Checking Power Supply To Main Fan Relay
2A6: Checking Power Supply To Main Fan Relay
To check power supply to main fan relay test, see
Fig 1
.

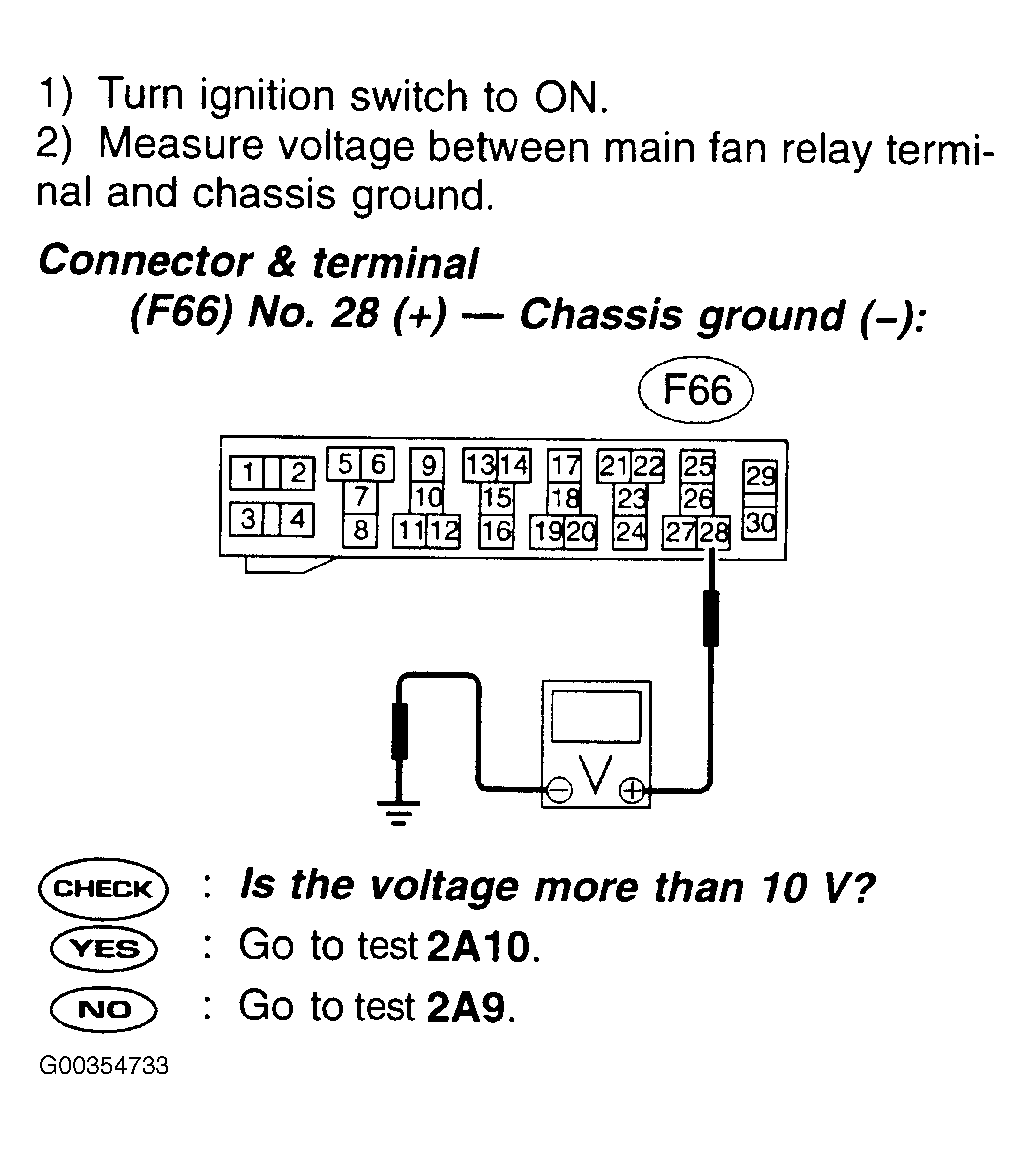

Fig 1: Checking Power Supply To Fan Relay
Courtesy of SUBARU OF AMERICA, INC.
