2A2: Checking Ground Circuit Of Main Fan Motor

To check ground circuit of main fan motor test, see Fig 1 .

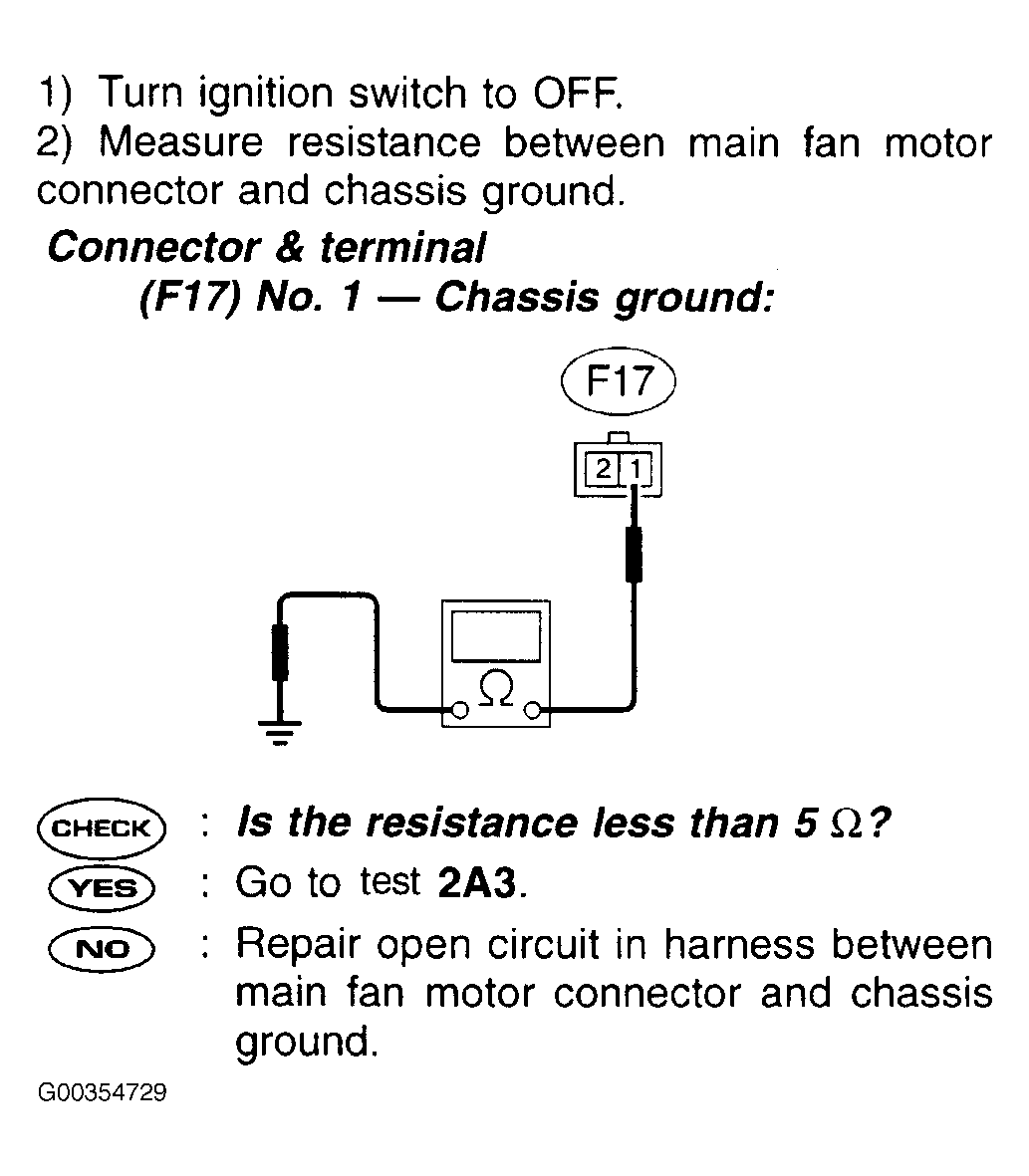

Fig 1: Checking Ground Circuit Of Main Fan Motor
G00354729Courtesy of SUBARU OF AMERICA, INC.
