249: Checking Fuse

To check fuse, see Fig 1 .

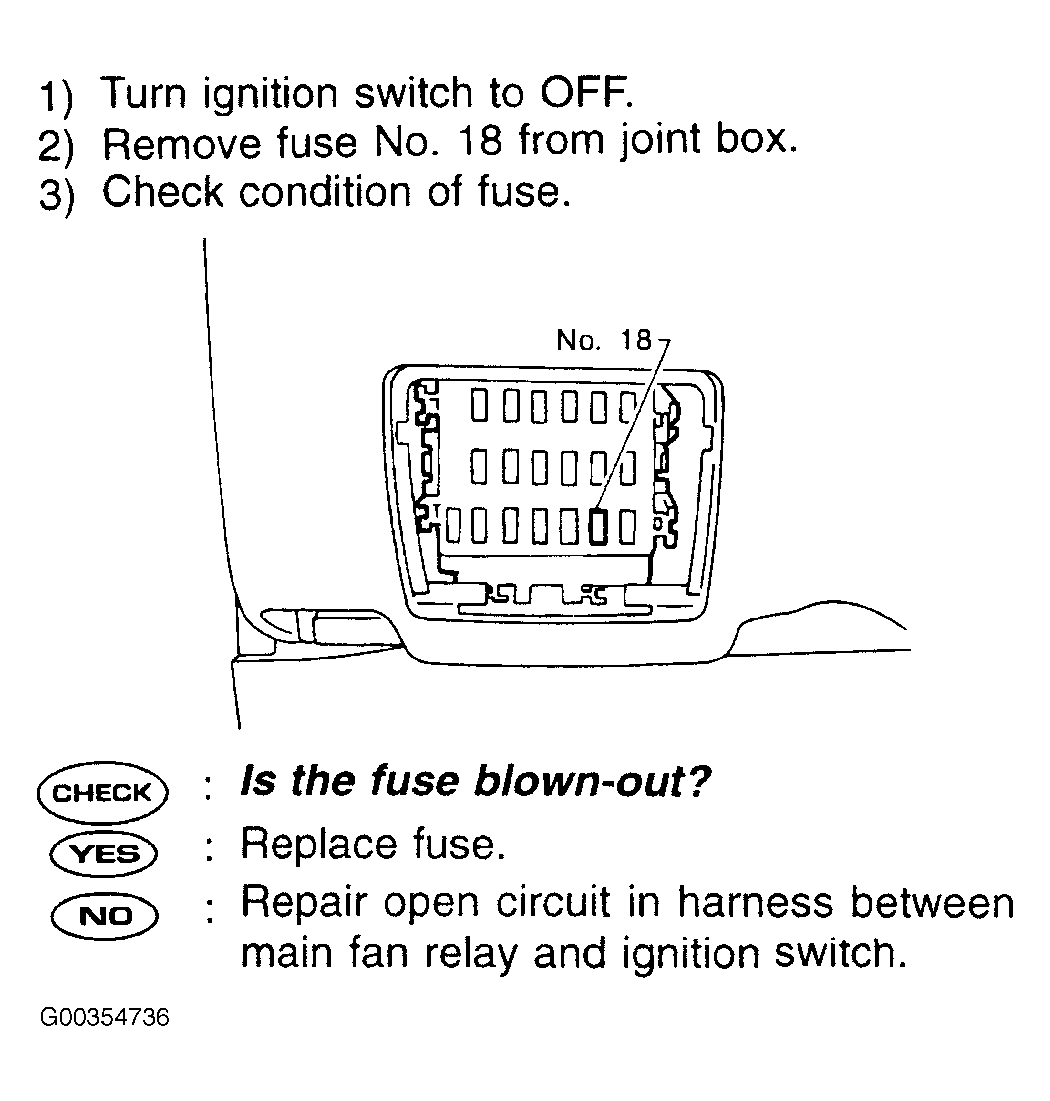

Fig 1: Checking Fuse

G00354736

Courtesy of SUBARU OF AMERICA, INC.
