Disc & Drum: Overhaul

NOTE: Use illustrations for exploded views of front and rear disc brake calipers and master cylinder. See Fig 1 -Fig 4 .

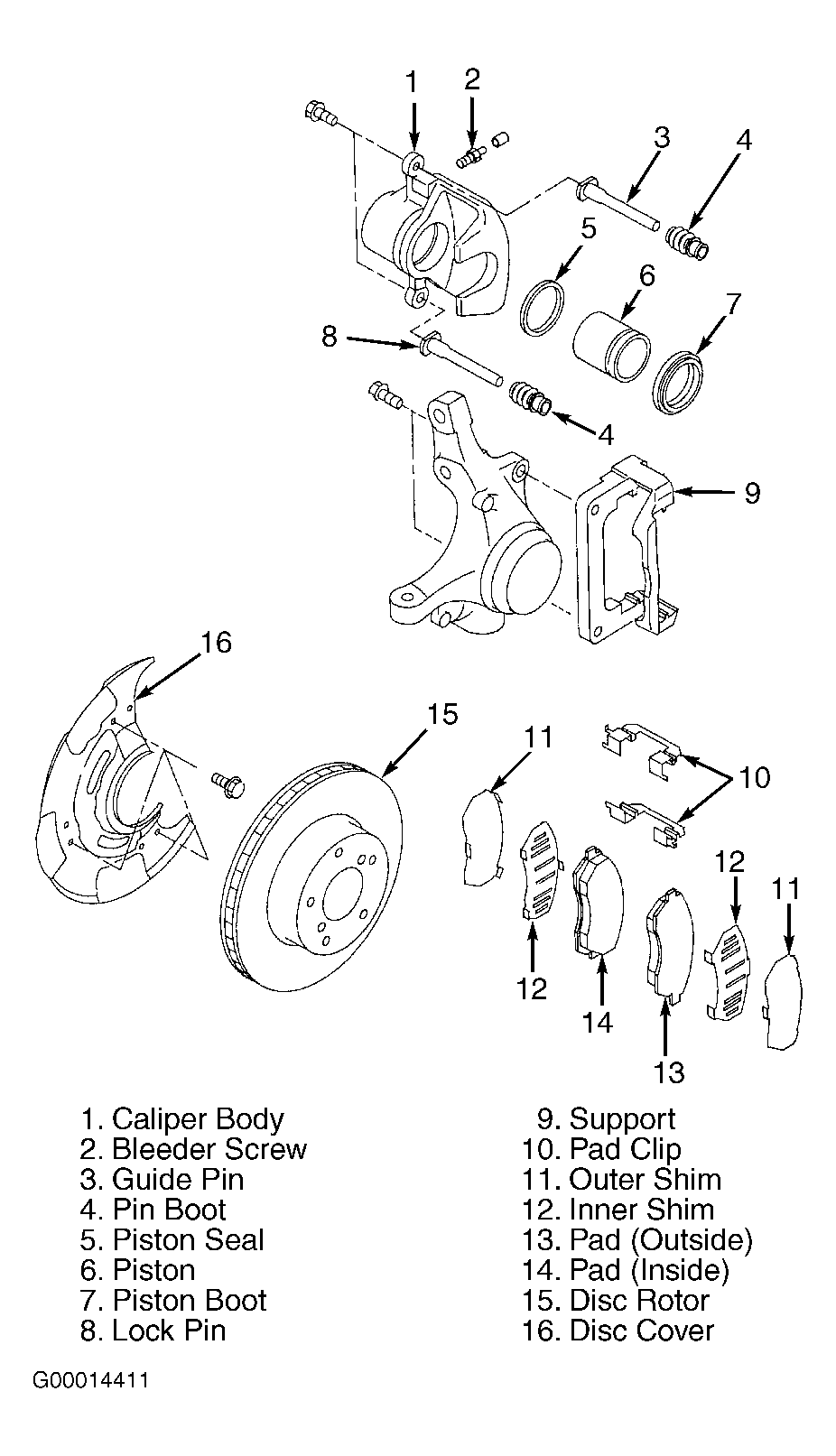

Fig 1: Identifying Front Caliper Components (Legacy & Impreza - Single Piston)

Courtesy of SUBARU OF AMERICA, INC.

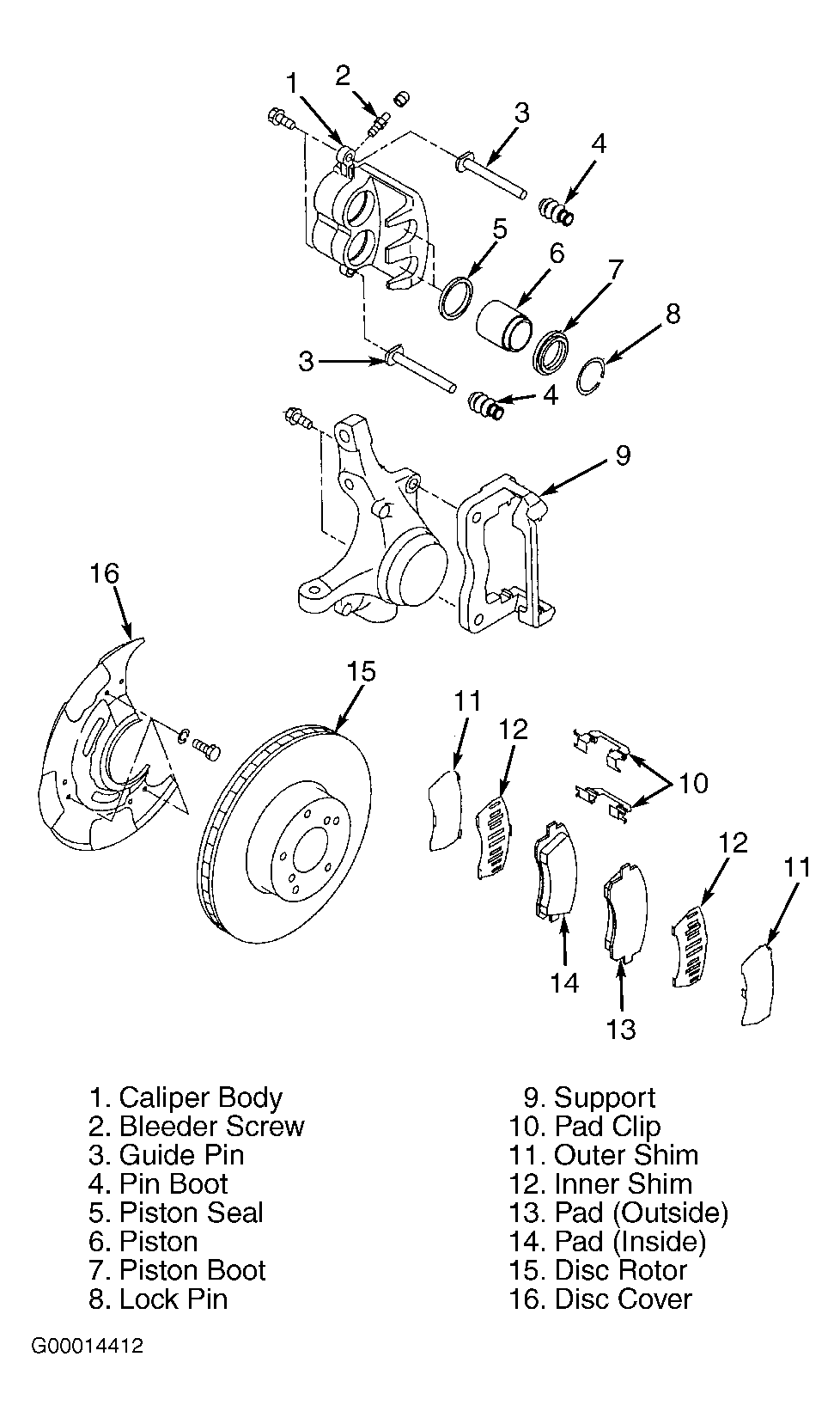

Fig 2: Identifying Front Caliper Components (Dual Piston)

Courtesy of SUBARU OF AMERICA, INC.

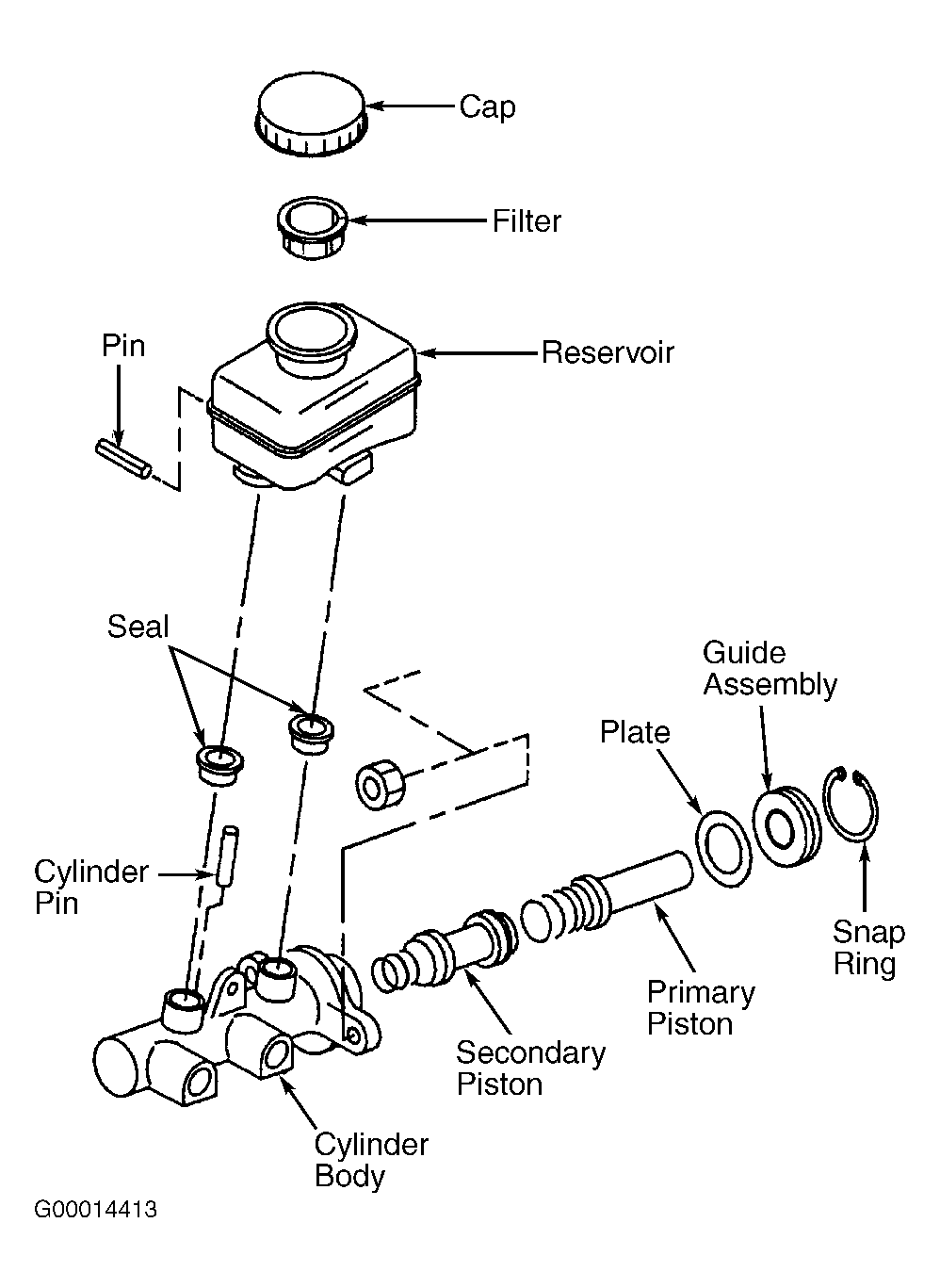

Fig 3: Exploded View Of Master Cylinder (Impreza With ABS)

Courtesy of SUBARU OF AMERICA, INC.

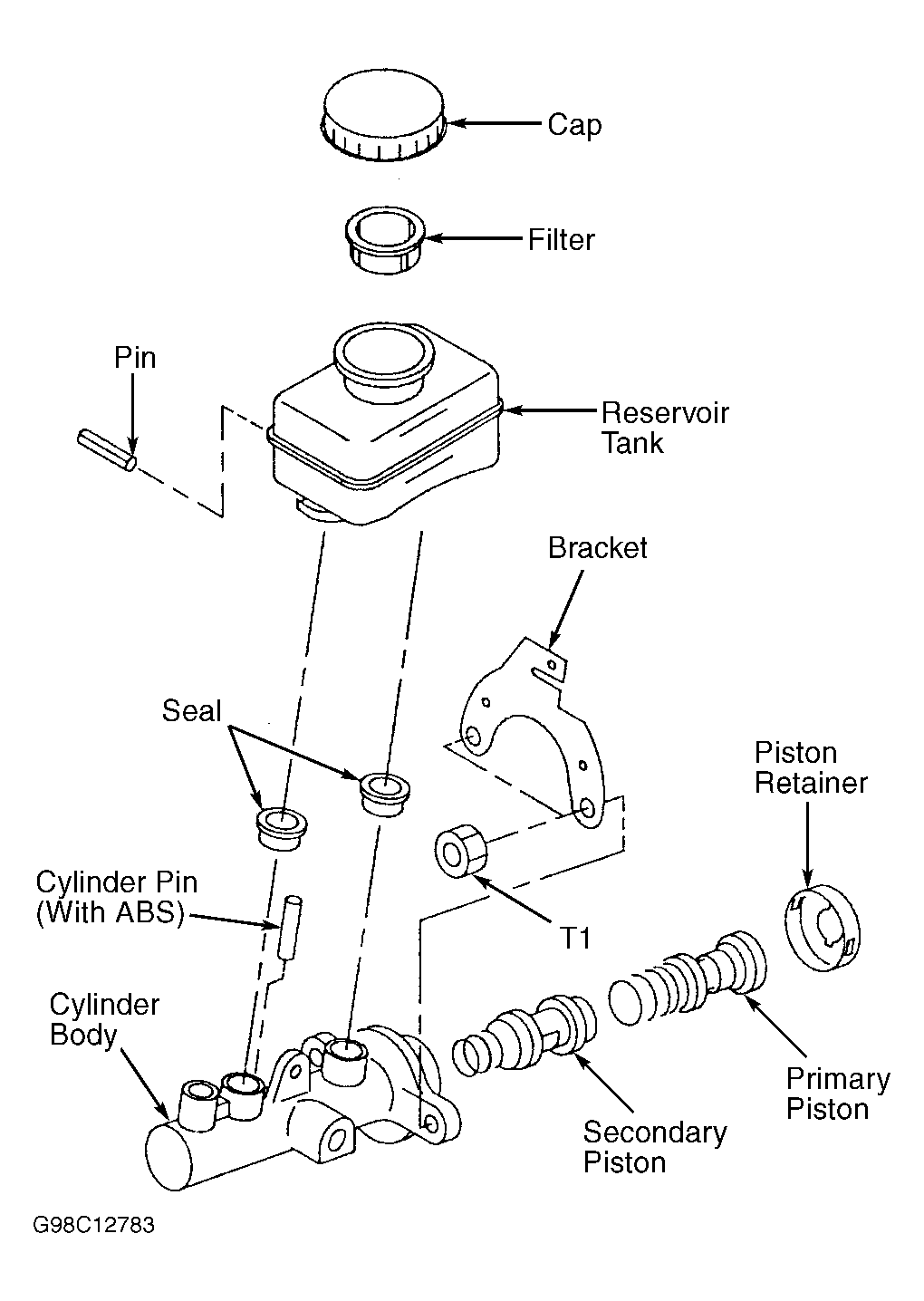

Fig 4: Exploded View Of Master Cylinder (Except Impreza Without ABS)

Courtesy of SUBARU OF AMERICA, INC.
