Master Cylinder Push Rod

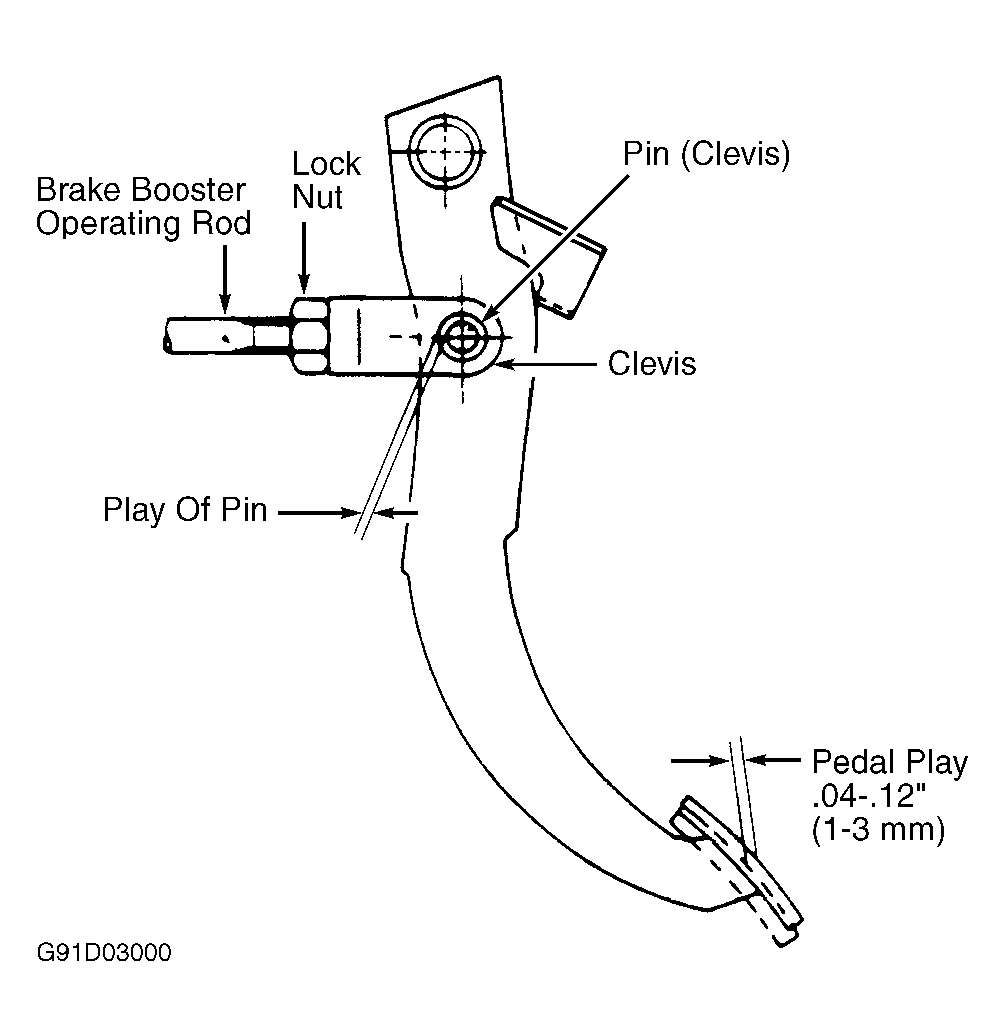

With engine off (no vacuum to booster), free play should exist between operating rod clevis pin and brake pedal. See Figure . If free play does not exist, loosen operating rod lock nut and adjust free play. Pedal free play should be 0.04-0.12" (1.0-3.0 mm).
