Entering Self-Diagnostics

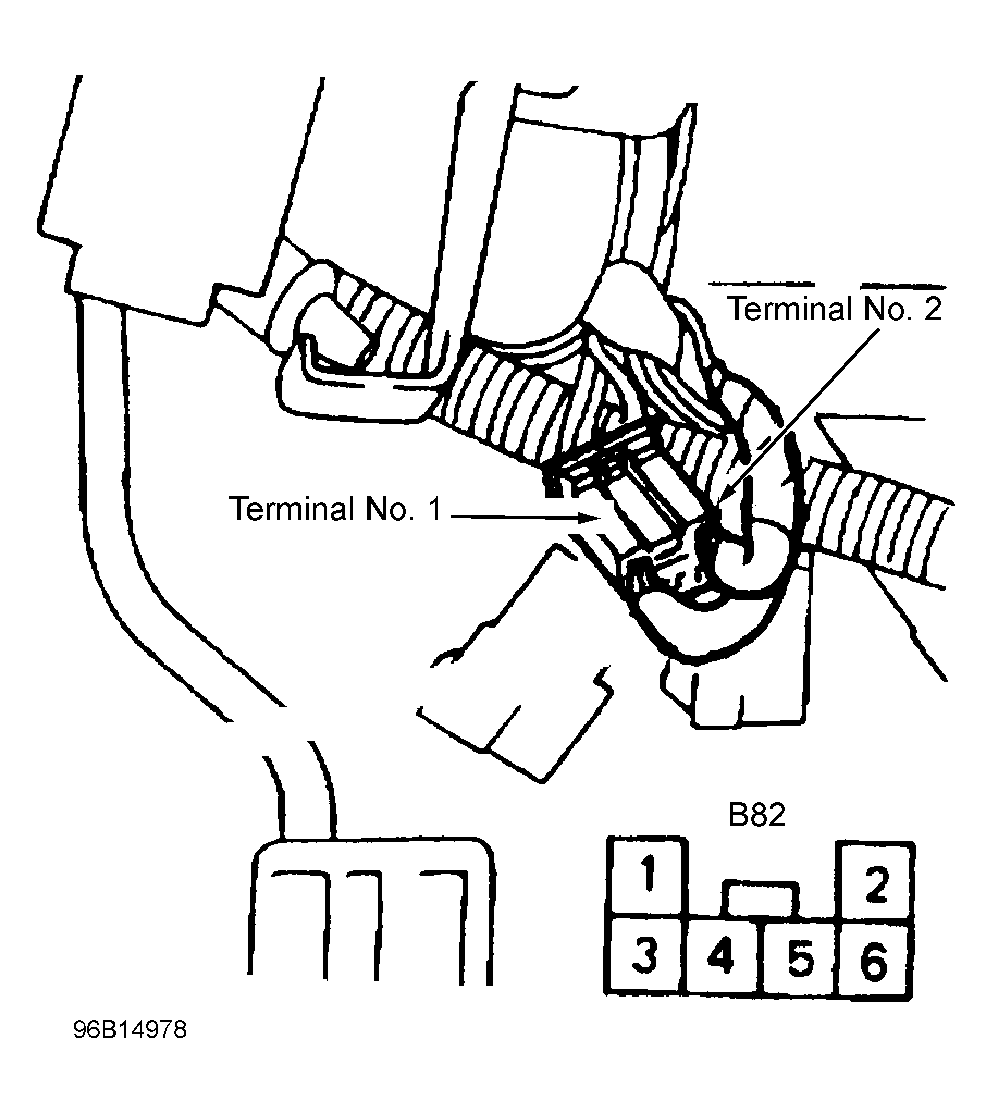

- Turn ignition switch to ON position. Connect one diagnostic terminal to terminal No. 1 of diagnostic connector. Diagnostic connector is located below lower instrument cover panel (near console). See Fig 1
.
Courtesy of SUBARU OF AMERICA, INC.
- Read diagnostic codes by noting number of AIR BAG warning light flashes. A long flash (1.2 seconds) indicates a 10, and a short flash (0.3 second) indicates a one. For example, a long flash followed by 2 short flashes would indicate Code 12. Code will be displayed 3 times, with a 1.5-second pause between codes. Read and record codes. Turn ignition off, remove diagnostic terminal, and perform appropriate test. See AIR BAG CODE IDENTIFICATION
table.
AIR BAG CODE IDENTIFICATION
| Code |
Malfunction |
| 04 |
Main Wiring Harness Shorted Air Bag Module Harness Shorted Air Bag Module Defective |
| 11 |
Air Bag Control Unit Defective Passenger-Side Air Bag Main Wiring Harness Open Fuse No. 8 Defective Body Wiring Harness Open |
| 12 |
Air Bag Main Wiring Harness Open Driver-Side Air Bag Module Wiring Harness Open Clockspring Circuit Open Air Bag Control Unit Defective |
| 13 |
Air Bag Main Wiring Harness Shorted Driver-Side Air Bag Module Wiring Harness Shorted Clockspring Circuit Shorted Air Bag Control Unit Defective |
| 14 |
Poor Connector Contact At Control Unit Or Air Bag Module |
| 21 |
Air Bag Control Unit Defective |
| 22 |
Air Bag Main Harness Open Passenger-Side Air Bag Module Harness Open Air Bag Control Unit Defective |
| 31 |
Air Bag Control Unit Defective Driver-Side Air Bag Main Harness Open Body Wiring Harness Open |
| 33 |
Air Bag Module Deployed |
| 34 |
Air Bag Main Wiring Harness Shorted Passenger-Side Air Bag Module Wiring Harness Shorted Air Bag Module Defective |
| 41 |
Air Bag Main Wiring Harness Shorted Driver-Side Air Bag Module Wiring Harness Shorted Air Bag Module Defective |
| 42 |
Air Bag Main Wiring Harness Shorted Passenger-Side Air Bag Module Wiring Harness Shorted Air Bag Module Defective |
| 43 |
Air Bag Main Wiring Harness Shorted Driver-Side Air Bag Module Wiring Harness Shorted Air Bag Module Defective |
| AIR BAG Warning Light Stays On |
Air BAG Warning Light Defective Wiring Harness Shorted Or Open Ground Circuit Defective Air Bag Control Unit Defective Bad Connection At Air Bag Main Harness To Body Harness |
| AIR BAG Warning Light Stays Off |
Fuse No. 15 Defective Body Wiring Harness Open AIR BAG Warning Light Defective Air Bag Main Wiring Harness Defective Air Bag Control Unit Defective |
| AIR BAG Warning Light Displays Fault Code, Then Normal Code (Displaying Fault Code) |
SRS Component Defective |
| AIR BAG Warning Light Displays Fault Code, Then Normal Code (Displaying Normal Code) |
Fuse No. 16 Defective Air Bag Main Wiring Harness Defective Air Bag Control Unit Defective Body Wiring Harness Defective |
