Subaru
>>
1997
>>
Legacy Outback Limited, Automatic
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Electric Cooling Fan
>>
Diagnostic Tests (Main Fan W/Out A/C)
>>
Test 6: Checking Main Fan Motor
Test 6: Checking Main Fan Motor
To check main fan motor, see
Fig 1
.

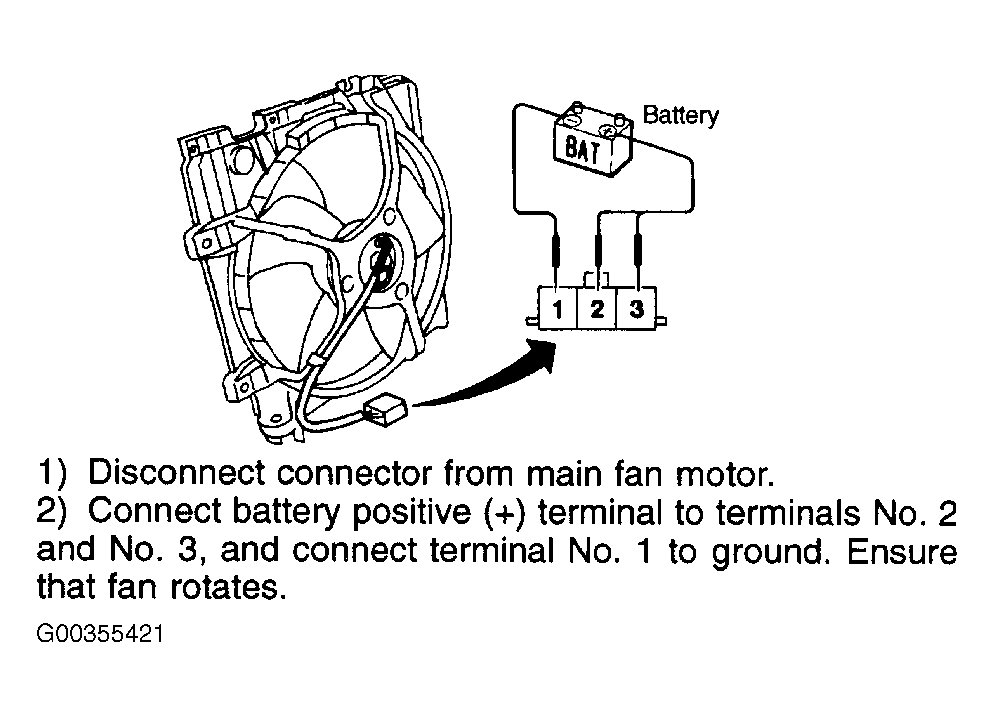

Fig 1: Checking Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
