Test 4: Checking Harness Connector Between A/C Relay Holder & Main Fan Motor
Test 4: Checking Harness Connector Between A/C Relay Holder & Main Fan Motor
To check harness connector between A/C relay holder and main fan motor, see
Fig 1
.

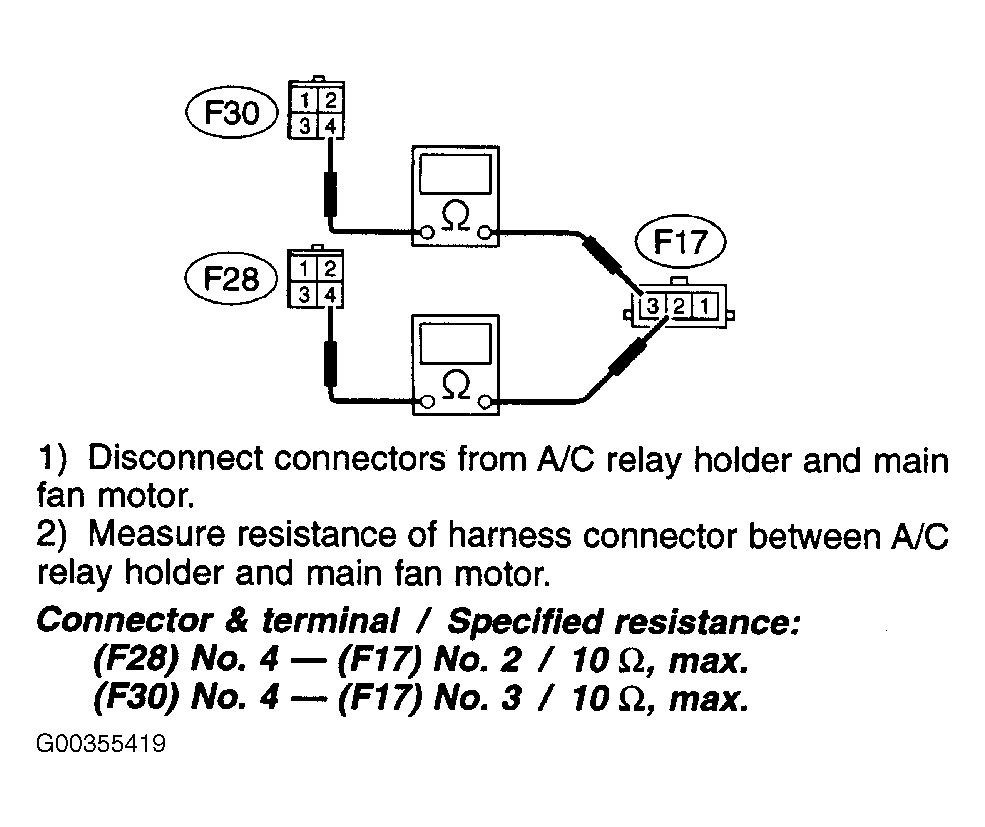

Fig 1: Checking Harness Connector Between A/C Relay Holder & Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
