Test 3: Checking A/C Relay Holder

To check A/C relay holder, see Fig 1 .

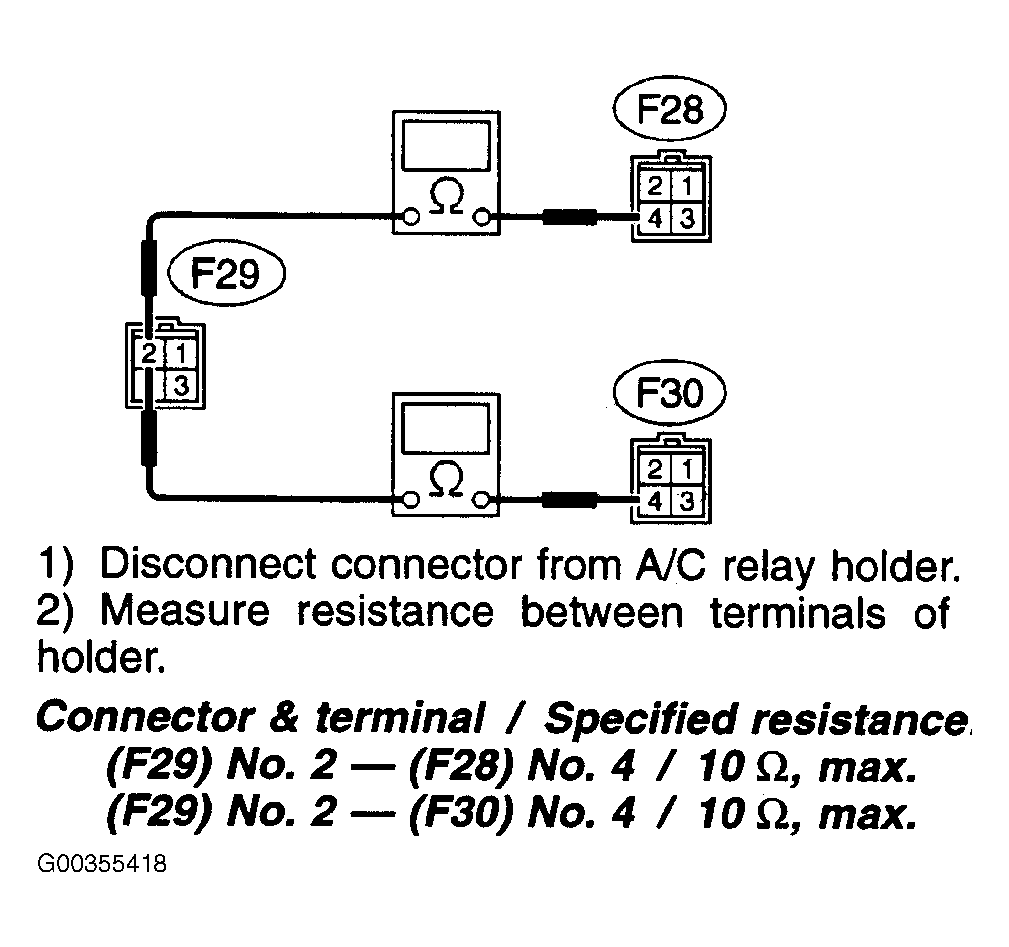

Fig 1: Checking A/C Relay Holder

G00355418

Courtesy of SUBARU OF AMERICA, INC.
