Test 2: Checking Harness Connector Between Fuse & Relay Box & A/C Relay Holder

To check harness connector between fuse and relay box, and A/C relay holder, see Fig 1 .

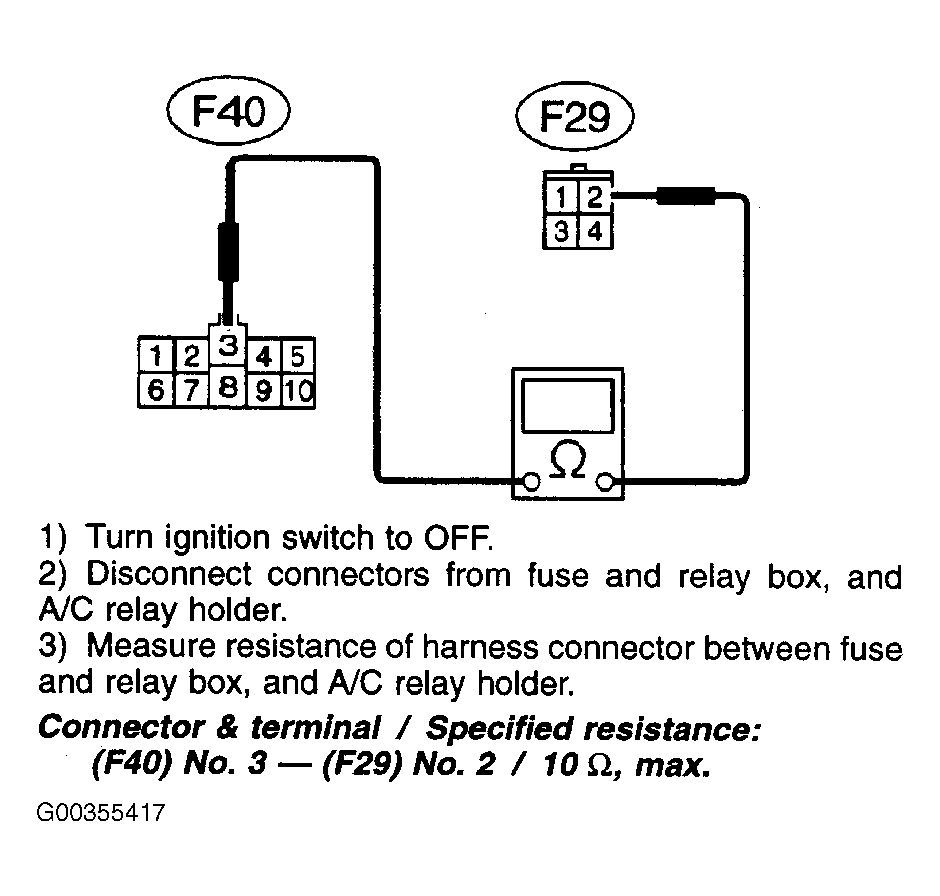

Fig 1: Checking Harness Connector Between Fuse & Relay Box & A/C Relay Holder

Courtesy of SUBARU OF AMERICA, INC.
